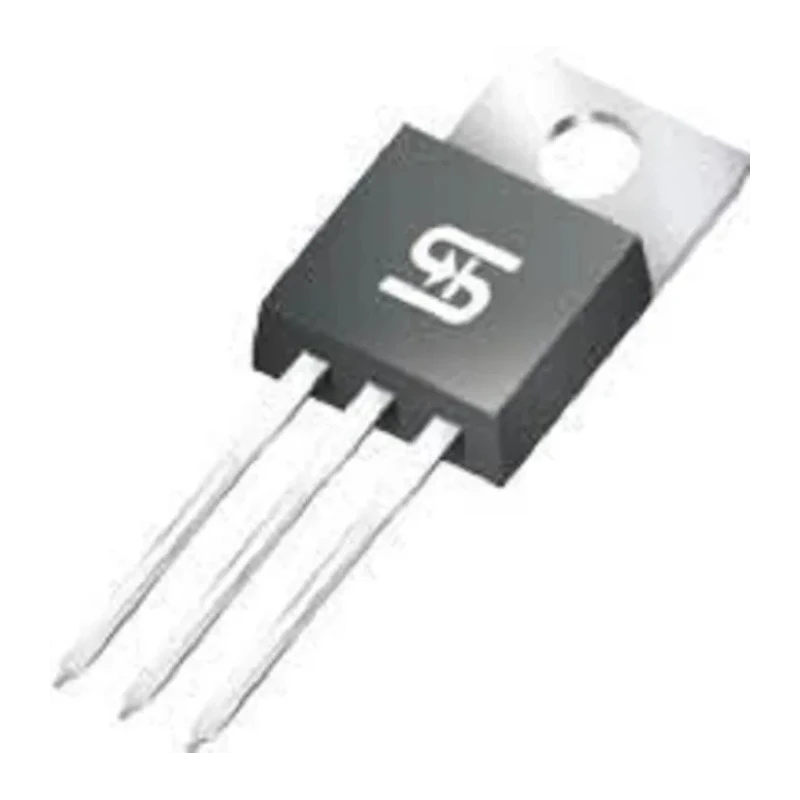

Taiwan Semiconductor 200 V 30 A Rectifier & Schottky Diode TO-220AB TST30H200CW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Model | TST30H200CW |
| Mount Type | Through Hole |
| Series | TST30L100CW _C2104 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AB |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 30A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Dual Dies |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.98V |
Key Features
- Features trench Schottky technology for low forward voltage and high efficiency.
- Comes in a TO-220AB package type suitable for through-hole mounting.
- Supports maximum continuous forward current of 30 A and peak surge current of 100 A.
- Dual diode configuration in a single component enhances compactness.
- Operates reliably across -55°C to 150°C temperature range.
- RoHS compliant and halogen-free, meeting environmental standards.
- Ideal for switching mode power supplies, adapters, and DC to DC converters.
- Exhibits low power loss and high forward surge capability for industrial applications.
Product Description
Taiwan Semiconductor TST30H200CW is a high-performance rectifier and Schottky Diode featuring a TO-220AB package and dual diode configuration. It provides a maximum continuous forward current of 30 A and peak reverse repetitive voltage of 200 V, suitable for environments demanding efficient power rectification with minimal voltage drop.
Utilizing patented trench Schottky technology, this diode delivers excellent high temperature stability and low forward voltage, contributing to overall system efficiency by reducing power losses. Its robust design supports a peak non-repetitive forward surge current of 100 A, making it reliable for transient high load conditions.
The product complies with RoHS directives and is halogen-free according to IEC 61249-2-21, ensuring environmental safety. Operating temperature ranges from -55°C minimum to a maximum of 150°C enable its use across varied industrial applications including switching mode power supplies (SMPS), adapters, and DC to DC converters.
Key technical attributes include a low forward voltage of 0.98 V and a dual diode setup configured in a single package to facilitate compact circuit designs. This diode does not meet automotive standards but is well-suited for numerous commercial and industrial electronics applications requiring efficient rectification and reduced thermal losses.
Patented trench Schottky technology ensures low voltage drop and high efficiency. High thermal endurance supports application in high temperature environments. Dual dies in a single TO-220AB package enhance space savings during assembly.
Low power loss enhances energy efficiency in power supply circuits. High forward surge capability supports transient current spikes in operation. RoHS and halogen-free compliant ensuring eco-friendly standards. Versatile application in SMPS, adapters, and DC to DC conversion supply circuits.
Industry-suitable for power electronics, industrial control, and switching power supplies.
Explore more industrial semiconductors and power components at EnvMart under our Semiconductor category for reliable sourcing and expert selection of high-quality electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the TST30H200CW is 30 A.
This model has a peak reverse repetitive voltage rating of 200 V.
It operates reliably across a temperature range of -55°C to 150°C.
The diode comes in a TO-220AB package type suitable for through-hole mounting.
The peak non-repetitive forward surge current is rated at 100 A.
It features trench Schottky technology, which provides low forward voltage and high efficiency.
Yes, the TST30H200CW is RoHS compliant and halogen-free, meeting environmental standards.
The maximum forward voltage is 0.98 V.
It is ideal for applications such as switching mode power supplies, adapters, and DC to DC converters.
The dual diode configuration in a single component enhances compactness, saving space in circuit designs.
The TST30H200CW is manufactured in India.
This model belongs to the TST30L100CW _C2104 series.
