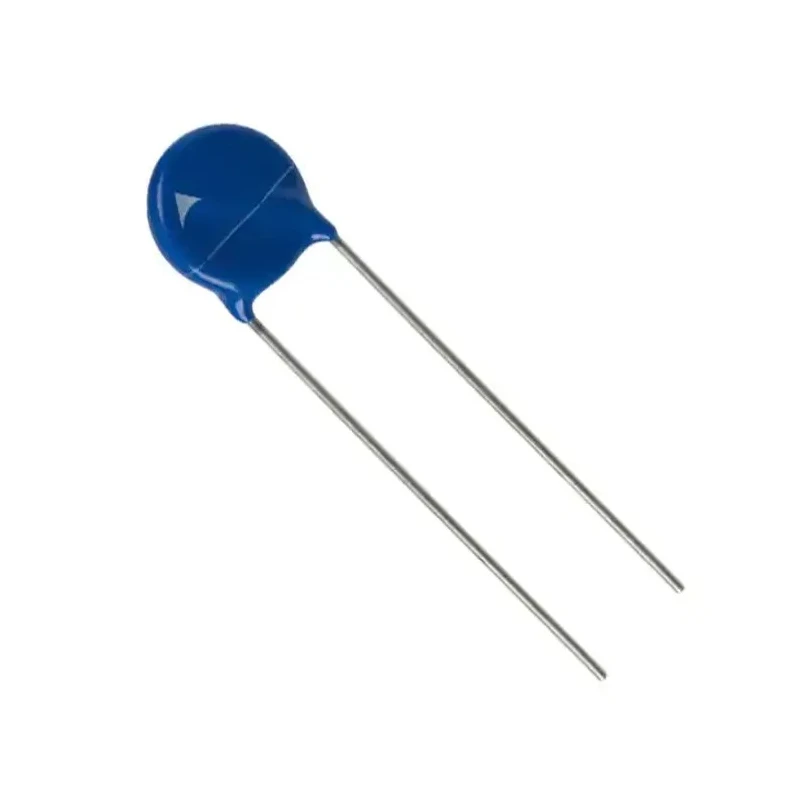

TDK StandardD Metal Oxide Varistor 820pF 50A Clamping 360V Through Hole B72214S0141K101
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 15.5mm |
| Brand | TDK |
| THICKNESS | 4.3mm |
| Length | 18.5mm |
| Model | B72214S0141K101 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Series | StandardD |
| Maximum Operating Temperature | 105°C |
| Capacitance | 820pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 180V dc |
| Standards/Approvals | VDE, UL, CSA, IEC |
| Pin Count | 2 |
| Maximum AC Voltage | 140V ac |
| Clamping Voltage VC | 360V |
| Clamping Current | 50A |
| Maximum Surge Current | 4.5kA |
| Varistor Voltage | 220 V |
Key Features
- Features a standard StandardD series through hole mount type.
- Capacitance of 820pF supports suppression of transient voltage spikes.
- Clamping voltage rated at 360V for effective surge absorption.
- Maximum surge current up to 4.5kA ensures high reliability.
- Wide operating temperature range from -40°C to 105°C for varied environmental conditions.
- Epoxy resin coating flame-retardant to UL 94 V-0 enhances durability and safety.
- Terminals made from tinned wire for secure connections.
- Packaged in tape & reel for automated assembly processes.
Product Description
TDK B72214S0141K101 Metal Oxide Varistor from the StandardD series is designed for surge protection in electronic and electrical equipment. It features a robust round varistor element that provides reliable voltage clamping to protect sensitive circuits from transient voltage spikes.
This varistor offers a capacitance of 820pF and a clamping current of 50A, capable of handling surge currents up to 4.5kA. The clamping voltage is rated at 360V, making it suitable for a wide range of industrial and commercial surge protection applications.
The product is coated with flame-retardant epoxy resin conforming to UL 94 V-0, ensuring fire safety and durability in harsh environments. Terminals are constructed from tinned wire to guarantee excellent solderability and secure electrical connections.
Its operating temperature range from -40°C to 105°C allows reliable use in extreme conditions encountered in industrial, manufacturing, HVAC, and power supply systems. The component is mounted through-hole for conventional PCB assembly techniques and is supplied in tape & reel packaging to support automated placement.
Dimensionally compact with a diameter of 15.5mm, length of 18.5mm, and thickness of 4.3mm, it fits efficiently within limited space designs. Compliance with VDE, UL, CSA, and IEC standards assures quality and safety adherence for international markets.
StandardD series varistor for electronics surge protection. 820pF capacitance with 50A clamping current and 360V clamping voltage. High surge current capacity of 4.5kA for robust operation. Flame-retardant epoxy coating and tinned wire terminals.
Wide temperature range from -40°C to 105°C for versatile applications.
This Varistor is ideal for protecting power supplies, telecommunications equipment, consumer electronics, and industrial control systems. Explore more TDK electronic components and surge protection products on EnvMart for enhanced circuit reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The clamping voltage of this model is rated at 360V, which provides effective surge absorption for sensitive circuits.
This unit can handle a maximum surge current of up to 4.5kA, ensuring high reliability in surge protection applications.
The capacitance of this varistor is 820pF, which supports the suppression of transient voltage spikes.
It has a diameter of 15.5mm, a length of 18.5mm, and a thickness of 4.3mm, making it compact for various applications.
This varistor operates effectively within a temperature range of -40°C to 105°C, suitable for various environmental conditions.
The TDK B72214S0141K101 is designed for through-hole mounting, which is compatible with conventional PCB assembly techniques.
It complies with several standards including VDE, UL, CSA, and IEC, ensuring quality and safety for international markets.
The maximum DC voltage for this model is 180V DC, while the maximum AC voltage is 140V AC.
The terminals are made from tinned wire, ensuring secure connections and excellent solderability.
It is packaged in tape & reel format, which supports automated assembly processes.
This varistor is ideal for protecting power supplies, telecommunications equipment, consumer electronics, and industrial control systems.
The clamping current rating for this varistor is 50A, which contributes to its effectiveness in surge protection.
