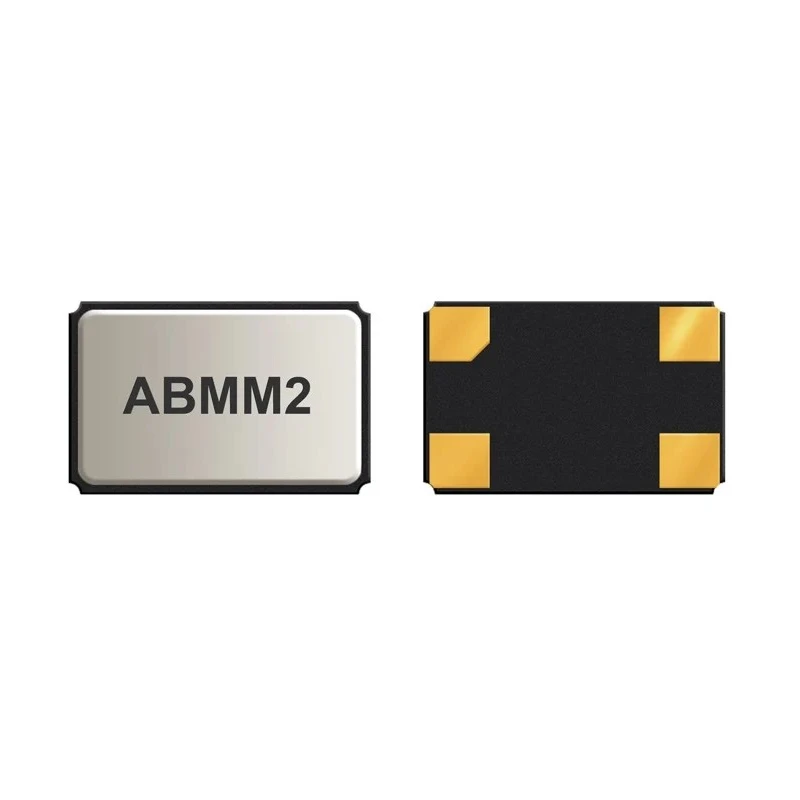

Abracon 25 MHz Surface Mount 4-Pin Crystal Unit ±20 ppm Frequency Tolerance ABMM2-25.000MHZ-D1-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 6mm |
| Model | ABMM2-25.000MHZ-D1-T |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | ABmm² |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 25MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Operates at a standard frequency of 25 MHz.
- Surface mount package with 4 pins for easy PCB assembly.
- Low profile ceramic package with dimensions 6 mm length, 3.5 mm width, and 1.2 mm height.
- Load capacitance of 18 pF suitable for common electronic circuits.
- Operating temperature range from -10°C to 60°C for reliable performance.
- Equivalent Series Resistance (ESR) of 50 Ω optimized for signal integrity.
- RoHS compliant and packaged in tape and reel format for manufacturing efficiency.
- Ideal for use in computers, modems, microprocessors, communication, and test equipment.
Product Description
Abracon ABMM2-25.000MHZ-D1-T 25 MHz Crystal Unit is a surface mount, 4-pin crystal designed for low profile applications requiring precise frequency control and stability. With a frequency tolerance and stability of ±20 ppm, this crystal unit ensures high accuracy in timing circuits and oscillators.
The compact ceramic package measures 6 mm in length, 3.5 mm in width, and 1.2 mm in height, making it suitable for space-constrained electronic assemblies. The unit features a load capacitance of 18 pF and an equivalent series resistance of 50 Ω, which contributes to reliable oscillation performance.
Designed to operate efficiently within the temperature range of -10°C to 60°C, this crystal unit complies with RoHS standards, ensuring environmental safety. The tape and reel packaging supports automated manufacturing processes, making it ideal for volume production.
This crystal unit is commonly used in a variety of industrial, laboratory, and commercial electronic equipment, including computers, modems, microprocessors, communication devices, and testing instruments.
Operates at standard frequency of 25 MHz. Surface mount 4-pin configuration for easy PCB integration. Frequency tolerance and stability of ±20 ppm for precision. Compact ceramic package with 6 mm × 3.5 mm × 1.2 mm dimensions.
Load capacitance of 18 pF ensures compatibility with common circuits. Operating temperature from -10°C to 60°C suits varied environments. Low equivalent series resistance of 50 Ω maintains signal quality. RoHS compliant and tape & reel packaged for manufacturing.
Applicable to computers, modems, microprocessors, communication, and test equipment. Explore more electronic components and Crystal Units at EnvMart to support your industrial and commercial projects with reliable and precise parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a standard frequency of 25 MHz, ensuring precise frequency control in timing circuits and oscillators.
The crystal unit has a compact ceramic package measuring 6 mm in length, 3.5 mm in width, and 1.2 mm in height.
It features a load capacitance of 18 pF, making it suitable for compatibility with common electronic circuits.
The equivalent series resistance (ESR) is 50 Ω, which helps maintain signal integrity during operation.
This crystal unit operates efficiently within a temperature range of -10°C to 60°C.
It is packaged in tape and reel format, which supports automated manufacturing processes and is ideal for volume production.
The frequency tolerance and stability of this unit is ±20 ppm, ensuring high accuracy in its applications.
This model uses a surface mount configuration, allowing for easy integration into PCB assemblies.
It is commonly used in computers, modems, microprocessors, communication devices, and testing instruments.
This unit is RoHS compliant, ensuring it meets environmental safety standards.
The crystal unit has a pin count of 4, facilitating its connection in electronic circuits.
This model is manufactured in India, contributing to its availability in the market.
