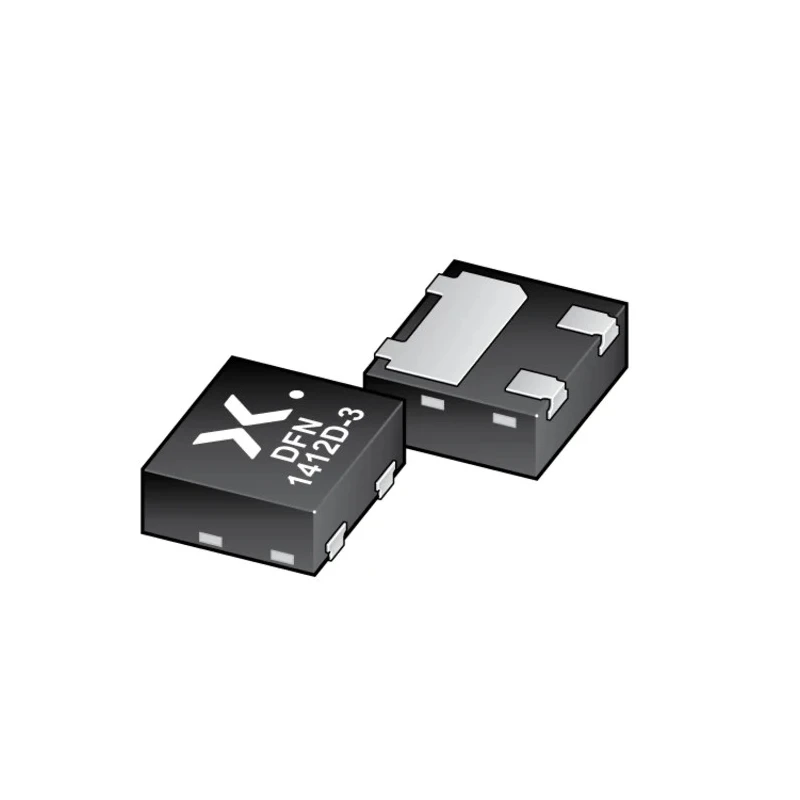

Nexperia Bipolar Transistor NPN 100 mA 45 V 3-Pin SOT-8009 BC847BQC-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BC847BQC-QZ |
| Mount Type | Surface |
| Series | BC847AQC-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-8009 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 45V |
| Minimum DC Current Gain hFE | 200 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 6V |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | NPN |
Key Features
- This transistor features an ultra small DFN1412D-3 leadless surface-mount package with side-wettable flanks.
- It provides high power dissipation capability suitable for compact electronic designs.
- Designed for automatic optical inspection, ensuring reliable solder joint quality.
- The low profile plastic package has a height of only 0.5 mm to save board space.
- It is qualified to automotive standard AEC-Q101, suitable for automotive applications.
- Operating temperature ranges from -55°C to 150°C, supporting harsh environments.
- The transistor configuration is NPN with a minimum DC current gain (hFE) of 200.
- It supports a maximum collector-base voltage of 50 V and emitter-base voltage of 6 V.
Product Description
The Nexperia BC847BQC-QZ bipolar transistor is a general-purpose NPN transistor designed for high-performance electronic circuits requiring up to 100 mA collector current and 45 V collector-emitter voltage. Housed in an ultra-compact 3-pin SOT-8009 surface-mount package with side-wettable flanks, this transistor offers a small footprint and a low 0.5 mm package height, optimizing board space for dense PCB layouts.
This transistor features high power dissipation and is suitable for automatic optical inspection processes, enhancing manufacturing reliability. With a minimum DC current gain of 200, it delivers efficient amplification for switching and analogue functions. Its operating temperature range from -55°C up to 150°C makes it suitable for use in automotive and industrial environments.
Qualified to the rigorous AEC-Q101 automotive standard and compliant with RoHS regulations, the BC847BQC-QZ ensures both performance and environmental safety. Key electrical specifications include a maximum collector-base voltage of 50 V and a maximum emitter-base voltage of 6 V, supporting robust operation under demanding conditions.
This device is ideal for applications in automotive electronics, consumer devices, industrial control systems, and other embedded systems requiring reliable npn transistors in compact packages.
This transistor features an ultra small DFN1412D-3 leadless surface-mount package with side-wettable flanks. It provides high power dissipation capability suitable for compact electronic designs. Designed for automatic optical inspection, ensuring reliable solder joint quality.
The low profile plastic package has a height of only 0.5 mm to save board space. It is qualified to automotive standard AEC-Q101, suitable for automotive applications. Operating temperature ranges from -55°C to 150°C, supporting harsh environments.
The transistor configuration is NPN with a minimum DC current gain (hFE) of 200. It supports a maximum collector-base voltage of 50 V and emitter-base voltage of 6 V. The 3-pin device is surface-mounted for easy PCB integration.
RoHS compliant for environmental safety. Explore more Nexperia Bipolar Transistors and electronic semiconductor components on EnvMart for various industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector-emitter voltage for the BC847BQC-QZ is 45 V.
This model has a minimum DC current gain (hFE) of 200.
The operating temperature range for this transistor is from -55°C to 150°C.
It is housed in a 3-pin SOT-8009 surface-mount package.
The BC847BQC-QZ supports a maximum DC collector current of 100 mA.
Yes, it is RoHS compliant, ensuring environmental safety.
It is qualified to the AEC-Q101 automotive standard.
The maximum emitter-base voltage (VEBO) is 6 V.
The configuration of this transistor is NPN.
The design supports automatic optical inspection, enhancing solder joint quality and manufacturing reliability.
The height of the package is only 0.5 mm, optimizing board space.
This transistor is suitable for automotive electronics, consumer devices, and industrial control systems.
