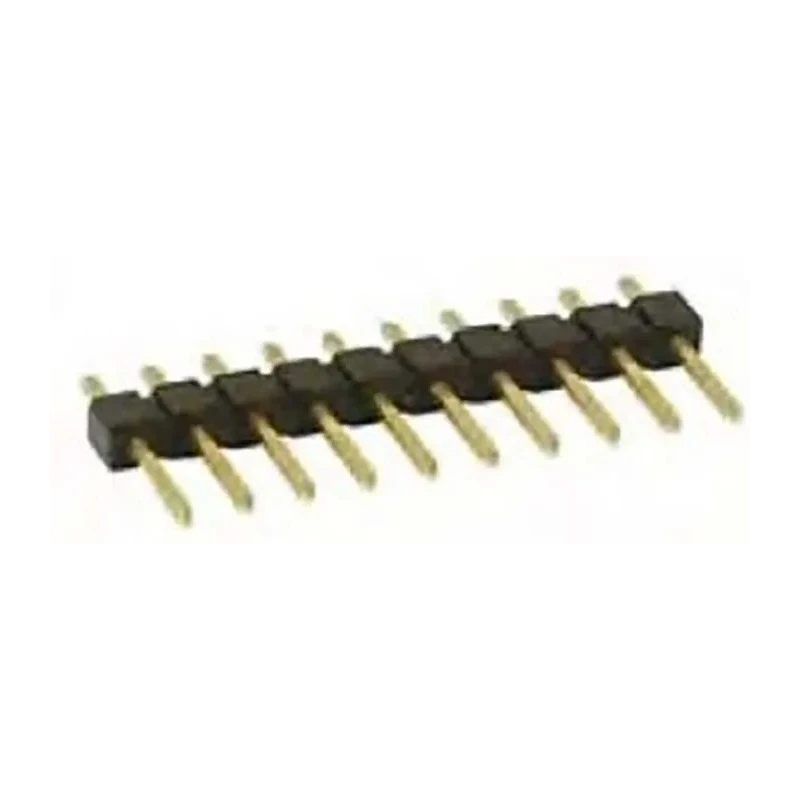

Amphenol Communications Solutions EconoStik Series Vertical Through Hole Pin Header, 36 Contacts, 2.54 mm 10129378-936001BLF

Amphenol Communications Solutions 10129378-936001BLF is a Vertical Through Hole Pin Header from the EconoStik series featuring 36 contacts, a pitch of 2.54 mm, and rated for 110V and 3A current. This pin header is engineered with a thermoplastic housing and copper alloy contacts enhanced with 1μin gold plating to provide excellent conductivity and corrosion resistance. The design includes a single row of unshrouded pins arranged vertically, suitable for secure and efficient PCB board-to-board connections.

Operating across a temperature range from -55°C to 105°C, this pin header is ideal for demanding environments. It uses solder termination type and features tail pin and mating pin lengths of 3.05 mm and 5.84 mm respectively, ensuring robust mechanical and electrical contacts.

This product is RoHS compliant under China and European Union directives and meets REACH/SvHC standards, certifying its environmental safety and lead-free construction.

Typical industrial and commercial applications include use in industrial control systems, test instrumentation, metering equipment, POS terminals, set-top boxes, surveillance devices, and vending machines where reliable electrical connectivity is essential.

The EconoStik series offers a high temperature resin body optimized for durability. 1μin gold plating on contacts and tail pins ensures long-lasting corrosion resistance and performance. Customizable mating and tail lengths support diverse design requirements.

The product has been tested for 50 mating cycles, confirming its reliability in repeated connection scenarios. Unshrouded design facilitates easy soldering and inspection during PCB assembly. Vertical orientation and 2.54 mm pitch suit standard industrial and commercial PCB layouts.
