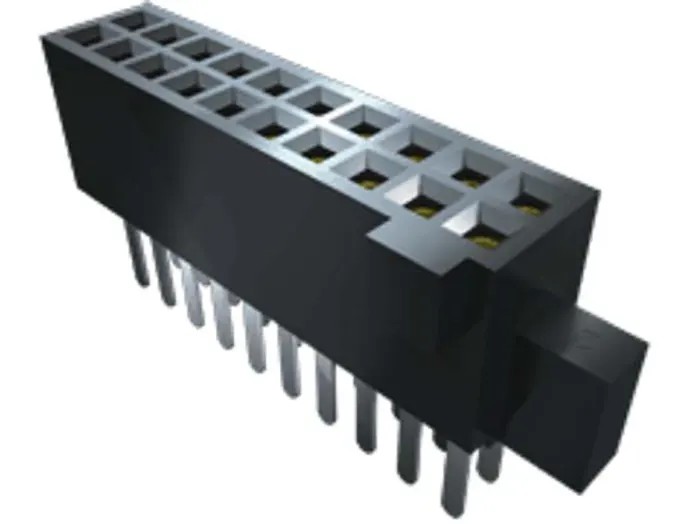

Samtec SFM Series Straight Surface PCB Socket 40-Contact 2 Row 1.27 mm Pitch Through Hole SFM-120-02-S-D-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | SFM-120-02-S-D-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SFM |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Reliability Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Cable |
| Stacking Height | 12mm |
Key Features
- Constructed with beryllium copper alloy contacts plated with gold for optimal conductivity.
- Features a black liquid crystal polymer housing material ensuring durability under harsh conditions.
- Rated for a current of 3.2A per pin supporting robust electrical performance.
- Designed for through hole termination and surface mount applications with board-to-board and cable connector systems.
- Operates reliably between -55°C and 125°C temperature range for versatile industrial environments.
- Compact 12 mm stacking height suitable for dense PCB layouts.
- Compliant with RoHS standards for environmental safety.
Product Description
Samtec SFM-120-02-S-D-A-K-TR PCB Socket is a high reliability, straight surface mount socket designed for advanced electronic connectivity applications. It features 40 female contacts arranged in 2 rows with a precise 1.27 mm pitch and a 12 mm stacking height, providing a reliable board-to-board or cable connection solution for industrial and commercial PCB assemblies.
The socket contacts are made from beryllium copper alloy with gold plating, ensuring excellent electrical conductivity and corrosion resistance. The housing is composed of black liquid crystal polymer, offering high mechanical stability and thermal resistance suitable for operating temperatures ranging from -55°C to 125°C.
This connector supports a current rating of 3.2A per pin (using two pins powered) and a voltage rating of 250V, making it ideal for a wide range of electronic devices requiring robust power and signal transmission.
The through hole termination type facilitates strong soldering and mechanical retention on PCBs, while the straight orientation and surface mount design allow for space-efficient layouts on printed circuit boards. The connector series SFM complies with RoHS directives, assuring environmentally friendly manufacturing processes.
Contact material: beryllium copper alloy with gold plating. Housing material: black liquid crystal polymer. Number of contacts: 40. Number of rows: 2. Pitch: 1.27 mm. Current rating: 3.2A per pin. Voltage rating: 250V. Operating temperature: -55°C to 125°C.
Mount type: surface. Termination type: through hole. Connector system: board-to-board, cable.
This product is ideal for use in industrial, manufacturing, electronics, and laboratory applications requiring high reliability PCB connectors. It supports a variety of electronic designs needing durable and precise connectivity.
Explore the Samtec range and similar PCB socket products in the Electronics & Electricals category on EnvMart for trusted quality and performance.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current rating of 3.2A per pin when using two pins powered, supporting robust electrical performance.
The voltage rating for this model is 250V, making it suitable for various electronic applications.
The contacts are made from beryllium copper alloy with gold plating, while the housing is constructed from black liquid crystal polymer.
It operates reliably within a temperature range of -55°C to 125°C, suitable for diverse industrial environments.
This model features 40 female contacts arranged in 2 rows with a 1.27 mm pitch.
The stacking height of this unit is 12 mm, allowing for compact PCB layouts.
It uses a through hole termination type, which facilitates strong soldering and mechanical retention on PCBs.
It supports board-to-board and cable connector systems, making it versatile for various applications.
Yes, it is compliant with RoHS standards, ensuring environmentally friendly manufacturing processes.
This socket features a straight orientation, suitable for surface mount applications.
It is ideal for industrial, manufacturing, electronics, and laboratory applications requiring high reliability connectors.
This product is manufactured in India, reflecting its origin in quality production.
