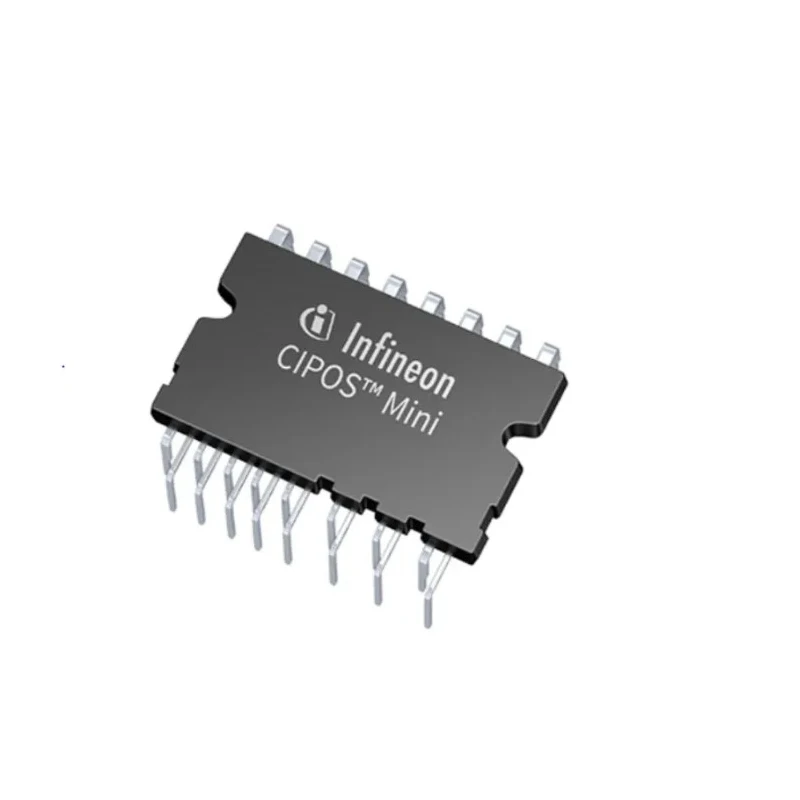

Infineon Permanent Magnet AC Motor Driver IC 600 V 24-Pin DIP IGCM20F60GAXKMA1

Infineon IGCM20F60GAXKMA1 Permanent Magnet AC Motor Driver IC is engineered for reliable control of three-phase AC and permanent magnet motors in variable speed drive applications. Operating at a maximum collector emitter voltage of 600 V and output current rating of 20 A, this IC optimizes motor efficiency while ensuring robust performance.

Housed in a 24-pin DIP through-hole package, the driver features rugged SOI gate driver technology that provides stability against transient and negative voltage conditions. Over current shutdown and temperature monitoring functions safeguard the device during operation.

The IC supports a typical switching frequency of 10 kHz and operates with a supply voltage range from 14 V to 18.5 V, making it suitable for inverter power ratings up to 1600 W. The wide operating temperature range of -40°C to 125°C allows deployment in harsh industrial and automotive environments compliant with AEC-Q101 standards.

Its compact dimensions (36 mm length, 21 mm width, and 3.1 mm height) and through-hole DIP mount type facilitate easy integration into various motor drive applications such as refrigerators and dishwashers. The integrated features, including undervoltage lockout at all channels and monolithic body diodes with reverse conducting IGBTs, enhance protection and efficiency.

Suitable for controlling three-phase permanent magnet AC motors in variable speed drives. Rugged SOI gate driver technology ensures stable and reliable performance under transient conditions. Integrated over current shutdown and temperature monitoring protect the IC and connected systems.

Undervoltage lockout on all channels secures operational safety. Compliant with automotive standard AEC-Q101 for enhanced quality and durability. Compact 24-pin DIP package for ease of mounting and PCB design. Operates within supply voltage of 14 V to 18.5 V and switching frequency of 10 kHz.

Designed for inverter power rating up to 1600 W suitable for household appliances. Wide operating temperature range from -40°C to 125°C for varied industrial conditions. Reverse conducting IGBTs with monolithic body diode improve switching and reduce losses.

This motor driver IC is ideal for industrial, automotive, household appliance, and HVAC applications where efficient and reliable motor control is critical. Its robust design handles complex drive requirements while maintaining operational integrity in demanding environments.

Explore a wide range of Motor Driver ICs and related components at EnvMart for your industrial and electronic design needs.
