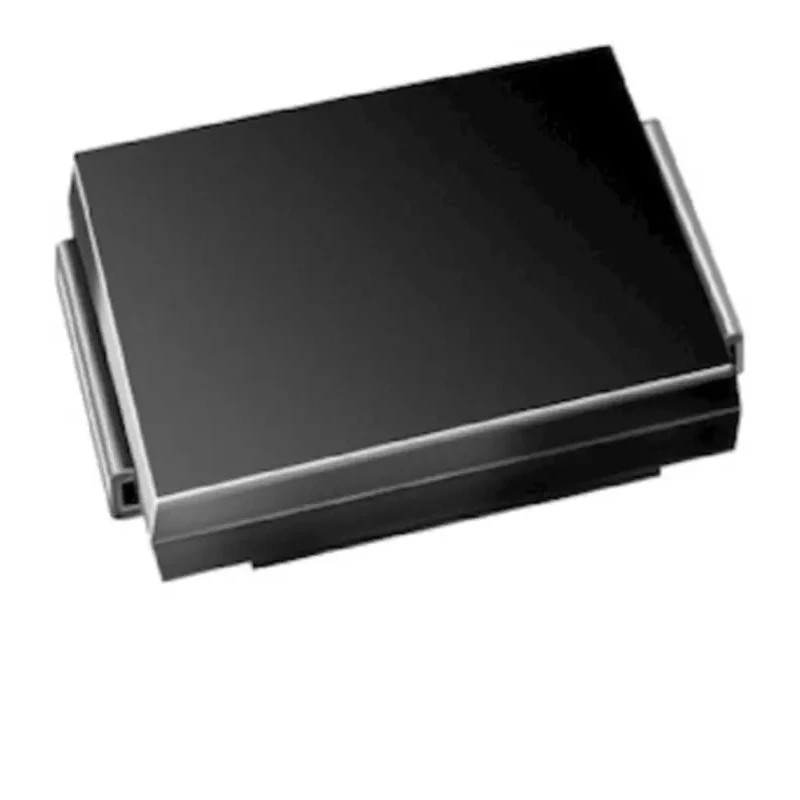

Vishay 1-Element Uni-Directional, Bi-Directional TVS Diode 1.5 kW Peak Pulse Power 2-Pin DO-214 SMCJ33CAHE3_A/H

Vishay SMCJ33CAHE3_A/H is a 1-Element Uni-Directional, Bi-Directional TVS Diode delivering 1.5 kW peak pulse power dissipation in a compact 2-pin DO-214 surface mount package. This device offers efficient protection for sensitive electronics against voltage transients caused by inductive load switching and lightning. It provides excellent clamping capabilities and a very fast response time which help safeguard ICs, MOSFETs, signal lines, and sensor units.

The diode features a minimum breakdown voltage of 36.7 V and a maximum reverse stand-off voltage of 33 V, ensuring reliable performance under transient conditions. Clamping voltage is rated at 53.3 V with a peak pulse current of 28.1 A and a duty-cycle of 0.01%, making it ideal for handling fast high-energy spikes.

Its small dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height facilitate compact PCB designs. The device supports operation across a wide temperature range from -55° to 150°C and meets the automotive industry standard AEC-Q101 for quality assurance. Reverse leakage current remains extremely low at 1 μA, minimizing power loss.

Applications for this TVS diode include industrial, consumer electronics, telecommunications, automotive electronic protection circuits, and general-purpose transient voltage suppression in power and signal lines. The device ensures reliable long-term protection against electrostatic discharge and voltage surges.

Single diode configuration suitable for transient voltage suppression applications. Uni-directional and bi-directional operation for versatile circuit protection. Minimum breakdown voltage of 36.7 V with maximum stand-off voltage of 33 V.

Clamping voltage of 53.3 V ensures effective surge suppression. Peak pulse current rating up to 28.1 A for robust transient energy handling. Surface mount package type DO-214 with small footprint dimensions 7.11 mm length x 6.22 mm width x 2.42 mm height.

Wide operating temperature range from -55°C to 150°C. Automotive grade compliance with AEC-Q101 standard. Extremely low maximum reverse leakage current of 1 μA. Designed for protection of electronic circuits in consumer, industrial, telecommunication, and automotive applications.
