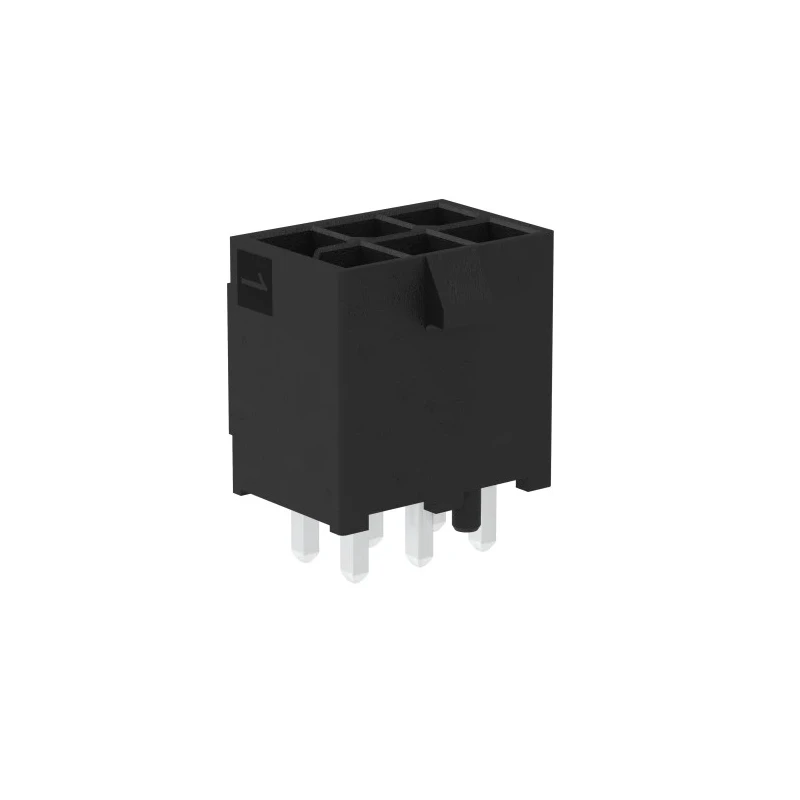

Molex Mini-Fit Max Series Vertical Through Hole PCB Header 6 Contacts 4.2 mm Pitch 2 Row Shrouded 212520-1006
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Current | 20A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | Mini-Fit Max |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Standards/Approvals | CHINA RoHS, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header features a vertical orientation and wire-to-board connector system.
- Constructed with durable liquid crystal polymer housing for enhanced insulation.
- Contacts are made of copper alloy with tin plating for excellent conductivity and corrosion resistance.
- Supports current up to 20A and operates safely between -40°C and 105°C.
- Mount type is through hole with solder termination for secure PCB attachment.
- Designed to meet CHINA RoHS and EU RoHS standards, ensuring environmental compliance.
- Durability rated for up to 30 mating cycles, suitable for industrial and electronic applications.
Product Description
Molex 212520-1006 Mini-Fit Max Series vertical through hole PCB header is a high-performance connector designed for demanding electronic applications. This model features 6 female contacts arranged in two rows with a standard 4.2 mm pitch, suitable for wire-to-board connections.
The connector housing is made from robust liquid crystal polymer, providing excellent electrical insulation and mechanical protection, while the contacts are constructed from copper alloy and plated with tin to ensure reliable conductivity and resistance to corrosion. The shrouded design protects contacts and prevents misalignment during mating.
Rated for 20A current and operation within a temperature range from -40°C to 105°C, this PCB header is ideal for use in industrial, commercial electronics, and manufacturing environments where durability and performance are critical.
The through hole mount type with solder termination provides secure and stable attachment to printed circuit boards, suitable for applications requiring long-term reliability. Compliance to CHINA RoHS and EU RoHS regulations ensures this component meets strict environmental standards.
With a maximum durability of 30 mating cycles, this connector balances performance and operational lifespan for efficient assembly and maintenance. This PCB header features a vertical orientation and wire-to-board connector system.
Constructed with durable liquid crystal polymer housing for enhanced insulation. Contacts made of copper alloy with tin plating for excellent conductivity and corrosion resistance. Supports current up to 20A and operates safely between -40°C and 105°C.
Mount type is through hole with solder termination for secure PCB attachment. Designed to meet CHINA RoHS and EU RoHS standards, ensuring environmental compliance. Durability rated for up to 30 mating cycles, suitable for industrial and electronic applications.
This Molex Mini-Fit Max Series PCB header is well-suited for use in electronic component assemblies, power connectors, industrial control panels, and other applications requiring reliable wire-to-board connectivity. Browse our extensive collection of PCB Headers and connectors at EnvMart to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 20A.
It operates safely between -40°C and 105°C.
The header features 6 female contacts arranged in two rows.
The pitch size is 4.2 mm.
The housing is made from liquid crystal polymer, while the contacts are constructed from copper alloy with tin plating.
This model uses solder termination for secure PCB attachment.
Yes, it is designed to meet CHINA RoHS and EU RoHS standards for environmental compliance.
It features a through hole mount type.
This connector is rated for a maximum of 30 mating cycles.
The header has a vertical orientation.
It is suitable for electronic component assemblies, power connectors, and industrial control panels.
It utilizes a wire-to-board connector system.
