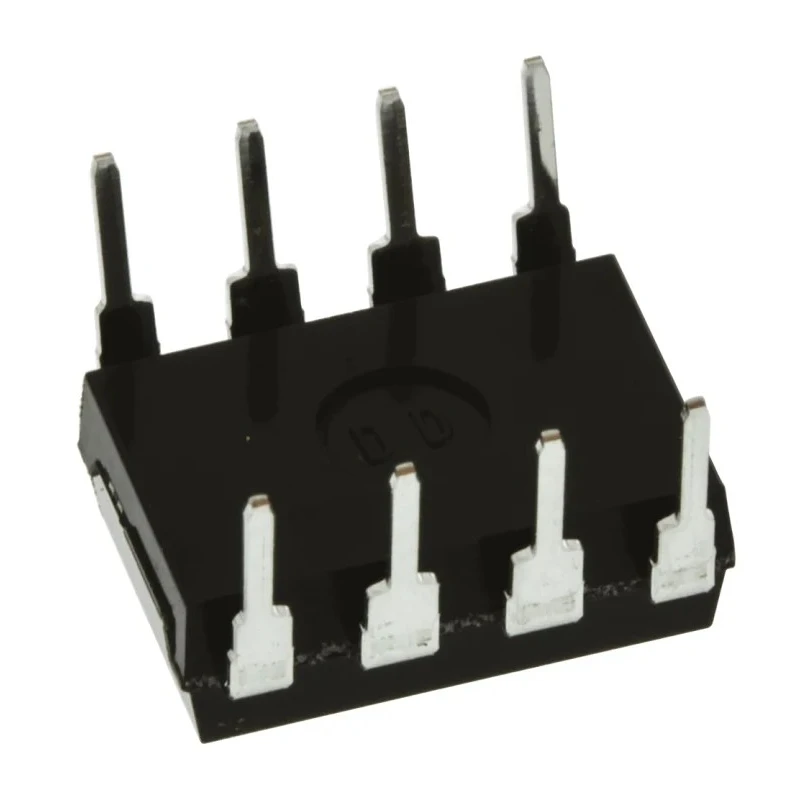

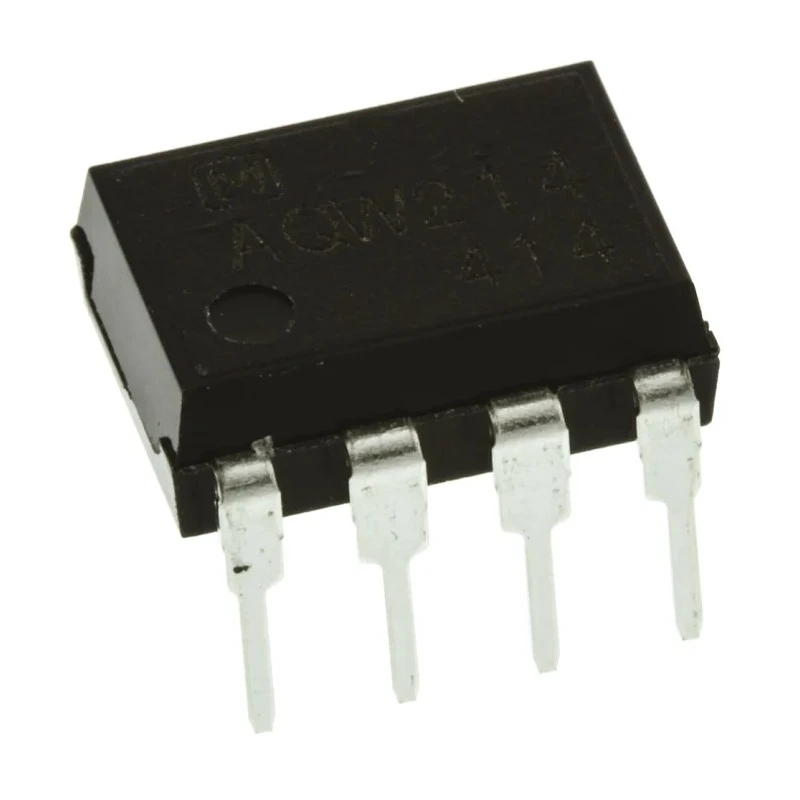

Broadcom AQW Series Solid State Relay PCB Mount 0.1 A Load 400 V Load 1.5V Control AQW214
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Broadcom |
| Height | 3.9mm |
| Length | 9.8mm |
| Model | AQW214 |
| IP Rating | IP20 |
| Width | 6.4mm |
| Mount Type | PCB |
| Series | AQW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Package Type | DIP-8 |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Maximum Load Current | 0.1A |
| Standards/Approvals | UL |
| Maximum Load Voltage | 400V |
| Minimum Load Voltage | 0V |
| Minimum Control Voltage | 1.14V |
| Maximum Control Voltage | 1.5V |
| Off State Leakage Current | 1μA |
| On State Resistance | 35Ω |
Key Features
- Compact 8-pin DIP-8 package for easy through-hole PCB mounting.
- Contact configuration is DPST, enabling dual pole single throw operation.
- Operates within temperature range of -40°C to 85°C for reliable performance.
- On state resistance of 35 ohms minimizes power loss during switching.
- Low off state leakage current of 1 microampere ensures efficient insulation.
- Control voltage range from 1.14 V minimum to 1.5 V maximum provides low voltage triggering.
- IP20 rated for basic protection from solid objects.
- Suitable for industrial applications such as computers, faxes, and modems requiring solid state switching.
Product Description
Panasonic AQW214 photoMOS Solid State Relay is designed for PCB mount applications requiring low load current switching up to 0.1 A with a maximum load voltage of 400 V. The device features a compact DIP-8 package and DPST contact configuration suitable for precise and reliable solid state switching in electronic devices.
Operating temperature ranges from -40°C to 85°C make this relay suitable for demanding industrial environments including computers, fax machines, and modems. The relay offers a low on state resistance of 35 ohms, ensuring power efficiency when activated, and a minimal off state leakage current of 1 microampere to enhance performance.
The control voltage range of 1.14 V to 1.5 V provides low input power requirements for triggering, making it ideal for sensitive control circuits. With IP20 ingress protection, this solid state relay is protected against solid object ingress greater than 12 mm, suitable for typical indoor electronic applications.
The device uses through-hole terminal type for straightforward PCB assembly and complies with UL safety standards. Manufactured in Japan, it assures consistent quality and reliability in industrial and commercial electronic control systems.
Compact DIP-8 package and through-hole mounting. DPST contact configuration for dual pole switching. Operating temp range from -40°C to 85°C for harsh environments. Low on state resistance of 35 ohms reduces power loss. Minimal off state leakage current of 1 μA improves efficiency.
Control voltage 1.14 V to 1.5 V optimizes low power input control. IP20 rating provides basic protection against solid objects. Industrial use in computers, faxes, modems, and other electronic equipment. Explore more Solid State Relay options and industrial electronics at EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.1 A.
It supports a maximum load voltage of 400 V.
The control voltage range for this model is from 1.14 V to 1.5 V.
The on state resistance is 35 ohms, which minimizes power loss during operation.
This model has a height of 3.9 mm, a width of 6.4 mm, and a length of 9.8 mm.
It uses a PCB mount type with through-hole terminals for easy assembly.
The contact configuration is DPST (dual pole single throw), suitable for various switching applications.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
The off state leakage current is 1 microampere, ensuring efficient insulation.
The IP rating is IP20, providing basic protection against solid objects larger than 12 mm.
Yes, it complies with UL safety standards.
It is manufactured in Japan, ensuring consistent quality and reliability.
