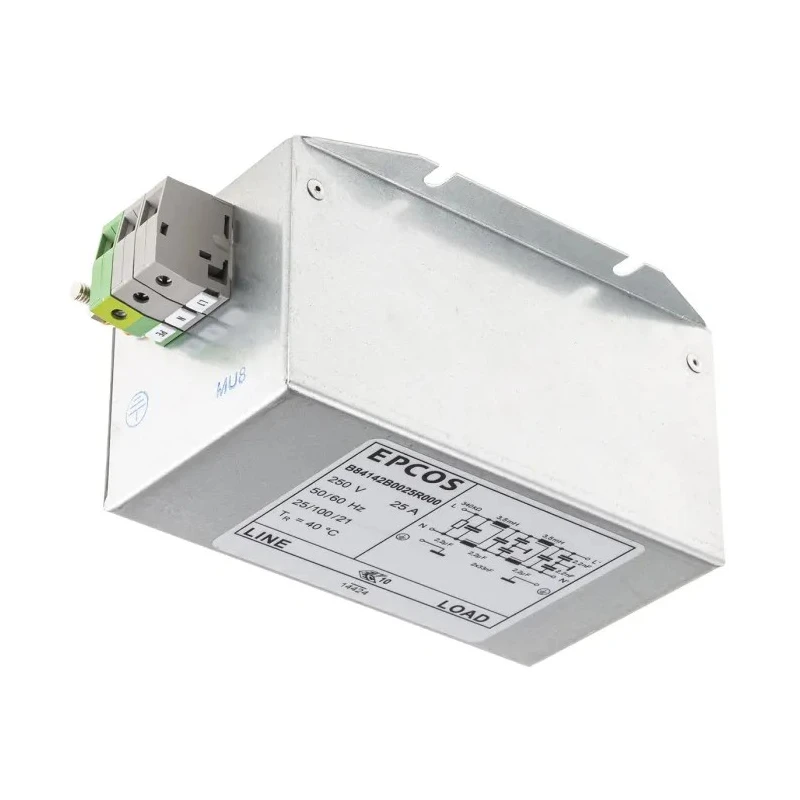

TDK Screw EMC Filter Terminal Block 25 A 250V AC/DC 60Hz 1 Phase B84142B0025R000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 81mm |
| Length | 113mm |
| Model | B84142B0025R000 |
| Depth | 206mm |
| Mount Type | Screw |
| Operating Frequency | 60Hz |
| Series | B84142B*R000 |
| Maximum Operating Temperature | 100°C |
| Resistance | 9mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25A |
| Number of Phases | 1 |
| Leakage Current | 2.77mA |
| Maximum Voltage | 250V ac/dc |
| Standards/Approvals | IEC 60939 |
| Termination Style | Terminal Block |
| TDK, B84142A 30 A 250V ac/dc 60Hz, Flange EMC Filter, Screw 1 PhaseBrand | TDK |
Key Features
- This EMC filter supports a maximum current rating of 25 amperes.
- It operates at a rated voltage of 250 volts AC/DC providing versatile power compatibility.
- Designed for 1 phase electrical systems with a 60 Hz operating frequency.
- Constructed with a screw mount type and terminal block termination style.
- Features low leakage current optimized for industrial applications.
- Operating temperature ranges from -25°C to 100°C ensuring durability in harsh environments.
- Complies with IEC 60939 standard ensuring quality and safety.
- Ideal for use in frequency converters, motor drives, pumps, elevators, and HVAC systems.
Product Description
TDK B84142B0025R000 screw EMC filter terminal block is a high-performance power line filter designed for 1 phase electrical applications. It supports a rated current of 25 A and a voltage rating of 250 V AC/DC at 60 Hz, making it suitable for reliable industrial and commercial use.
The filter utilizes a screw mount and terminal block termination style for secure and efficient electrical connections. Its construction ensures low resistance of 9 milliohms and a leakage current of just 2.77 milliamps, which optimizes power efficiency and minimizes electromagnetic interference in your systems.
With an operating temperature range from -25°C to 100°C and compact dimensions (Length 113 mm, Depth 206 mm, Height 81 mm), this EMC filter is built to withstand demanding environmental conditions and fit into limited spaces.
It meets the IEC 60939 standards and has approvals from UL1283 and CSA22.2 No.8 1986, assuring compliance with industry quality and safety requirements.
Applications include frequency converters for motor drives, pumps, elevators, conveyor systems, HVAC installations (heating, ventilation, and air conditioning), DC applications, and general power supplies.
This EMC filter supports a maximum current rating of 25 amperes. It operates at a rated voltage of 250 volts AC/DC providing versatile power compatibility. Designed for 1 phase electrical systems with a 60 Hz operating frequency.
Constructed with a screw mount type and terminal block termination style. Features low leakage current optimized for industrial applications. Operating temperature ranges from -25°C to 100°C ensuring durability in harsh environments.
Compact dimensions: Length 113 mm, Depth 206 mm, Height 81 mm. Complies with IEC 60939 standard ensuring quality and safety. Ideal for use in frequency converters, motor drives, pumps, elevators, and HVAC systems. Explore the comprehensive range of TDK Power Line Filters to find solutions that enhance the performance and safety of your electrical systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 25 amperes.
It operates at a rated voltage of 250 volts AC/DC.
This model is designed for 1 phase electrical systems with an operating frequency of 60 Hz.
The dimensions of this unit are 113 mm in length, 206 mm in depth, and 81 mm in height.
It has an operating temperature range from -25°C to 100°C.
The leakage current is 2.77 milliamps, which helps optimize power efficiency.
It features a terminal block termination style for secure electrical connections.
It complies with the IEC 60939 standard, ensuring quality and safety.
The resistance is 9 milliohms, which contributes to its efficiency.
It is constructed with a screw mount type for secure installation.
The country of origin is India.
