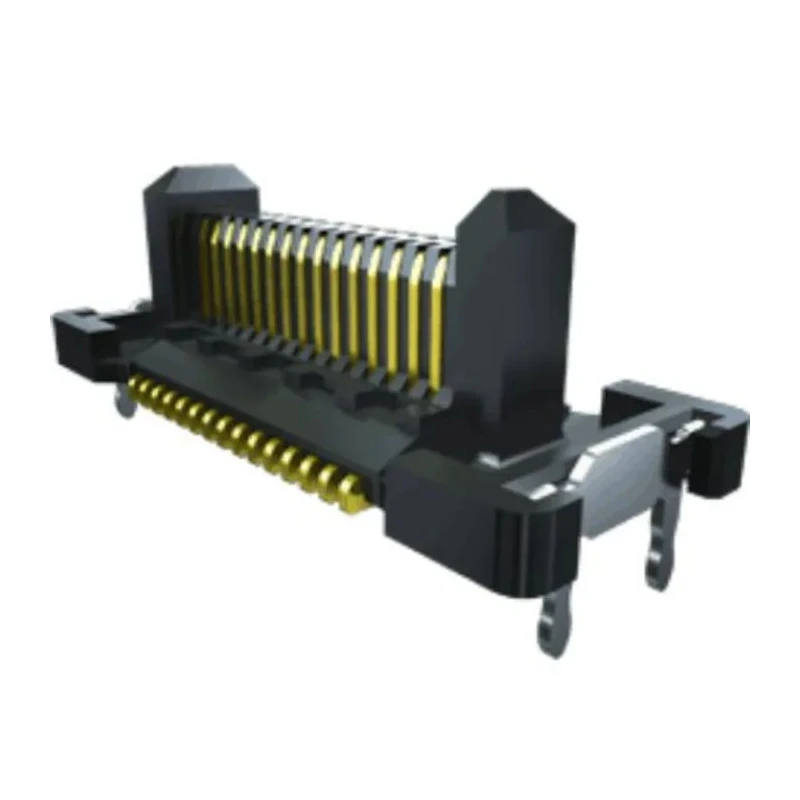

Samtec FT5 Series Vertical Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded FT5-30-01.0-L-DV-TH-P-TR

The Samtec FT5-30-01.0-L-DV-TH-P-TR is a high-performance vertical surface PCB header designed for precise board-to-board connections in electronic assemblies. Featuring 60 contacts arranged in two rows with a compact 0.5 mm pitch, this shrouded header combines durability, electrical reliability, and space-saving design.Constructed using liquid crystal polymer housing and phosphor bronze contacts plated with gold, it ensures excellent electrical conductivity and mechanical strength. The floating contact system allows for high-speed signal transmission critical in modern electronics. Its shrouded design protects against mechanical damage and misalignment during connector mating.This header supports a current of up to 1.8 amperes and operates efficiently within a temperature range from -55°C to +125°C, making it suitable for demanding industrial, telecommunications, and computing applications.Surface mount termination offers ease of assembly and robust solder joints. Its vertical orientation maximizes PCB layout flexibility and mechanical stability. The product is RoHS compliant and designed according to quality industrial standards, though it does not carry specific certifications.Ideal for use in electronic manufacturing environments requiring compact, reliable interconnect solutions, the Samtec FT5 series header caters to advanced PCB needs in industrial automation, communications hardware, embedded systems, and instrumentation.

This PCB Header utilizes high-quality phosphor bronze contacts plated in gold for reliable connections. The housing material is liquid crystal polymer, ensuring durability and performance at elevated temperatures. Designed for surface mount applications, it provides a vertical orientation suitable for board-to-board connections.

Operates safely within a temperature range of -55°C to 125°C. The connector system is a floating contact type offering high speed and accuracy in electronic applications. Shrouded design provides protection against misalignment and damage during mating.

Terminated by solder to ensure secure mechanical and electrical connection to the PCB. Rated for a current capacity of 1.8A, suitable for moderate power applications. The compact 0.5 mm pitch allows for high density contact placement.

For detailed engineering design, 3D models, and technical documents, please consult associated resources available through EnvMart's electronics component category browsing.
