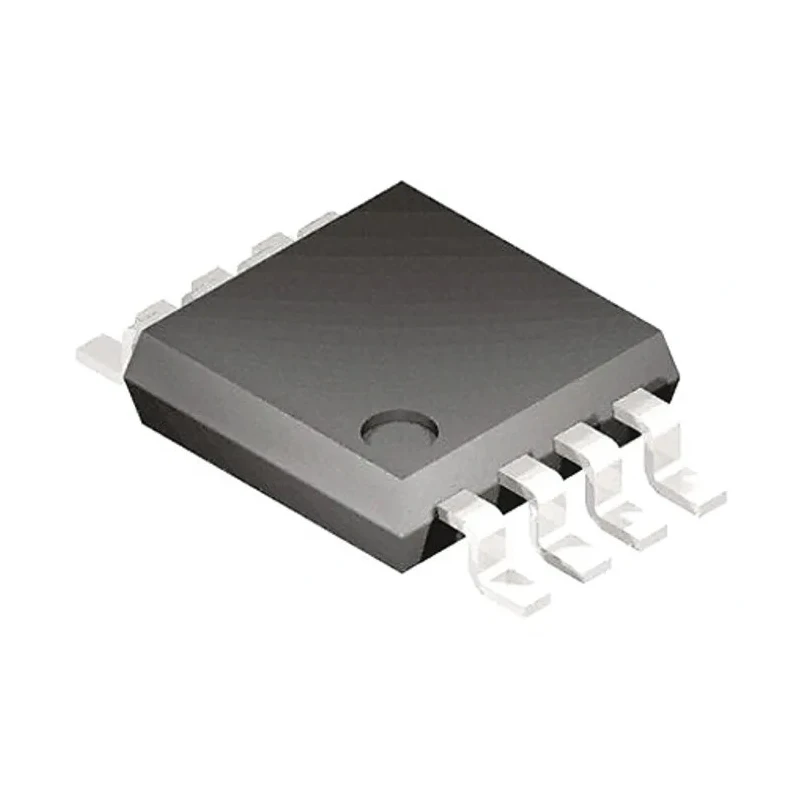

Infineon High Side Power Switch IC Single-Channel 1 Output 1 Input 1.5W Power Rating 5V-34V Supply BSP742RIXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.45mm |
| Length | 5mm |
| Model | BSP742RIXUMA1 |
| Width | 4mm |
| Mount Type | Surface |
| Number of inputs | 1 |
| Series | BSP742RI |
| Power Rating | 1.5W |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO |
| Minimum Operating Temperature | -40°C |
| Operating Current | 0.4A |
| Number of outputs | 5 |
| Pin Count | 8 |
| Automotive Standard | AEC |
| Maximum Supply Voltage | 34V |
| Minimum Supply Voltage | 5V |
| Switch On Resistance RdsOn | 700mΩ |
Key Features
- Features a high-side switch topology with a low switch-on resistance of 700mΩ.
- Operates within a supply voltage range of 5V minimum to 34V maximum.
- Designed for power ratings up to 1.5W with a maximum operating current of 0.4A.
- Includes overload, current limitation, short-circuit, thermal shutdown, overvoltage, and ESD protections.
- Complies with automotive AEC standards for high reliability applications.
- Compact 8-pin DSO surface-mount package with dimensions 5mm x 4mm x 1.45mm.
- Wide operating temperature range from -40°C to 150°C.
- Ideal for power management in automotive, industrial, and electronic systems.
Product Description
Infineon BSP742RIXUMA1 is a high-performance High Side Power Switch IC designed for efficient power management in electronic systems. Featuring a single channel and housed in an 8-pin DSO surface-mount package, this component provides reliable switching capabilities with a low switch-on resistance of 700mΩ, enabling minimal power loss during operation.
The device supports a wide supply voltage range from 5V to 34V and delivers a power rating of 1.5W with an operating current up to 0.4A. It is engineered with multiple built-in protection features including overload protection, current limitation, short-circuit protection, thermal shutdown, overvoltage protection, and electrostatic discharge (ESD) protection, ensuring robust operation and system safety.
Its compliance with the automotive AEC standard makes the BSP742RIXUMA1 suitable for automotive and industrial applications where durability and reliability are critical. With compact dimensions of 5mm length, 4mm width, and 1.45mm height, it is optimized for space-saving PCB designs.
This power switch IC operates across a broad temperature range from -40°C to 150°C, supporting a wide variety of challenging environmental conditions. High-side switch topology with low on-resistance (700mΩ) to enhance efficiency.
Single output and input configuration for simplified power control. Complete protection suite ensuring safety against overload, short-circuits, thermal and voltage irregularities. Automotive-grade design compliant with AEC standards for rigorous performance demands.
Compact surface-mount DSO package allows easy integration in high-density circuits. Wide operating supply voltage range (5V to 34V) suitable for diverse applications. Robust mechanical and thermal specifications providing long-term reliability.
This Infineon High Side Power Switch IC is ideal for power management systems in automotive electronics, industrial control systems, and advanced electronic components requiring controlled high-side switching functionality.
Explore our extensive range of power management and semiconductor products at EnvMart to find components suited for diverse industrial and commercial applications.
Explore more products in our Power Switch ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 5V to 34V.
The maximum operating current for the BSP742RIXUMA1 is 0.4A.
It has a power rating of 1.5W.
The dimensions of the DSO package are 5mm in length, 4mm in width, and 1.45mm in height.
The switch-on resistance (RdsOn) is 700mΩ.
It operates across a wide temperature range from -40°C to 150°C.
This model uses a surface mount type for installation.
It includes overload protection, current limitation, short-circuit protection, thermal shutdown, overvoltage protection, and ESD protection.
Yes, it complies with automotive AEC standards for high reliability applications.
The BSP742RIXUMA1 has 1 input and 1 output configuration.
It belongs to the BSP742RI series.
The country of origin is India.
