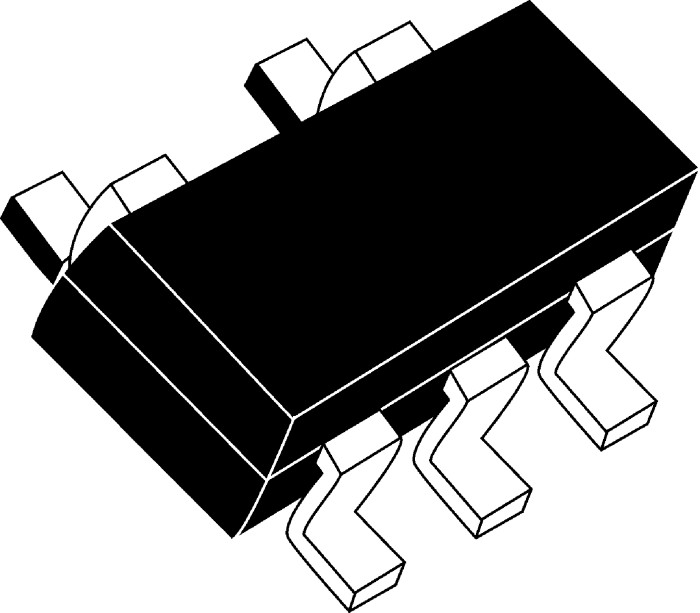

DiodesZetex Low Dropout Linear Voltage Regulator 3.3V Output 250mW 5.5V Input SOT-25 5-Pin AP139-33WG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | AP139-33WG-7 |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | AP139 |
| Power Rating | 250mW |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-25 |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 60μA |
| Minimum Input Voltage | 2.7V |
| Pin Count | 5 |
Key Features
- Operates with a minimum input voltage of 2.7V and maximum input voltage of 5.5V.
- Designed for surface mount applications with a 5-pin SOT-25 package type.
- Features low dropout operation and a quiescent current of only 60μA.
- Maximum operating temperature of 85°C suitable for standard industrial environments.
- Positive polarity regulator ensuring stable voltage output.
- No automotive compliance or additional approvals applicable.
- Ideal for applications requiring low noise and high power supply rejection ratio.
Product Description
DiodesZetex AP139-33WG-7 is a Low Dropout Linear Voltage Regulator designed to provide a stable 3.3V output voltage with a power rating of 250mW. Housed in a compact 5-pin SOT-25 surface mount package, it offers efficient and reliable voltage regulation suitable for a variety of electronic applications.
This voltage regulator operates efficiently with an input voltage range of 2.7V to a maximum of 5.5V and features a very low quiescent current of 60μA, making it highly suitable for battery-powered and low power consumption devices.
The device supports positive polarity regulation and can operate up to a maximum temperature of 85°C, accommodating typical industrial operating conditions without compromising performance.
Due to its small size with dimensions of 3.1mm length, 1.7mm width, and 1.3mm height, the AP139-33WG-7 is ideal for compact PCB layouts requiring surface mount components. Operates with a minimum input voltage of 2.7V and maximum input voltage of 5.5V.
Designed for surface mount applications with a 5-pin SOT-25 package type. Features low dropout operation and a quiescent current of only 60μA. Compact dimensions: length 3.1mm, width 1.7mm, height 1.3mm. Maximum operating temperature of 85°C suitable for standard industrial environments.
Positive polarity regulator ensuring stable voltage output. No automotive compliance or additional approvals applicable. Ideal for applications requiring low noise and high power supply rejection ratio.
This voltage regulator is suitable for use in electronics, power management ICs, control systems, and embedded designs where stable voltage supply is critical. It offers an efficient solution for power regulation in consumer electronics, communication devices, and instrumentation equipment.
Explore more semiconductor and voltage regulator components from DiodesZetex and other top manufacturers in EnvMart’s Electronics & Electricals category.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AP139-33WG-7 provides a stable output voltage of 3.3V.
This voltage regulator can accept a maximum input voltage of 5.5V.
The minimum input voltage required for the AP139-33WG-7 to operate is 2.7V.
The power rating of the AP139-33WG-7 is 250mW.
This model has dimensions of 3.1mm in length, 1.7mm in width, and 1.3mm in height.
The quiescent current for the AP139-33WG-7 is only 60μA, making it suitable for low power applications.
The maximum operating temperature for the AP139-33WG-7 is 85°C.
This voltage regulator is housed in a compact 5-pin SOT-25 surface mount package.
The AP139-33WG-7 is a positive polarity regulator, ensuring stable voltage output.
No, this model does not have automotive compliance or additional approvals applicable.
The AP139-33WG-7 is suitable for use in electronics, power management ICs, control systems, and embedded designs requiring stable voltage supply.
This model is designed for surface mount applications.
