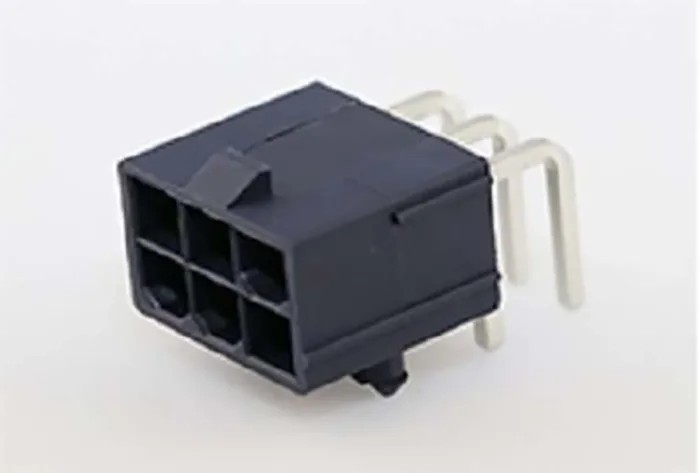

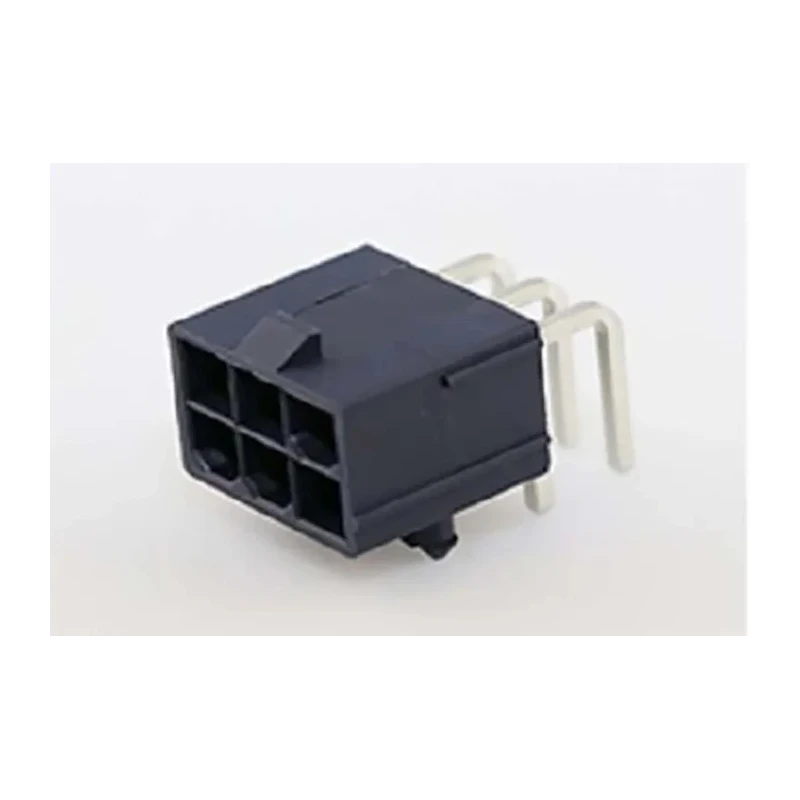

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header 6 Contacts 4.2 mm Pitch 2 Row Shrouded 1724480006
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 9A |
| Mount Type | Through Hole |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Cable |
| Tail Pin Length | 3.6mm |
Key Features
- Supports current capacity of up to 9A for efficient electrical connection.
- Constructed with brass contacts ensuring durability and conductivity.
- Designed for board-to-cable connection with solder termination and 3.6 mm tail pin length.
- Operating temperature range from -40° to +105°C for reliable performance under harsh conditions.
- Shrouded right angle configuration provides stable and secure mounting.
- Rated for 600V voltage insulation compliance and RoHS certified.
Product Description
Molex 1724480006 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a high-quality connector designed for board-to-cable applications with a dual row, 6 contact configuration at a standard 4.2 mm pitch. Crafted with brass contacts and a nylon resin body, this right angle shrouded PCB header offers robust electrical performance and mechanical stability.
The component supports a current rating of 9A and is designed for through hole mounting with solder termination, ensuring reliable signal and power transmission on printed circuit boards. Its operating temperature range from -40°C to 105°C makes it suitable for diverse industrial environments, including manufacturing, electronic assembly, and equipment repair.
The header’s shrouded design provides protection and secure mating to complementary connectors, while the 3.6 mm tail pin length facilitates stable PCB insertion and solder joint integrity. Rated for 600V, this product meets demanding voltage insulation requirements typical to power and electronic connector systems.
Manufactured in Mexico, the Molex Mini-Fit Jr Series is compliant with RoHS standards, making it environmentally compliant for industrial and commercial use. Supports current capacity of up to 9A for efficient electrical connection.
Constructed with brass contacts ensuring durability and conductivity. Designed for board-to-cable connection with solder termination and 3.6 mm tail pin length. Operating temperature range from -40° to +105°C for reliable performance under harsh conditions.
Shrouded right angle configuration provides stable and secure mounting. Rated for 600V voltage insulation compliance and RoHS certified.
This PCB header is ideal for industrial electronics, manufacturing, laboratory equipment, and other electronic component assembly requiring robust, reliable connectors with precise mechanical dimensions.
Explore more specialized PCB Headers and connectors by Molex and related products in the Electronics Components category on EnvMart for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of up to 9A, ensuring efficient electrical connection.
It is rated for 600V voltage insulation compliance, suitable for power and electronic connector systems.
The operating temperature range is from -40°C to +105°C, making it reliable under harsh conditions.
This model features 6 contacts, arranged in a dual row configuration.
It is designed for solder termination, ensuring reliable signal and power transmission.
The contacts are spaced at a standard pitch of 4.2 mm.
The contacts are constructed from brass, which ensures durability and conductivity.
The tail pin length is 3.6 mm, facilitating stable PCB insertion and solder joint integrity.
This model features a right angle orientation, providing stable and secure mounting.
Yes, this PCB header is RoHS certified, making it environmentally compliant for industrial use.
It is manufactured in Mexico, ensuring adherence to quality standards.
It utilizes a board-to-cable connector system, suitable for various electronic applications.
