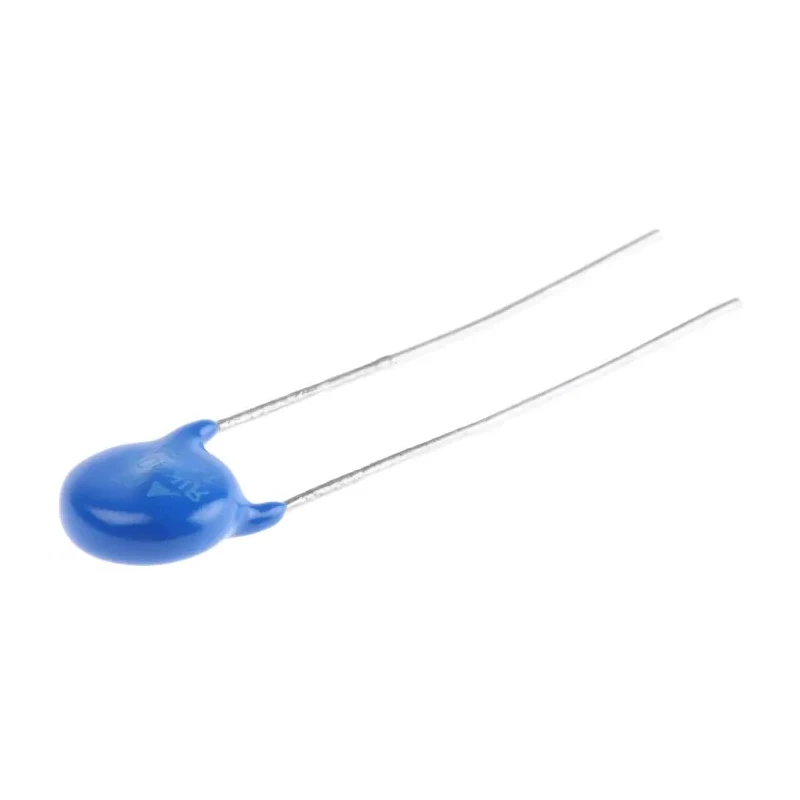

TDK Standard Metal Oxide Varistor 470 V Varistor Voltage, Clamping Current 10 A, Clamping Voltage 2970 V B72207S0301K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 470 V Varistor Voltage, Clamping Current 10 A, Clamping Voltage 2970 V B72207S0301K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	9mm
Brand	TDK
THICKNESS	4.5mm
Length	36mm
Model	B72207S0301K101
Depth	4.5mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	100pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	UL, VDE, CSA, CQC, IEC
Lead Pitch	5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	10A
Maximum Surge Current	1.2kA
Varistor Voltage	470 V
VE zinc oxide varistor, 300Vrms 80JBrand	AVX
Panasonic, V Surge Absorber 10 A, Clamping 775 VBrand	Panasonic

Key Features

This varistor has a clamping voltage of 2970 V, suitable for high energy surge absorption.
Features a capacitance of 100 pF, optimizing performance in sensitive electronics.
Constructed with a ceramic body coated with epoxy resin and tinned copper wire leads for durability.
Supports maximum AC voltage of 1100 V and maximum DC voltage of 1465 V for versatile applications.
Operates reliably over a temperature range from -40°C to 85°C, ensuring stability in varied environments.
Standard radial epoxy-coated MOV design facilitates easy assembly with a 5 mm lead pitch.
Complies with UL, VDE, CSA, CQC, and IEC approvals for industrial and commercial use.
Energy rating of 1 Joule supports effective transient surge suppression.

Product Description

TDK B72207S0301K101 Standard Metal Oxide Varistor is designed to provide effective surge protection for electronic devices and industrial systems. This metal oxide varistor has a varistor voltage rating of 470 V and can handle a clamping current of 10 A, with a clamping voltage of 2970 V, making it ideal for absorbing transient voltage spikes and safeguarding sensitive components.

The device features a capacitance of 100 pF which ensures minimal interference in electronic circuits. Its epoxy-coated ceramic body combined with tinned copper leads offers robustness and reliability in harsh environments. The varistor is rated for a maximum AC voltage of 1100 V and maximum DC voltage of 1465 V, suitable for a wide range of AC and DC surge protection applications.

Operating temperature range from -40°C to 85°C allows usage in diverse industrial, commercial, and laboratory conditions. The standard design with a 5 mm lead pitch enables straightforward mounting and assembly into circuits. The varistor complies with international standards including UL, VDE, CSA, CQC, and IEC approvals, ensuring quality and safety compliance.

With an energy rating of 1 Joule and maximum surge current rating of 1.2 kA, this varistor effectively attenuates transient surges caused by lightning, switching, or other electrical disturbances. It is suitable for use in power supply surge protection, electronic component safeguarding, and other industrial applications requiring reliable transient voltage suppression.

This varistor has a clamping voltage of 2970 V, suitable for high energy surge absorption. Features a capacitance of 100 pF, optimizing performance in sensitive electronics. Constructed with a ceramic body coated with epoxy resin and tinned copper wire leads for durability.

Supports maximum AC voltage of 1100 V and maximum DC voltage of 1465 V for versatile applications. Operates reliably over a temperature range from -40°C to 85°C, ensuring stability in varied environments. Standard radial epoxy-coated MOV design facilitates easy assembly with a 5 mm lead pitch.

Complies with UL, VDE, CSA, CQC, and IEC approvals for industrial and commercial use. Energy rating of 1 Joule supports effective transient surge suppression. Ideal for use in electronic components, power supply surge protection, and industrial electrical systems.
