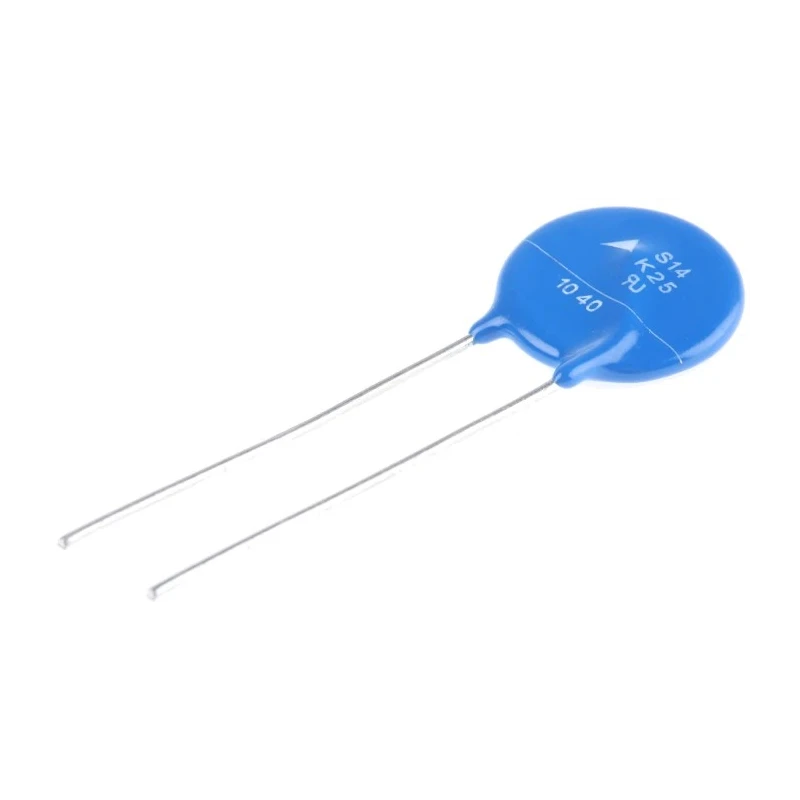

TDK Standard Metal Oxide Varistor 5.85 nF 10 A Clamping Voltage 2970 V Varistor Voltage 39 V B72214S0250K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 5.85 nF 10 A Clamping Voltage 2970 V Varistor Voltage 39 V B72214S0250K101



Category Varistors Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	15.5mm
Brand	TDK
THICKNESS	4.2mm
Length	43.5mm
Model	B72214S0250K101
Depth	4.2mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	5.85nF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	UL, CQC, IEC, CSA, VDE
Pin Count	2
Lead Pitch	7.5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	10A
Maximum Surge Current	1kA
Varistor Voltage	39 V
Littelfuse, ZA Metal Oxide Varistor 7nF 10A, Clamping 76V, Varistor 43VBrand	Littelfuse
Wurth Elektronik, WE-VD Varistor 7.62 nF 10 A, Clamping 77 V, Varistor 39 VBrand	Wurth Elektronik
Panasonic, V Surge Absorber 7 nF 10 A, Clamping 1815 V, Varistor 39 VBrand	Panasonic

Key Features

This metal oxide varistor is designed with a rated varistor voltage of 39 V for efficient voltage clamping.
It features a clamping voltage of 2970 V and supports a maximum surge current of 1 kA.
The varistor is equipped with lead mount type and features a standard epoxy-coated ceramic body with tinned copper leads.
Capacitance of 5.85 nF and pin count of 2 ensure compatibility with various electronic circuits.
Operational temperature range is from -40°C to 85°C, suitable for diverse industrial applications.
Physical dimensions include 15.5 mm diameter, 43.5 mm length, 4.2 mm thickness, and a lead pitch of 7.5 mm.
It complies with UL, CQC, IEC, CSA, and VDE standards, ensuring safety and quality.

Product Description

TDK B72214S0250K101 is a Standard Metal Oxide Varistor designed for effective surge protection in electronic circuits. This component features a capacitance of 5.85 nF and a clamping current rating of 10 A, making it suitable for safeguarding sensitive devices against voltage spikes.

The varistor voltage is rated at 39 V, with a clamping voltage of 2970 V, capable of handling surge currents up to 1 kA. It is mounted using lead type connections, with tinned copper wire leads and an epoxy resin-coated ceramic body for durability and reliable performance under various environmental conditions.

Operating temperature ranges from -40°C to 85°C, which allows usage in industrial, manufacturing, and electrical applications where temperature variations occur. Physical dimensions are compact with a diameter of 15.5 mm, length of 43.5 mm, thickness of 4.2 mm, and a lead pitch of 7.5 mm, facilitating integration into standard circuit designs.

Certified to meet UL, CQC, IEC, CSA, and VDE safety standards, this varistor is a trusted component for power supply surge protection, industrial electronics, and other demanding environments. It is a standard series metal oxide varistor, epoxy coated for enhanced reliability and extended operational life.

This metal oxide varistor is designed with a rated varistor voltage of 39 V for efficient voltage clamping. It features a clamping voltage of 2970 V and supports a maximum surge current of 1 kA. The varistor is equipped with lead mount type and features a standard epoxy-coated ceramic body with tinned copper leads.

Capacitance of 5.85 nF and pin count of 2 ensure compatibility with various electronic circuits. Operational temperature range is from -40°C to 85°C, suitable for diverse industrial applications. Physical dimensions include 15.5 mm diameter, 43.5 mm length, 4.2 mm thickness, and a lead pitch of 7.5 mm.

It complies with UL, CQC, IEC, CSA, and VDE standards, ensuring safety and quality.

This component is ideal for applications in electronics manufacturing, power supply circuits, industrial equipment, and surge protection modules. The robust construction and certified compliance make it suitable for professional and industrial use.

Explore our electronics components category at EnvMart for more reliable varistor and surge protection solutions to meet your industrial requirements.
