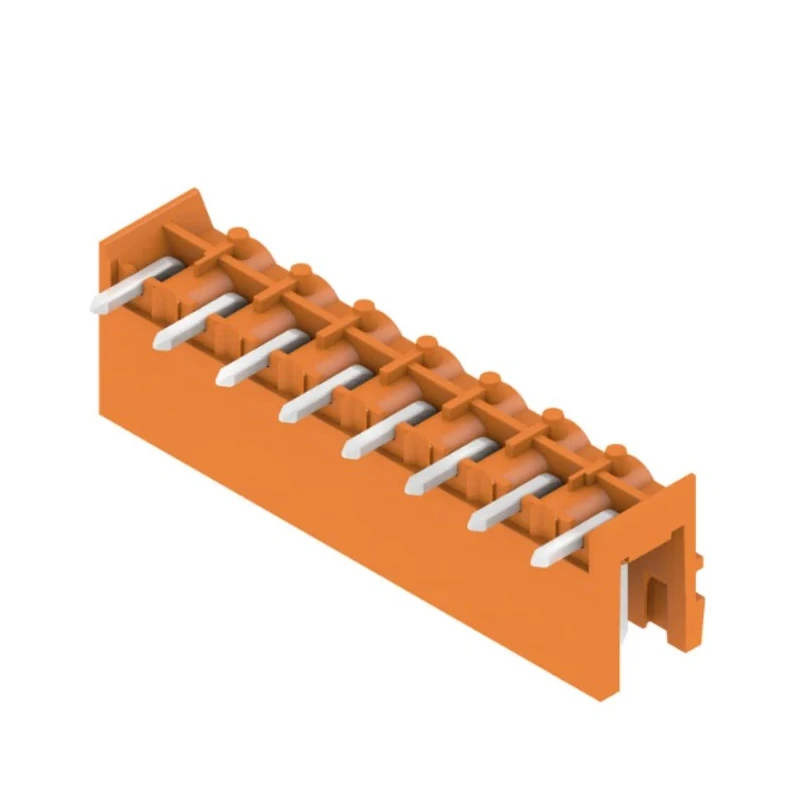

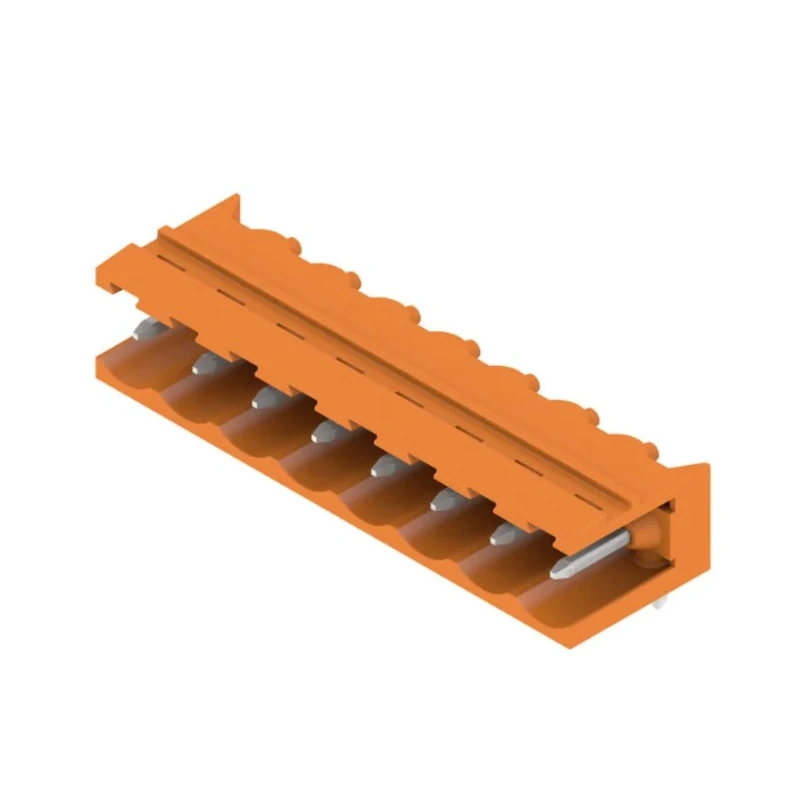

Weidmuller SL Series Pluggable Terminal Block, 8 Contacts, 5.08 mm Pitch, 18A Current, 400V, Right Angle, Solder 1146850000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmuller |
| Colour | Orange |
| Orientation | Right Angle |
| Current | 18A |
| Length | 3.2mm |
| Depth | 12mm |
| Width | 40.44mm |
| Housing Material | Polybutylene Terephthalate |
| Series | SL |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | CSA, cURus |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Constructed with polybutylene terephthalate housing for durability.
- Right angle orientation optimizes space in electrical assemblies.
- Solder wire connection method ensures secure electrical contacts.
- Complies with CSA and cURus standards for safety.
- Bright orange color enhances wiring visibility and organization.
- Compact dimensions and single row design simplify integration.
- Operates safely over a wide temperature range from -50 to 100 °C.
- Compatible with automation systems, electrical panels, and circuit boards.
Product Description
Weidmüller 1146850000 SL Series pluggable terminal block features 8 contacts with a precise 5.08 mm pitch and is engineered to handle currents up to 18A and voltages up to 400V. This right-angle positioned terminal block uses a solder connection method ensuring robust electrical contact and reliable installation in wave soldering processes. Its polybutylene terephthalate housing provides mechanical strength and heat resistance suitable for industrial, automation, and electrical panel applications.
The terminal block's compact design with a width of 40.44mm and depth of 12mm allows space-saving layouts with easy integration into circuit boards and machinery controls. The bright orange insulating material improves wiring organization and identification, while its IP20 protection level offers adequate dust protection, enhancing durability in manufacturing and HVAC environments. Certified to CSA and cURus standards, it meets industry safety and quality expectations.
This product is ideal for automated control systems, industrial electrical installations, and other high-current applications requiring dependable wire-to-board connections. Users can manually code the terminal block or order pre-coded versions for installation convenience. The terminal block performs reliably in harsh environments from -50 to 100 °C, ensuring consistent performance across varying conditions.
High current rating of 18A supports demanding electrical loads. Durable polybutylene terephthalate housing offers excellent insulation and mechanical strength. Right angle design enables optimized PCB layouts and reduced footprint.
Solder connection method protects joints and ensures stability during wave soldering. Complies with international standards CSA and cURus for assured reliability. Bright orange color improves visibility, facilitating easy wiring and maintenance.
Single row with 8 contacts allows ample wiring capacity. Designed for use in industrial automation, electrical panels, HVAC, manufacturing, and other commercial environments.
Set contains one 8-contact Pluggable Terminal Block with 5.08 mm pitch, ready for integration in various electrical and industrial projects. Manufactured in Germany, this component demonstrates Weidmüller's commitment to quality and performance.
Explore more electronic components and connectors to complement your application on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pluggable terminal block can handle currents up to 18A and voltages up to 400V.
The contacts in this terminal block are spaced at a pitch of 5.08 mm.
It is constructed with polybutylene terephthalate housing, which provides mechanical strength and heat resistance.
The terminal block has a width of 40.44 mm, a depth of 12 mm, and a length of 3.2 mm.
It uses a solder connection method to ensure robust electrical contacts.
This model features a right angle orientation, optimizing space in electrical assemblies.
It complies with CSA and cURus standards for safety and quality assurance.
It operates safely over a wide temperature range from -50 to 100 °C.
This terminal block features 8 contacts.
It is bright orange, which enhances wiring visibility and organization.
It is suitable for industrial automation, electrical panels, and other high-current applications requiring dependable wire-to-board connections.
This terminal block is manufactured in Germany.
