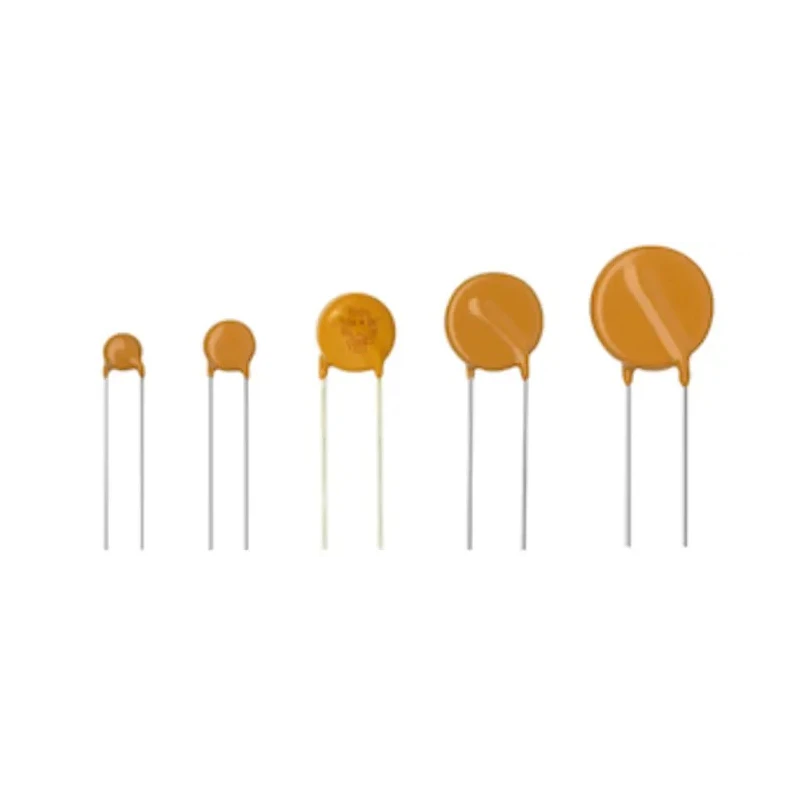

Vishay Metal Oxide Varistor Disc 440pF 50A Clamping 710V Varistor Voltage 430V Through Hole VDRS Series VDRS14T275BSE
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 16.5mm |
| Brand | Vishay |
| THICKNESS | 5.4mm |
| Length | 35mm |
| Model | VDRS14T275BSE |
| Mount Type | Through Hole |
| Series | VDRS |
| Energy Rating | 496J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 440pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 895V dc |
| Package/Case | Disc |
| Pin Count | 2 |
| Termination Style | Radial |
| Lead Pitch | 7.5mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 710V |
| Clamping Current | 50A |
| Maximum Surge Current | 4.5kA |
| Varistor Voltage | 430 V |
Key Features
- This varistor has a capacitance of 440 pF, suitable for transient voltage suppression.
- It supports a maximum clamping current of 50 A to handle high surge currents.
- The device features a through-hole mount type for easy PCB installation.
- Operating temperature ranges from -40°C to 85°C, ensuring performance stability in various environments.
- The varistor diameter is 16.5 mm with a thickness of 5.4 mm and a length of 35 mm.
- It complies with international standards including IEC 61051-2-2, VDE, IEC 61051-1, UL 1449, and CSA for reliable safety and quality.
- Energy rating of 496J enables robust energy absorption during surges.
- The termination style is radial with a lead pitch of 7.5 mm for secure connection.
Product Description
Vishay VDRS14T275BSE Metal Oxide Varistor Disc is a high-quality surge protection component engineered to safeguard sensitive electronic circuits. Featuring a varistor voltage of 430 V and an impressive clamping voltage of 710 V, this varistor is ideal for transient voltage suppression in industrial and electronic applications.
Constructed with a 440 pF capacitance zinc oxide disc and a halogen-free insulating epoxy coating, it offers excellent energy absorption capabilities with a 496J energy rating, ensuring robust defense against voltage spikes.
This component operates reliably within a temperature range of -40°C to 85°C, making it suitable for a wide variety of environmental conditions. It features a through-hole mount and radial termination style for convenient installation on printed circuit boards.
Compliant with international standards such as IEC 61051-2-2, VDE, IEC 61051-1, UL 1449, and CSA, the VDRS14T275BSE guarantees safety and performance meeting global certification requirements.
Its physical dimensions of 16.5 mm diameter, 5.4 mm thickness, and 35 mm length, along with a 7.5 mm lead pitch, facilitate integration into compact electronic assemblies. This varistor suppresses transient voltages effectively with 430 V varistor voltage and 710 V clamping voltage.
Capable of withstanding surge currents up to 50 A and maximum surge current of 4.5 kA. Designed for through-hole mounting with radial termination ensures reliable electrical connections. Supports AC voltage up to 680 V and DC voltage up to 895 V to meet diverse operational needs.
Operating temperature range from -40°C to 85°C ensures stable performance in harsh environments. Manufactured with a halogen-free zinc oxide disc for environmentally responsible applications. Energy rating of 496J provides durable protection against high-energy surges.
Meets stringent international safety and quality standards including IEC, VDE, UL, and CSA.
This product is widely used in industrial electronics, power supply protection, telecommunications, consumer electronics, and HVAC systems to prevent damage due to voltage surges and electrical transients. The disc form factor and standardized lead pitch allow for straightforward replacement and maintenance in existing circuit designs.
Explore more high-quality electronic components and Varistors in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The varistor voltage of this model is 430 V, making it suitable for transient voltage suppression applications.
It can handle a maximum clamping current of 50 A, which is essential for managing high surge currents.
The varistor has a diameter of 16.5 mm, a thickness of 5.4 mm, and a length of 35 mm, allowing for easy integration into electronic assemblies.
This varistor has an energy rating of 496 J, which enables it to absorb significant energy during voltage surges.
The operating temperature range for this model is from -40°C to 85°C, ensuring stable performance in various environments.
It features a through-hole mount type, facilitating easy installation on printed circuit boards.
This model can withstand a maximum surge current of 4.5 kA, providing robust protection against voltage spikes.
It supports a maximum AC voltage of 680 V and a maximum DC voltage of 895 V, accommodating diverse operational needs.
The termination style is radial, with a lead pitch of 7.5 mm, ensuring secure connections during installation.
It complies with several international standards including IEC 61051-2-2, VDE, IEC 61051-1, UL 1449, and CSA, ensuring safety and quality.
This varistor is widely used in industrial electronics, power supply protection, telecommunications, consumer electronics, and HVAC systems to prevent damage from voltage surges.
The capacitance of this model is 440 pF, which is suitable for transient voltage suppression.
