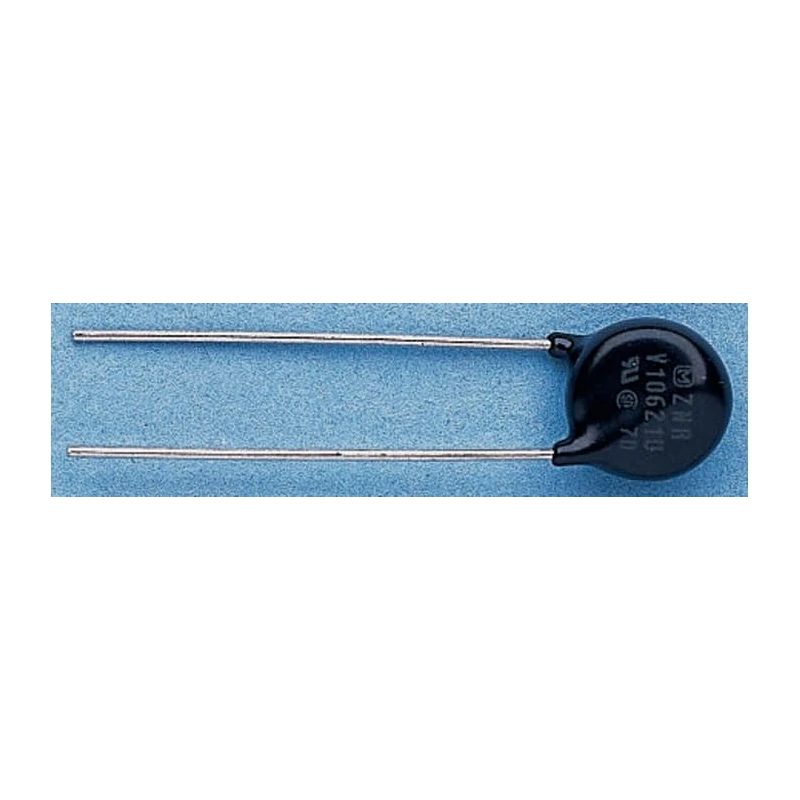

Panasonic E Surge Absorber Varistor 500 pF Capacitance 100 A Clamping Current 1355 V Clamping Voltage ERZE14A821
Specifications
| Country of Origin | Indonesia |
|---|---|
| Diameter | 17.5mm |
| Brand | Panasonic |
| THICKNESS | 8.5mm |
| Length | 40.5mm |
| Model | ERZE14A821 |
| Packaging | Bulk |
| Series | E |
| Energy Rating | 460J |
| Maximum Operating Temperature | 85°C |
| Capacitance | 500pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 670V dc |
| Standards/Approvals | CQC, VDE, UL 1449 |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 510V ac |
| Clamping Voltage VC | 1355V |
| Clamping Current | 100A |
| Maximum Surge Current | 7.5kA |
| Varistor Voltage | 820 V |
Key Features
- Capacitance of 500 pF ensures effective voltage transient absorption.
- Clamping current rating of 100 A provides high surge current handling capability.
- Clamping voltage set at 1355 V for robust circuit protection.
- Compact dimensions with 40.5 mm length and 17.5 mm diameter.
- Wide operating temperature range from -40°C to 85°C suitable for various environments.
- Mounting lead pitch of 10 mm for easy PCB integration.
- Energy rating of 460 joules supports large energy surges.
- Complies with CQC, VDE, UL 1449 standards for quality and safety.
Product Description
Panasonic ERZE14A821 E Surge Absorber is a metal oxide varistor specifically designed to protect sensitive electronic components from voltage surges and transient overvoltages. Featuring a capacitance of 500 pF, it efficiently absorbs transient voltages while its clamping current rating of 100 A ensures it can withstand high surge currents without damage. This varistor clamps voltage peaks at 1355 V, making it ideal for protecting circuits in industrial, electronic manufacturing, and power supply applications.
Its compact cylindrical shape, with a diameter of 17.5 mm and length of 40.5 mm, allows easy mounting on printed circuit boards via a 10 mm lead pitch. Operating temperature ranges from -40°C to 85°C, ensuring reliable performance even in harsh environments. The product meets international standards including CQC, VDE, and UL 1449, certifying its quality and safety compliance.
The ERZE14A821 varistor features a maximum AC voltage of 510 V and maximum DC voltage of 670 V, with an energy rating of 460 J, supporting absorption of significant surge energy. It is suitable across various industrial sectors including electronics manufacturing, power electronics, and automation systems where protection from electrical surges is critical.
Capacitance of 500 pF ensures effective voltage transient absorption. Clamping current rating of 100 A provides high surge current handling capability. Clamping voltage set at 1355 V for robust circuit protection. Compact form factor with 17.5 mm diameter and 40.5 mm length.
Operating temperature from -40°C to 85°C for reliability in diverse conditions. Lead pitch of 10 mm for straightforward PCB installation. Energy rating of 460 J allows absorption of large surge energies. Compliant with CQC, VDE, and UL 1449 international standards.
Bulk packaging intended for industrial and manufacturing applications. Explore more surge protection components and Varistors at EnvMart for your electronic application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 500 pF, which ensures effective voltage transient absorption.
The clamping current rating is 100 A, providing high surge current handling capability.
The clamping voltage is set at 1355 V, which helps in robust circuit protection.
The maximum AC voltage is 510 V and the maximum DC voltage is 670 V.
This varistor has an energy rating of 460 joules, supporting absorption of significant surge energy.
It has a diameter of 17.5 mm and a length of 40.5 mm, with a thickness of 8.5 mm.
The lead pitch is 10 mm, facilitating straightforward PCB installation.
The operating temperature range is from -40°C to 85°C, making it suitable for various environments.
It complies with CQC, VDE, and UL 1449 standards for quality and safety.
The maximum surge current rating is 7.5 kA, ensuring it can withstand high surge events.
This model is suitable for protecting circuits in industrial, electronic manufacturing, and power supply applications.
The varistor is packaged in bulk, intended for industrial and manufacturing applications.
