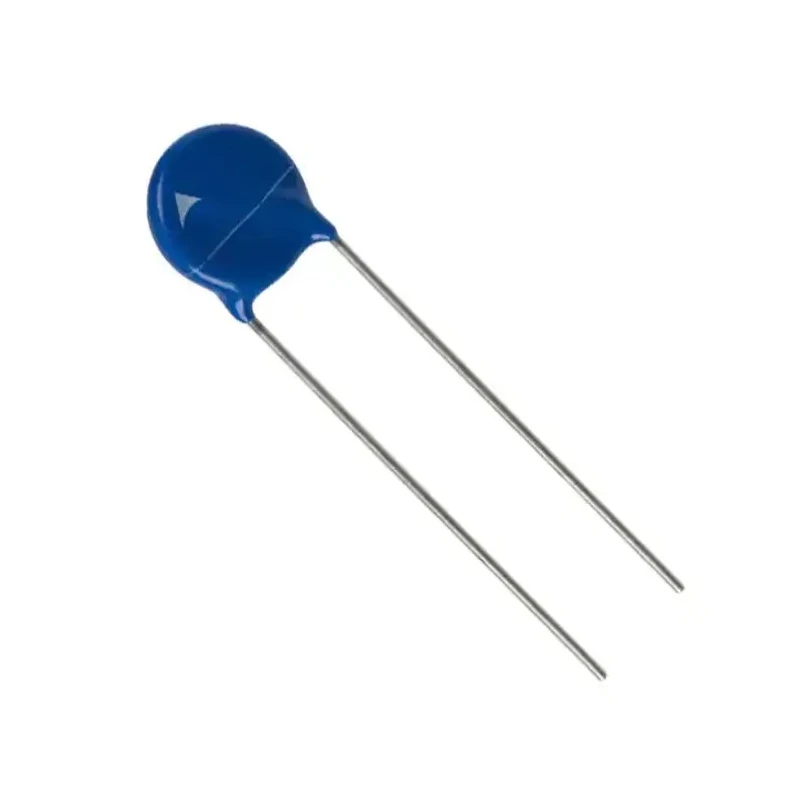

TDK StandardD Metal Oxide Varistor 160 pF, 25 A, Clamping Voltage 910 V, Varistor Voltage 560 V B72210S0351K101

Free Delivery in India | Lowest Global Shipping Charges

TDK StandardD Metal Oxide Varistor 160 pF, 25 A, Clamping Voltage 910 V, Varistor Voltage 560 V B72210S0351K101



Category Varistors Brand TDK Condition New

Specifications

Country of Origin	China
Diameter	12mm
Brand	TDK
THICKNESS	5.6mm
Length	15mm
Model	B72210S0351K101
Packaging	Tape & Reel
Mount Type	Through Hole
Series	StandardD
Maximum Operating Temperature	105°C
Capacitance	160pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	460V dc
Standards/Approvals	IEC, CSA, UL, VDE
Pin Count	2
Maximum AC Voltage	350V ac
Clamping Voltage VC	910V
Clamping Current	25A
Maximum Surge Current	2.5kA
Varistor Voltage	560 V

Key Features

Metal oxide varistor featuring 160 pF capacitance and 25 A clamping current.
Clamping voltage of 910 V ensures reliable surge protection.
Varistor voltage rated at 560 V for effective voltage suppression.
StandardD series, suitable for through-hole mounting and tape & reel packaging.
Maximum AC voltage of 350 V, maximum DC voltage of 460 V.
Diameter of 12 mm, thickness of 5.6 mm, length of 15 mm, and pin count of 2.
Wide operating temperature range from -40°C to 105°C.
Complies with IEC, CSA, UL, and VDE standards.

Product Description

TDK B72210S0351K101 StandardD Metal Oxide Varistor is engineered for robust surge protection in electronic circuits where reliability and performance are crucial. This varistor, belonging to TDK's StandardD series, is designed with a round varistor element and encapsulated in flame-retardant epoxy resin rated to UL 94 V-0. The device features tinned wire terminals for secure through-hole mounting.

With a capacitance of 160 pF and a clamping current of 25 A, it offers a clamping voltage of 910 V and a varistor voltage of 560 V, making it ideal for absorption of voltage transients and protection against electrical surges. Its design supports a maximum AC voltage of 350 V and a maximum DC voltage of 460 V, with maximum surge current capacity up to 2.5 kA.

Metal oxide varistor featuring 160 pF capacitance and 25 A clamping current. Clamping voltage of 910 V ensures reliable surge protection. Varistor voltage rated at 560 V for effective voltage suppression. StandardD series, suitable for through-hole mounting and tape & reel packaging.

Maximum AC voltage of 350 V, maximum DC voltage of 460 V. Diameter of 12 mm, thickness of 5.6 mm, length of 15 mm, and pin count of 2. Wide operating temperature range from -40°C to 105°C. Complies with IEC, CSA, UL, and VDE standards.

Automotive standard not supported; origin is China.

This varistor is commonly utilized in industrial, manufacturing, consumer electronics, surge protection, and electrical applications where consistent voltage regulation and protection are necessary. Its compact dimensions (diameter 12 mm, thickness 5.6 mm, length 15 mm) and practical tape & reel packaging make it well-suited for automated assembly processes.

The StandardD series is recognized for its wide operating voltage range (11 - 1100 VRMS) and high surge current ratings of up to 8 kA, with no derating required up to 105 °C ambient temperature, supporting stable performance even in demanding environments. It complies with IEC, CSA, UL, and VDE certifications, ensuring its suitability for a range of regulated markets.

Choose this TDK metal oxide varistor for reliable surge protection, safe operation, and long-term durability in your next electronics project. Browse more TDK Varistors and surge protection components in the Electronics & Electricals category at EnvMart.
