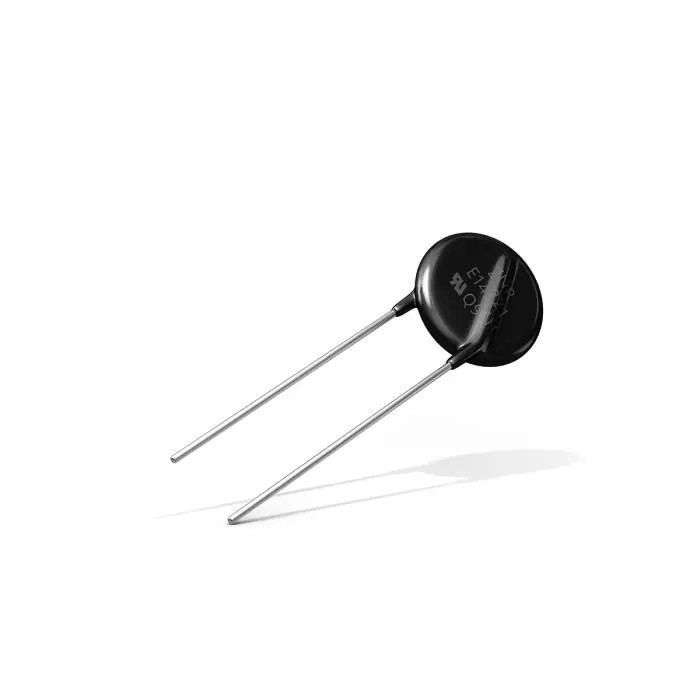

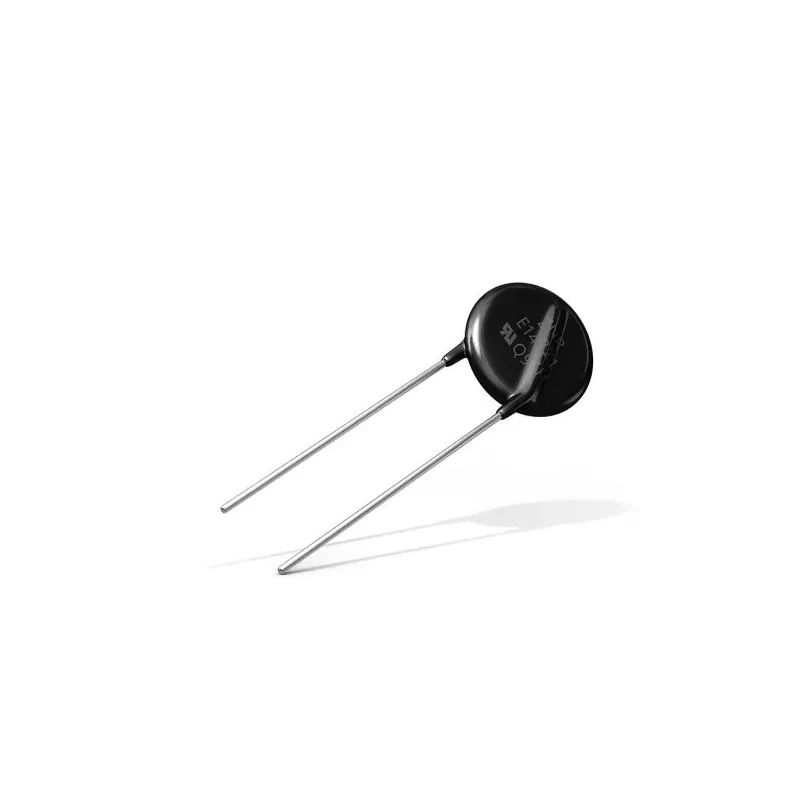

Panasonic E-S1 Surge Absorber 700pF 100A Clamping 1815V Varistor 560V ERZE14A561SC
Specifications
| Country of Origin | Indonesia |
|---|---|
| Diameter | 16.5mm |
| Brand | Panasonic |
| THICKNESS | 7.2mm |
| Length | 24.5mm |
| Model | ERZE14A561SC |
| Depth | 7.2mm |
| Packaging | Bulk |
| Series | E-S1 |
| Maximum Operating Temperature | 125°C |
| Capacitance | 700pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 170V dc |
| Pin Count | 2 |
| Termination Style | Straight Lead |
| Lead Pitch | 10mm |
| Maximum AC Voltage | 680V ac |
| Clamping Voltage VC | 1815V |
| Clamping Current | 100A |
| Maximum Surge Current | 7.5kA |
| Varistor Voltage | 560 V |
Key Features
- Equipped with a varistor voltage rating of 560 V for reliable transient mitigation.
- High clamping voltage of 1815 V ensures effective protection in demanding environments.
- Maximum surge current of 7.5 kA and clamping current of 100 A for exceptional energy handling.
- Features a capacitance of 700 pF for suppressing electrical spikes in consumer and industrial circuits.
- Designed for a wide temperature operating range from -40°C to 125°C, suitable for harsh conditions.
- Meets extensive international standards and approvals including C-UL, IEC, VDE, and UL.
- Applications include protection for electronic appliances, communication equipment, and industrial machines.
Product Description
Panasonic ERZE14A561SC surge absorber is a premium-grade protection device engineered to shield sensitive electronic components from transient overvoltage events. Part of the E-S1 series, this varistor-based surge absorber offers high capability for absorbing electrical surges while maintaining a compact footprint, making it ideal for densely packed circuit boards and robust industrial applications.
Featuring a varistor voltage of 560 V and a clamping voltage of 1815 V, the ERZE14A561SC effectively limits voltage spikes and transient disturbances, ensuring the integrity and reliability of electronic systems. Its maximum surge current rating of 7.5 kA and clamping current of 100 A allow the device to withstand heavy energy pulses without degradation, providing long-term protection against electrical transients.
With a capacitance of 700 pF, the surge absorber also assists in suppressing minor electrical noise, further stabilizing circuit operation. The device is constructed in a compact disc format with a diameter of 16.5 mm, length of 24.5 mm, and thickness/depth of 7.2 mm. It incorporates straight lead terminations suitable for through-hole mounting, facilitating integration into a variety of PCB layouts.
The operating temperature range extends from -40°C up to 125°C, making this surge absorber suitable for use in environments subject to harsh temperature fluctuations. Its robust design is certified to international standards and approvals, including C-UL, IEC60950-1 Annex.Q, VDE IEC61051-1, UL, UL1449 VZCA2, GB, CQC GB, GB8898, T10193, T10194, IEC62368-1, GB4943.1, and VZCA8, ensuring compliance with global quality and safety requirements.
The ERZE14A561SC is widely used for surge protection in consumer electronics, communication equipment, measuring and controller electronics, and home appliances, including gas and petroleum appliances. It protects semiconductors such as transistors, diodes, ICs, thyristors, and triacs from transient surges, safeguarding equipment from potential damage due to unpredictable voltage fluctuations.
Key technical specifications include a maximum AC voltage of 680 V, maximum DC voltage of 170 V, pin count of 2, minimum operating temperature of -40°C, lead pitch of 10 mm, and non-automotive standard compliance. Manufactured in Indonesia, the device demonstrates Panasonic's commitment to high-performance electronic protection components.
Engineers and technicians can rely on the Panasonic E-S1 Series ERZE14A561SC for high capability surge absorption and long-lasting circuit protection across industrial, laboratory, and commercial applications. Browse EnvMart's Varistors category for technical surge protection solutions tailored to your application requirements.
