| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 2.7mm |
| Model | MM3Z3V6B |
| Mount Type | Surface |
| Series | MM3 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323F |
| Minimum Operating Temperature | 65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 200mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 4.5μA |
| Nominal Zener Voltage Vz | 3.6V |
| Maximum Zener Impedance | 84Ω |
| Surface Mount case | SOD-323F |

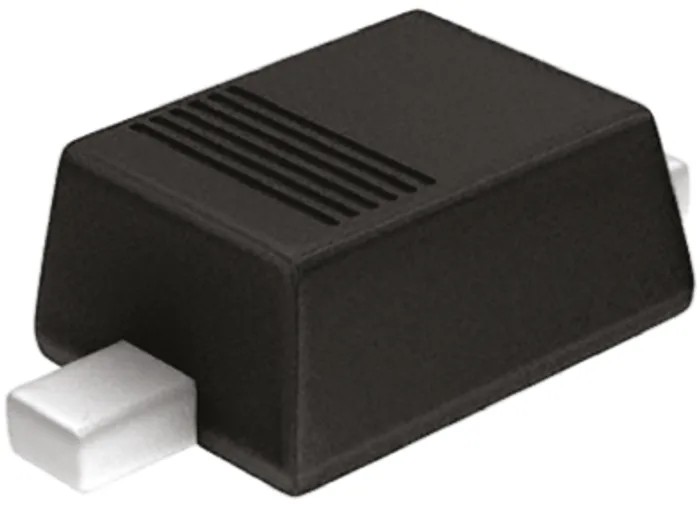

The onsemi MM3Z3V6B is a high-precision Zener diode with a nominal Zener voltage of 3.6 Volts, designed for use in electronic circuits requiring reliable voltage regulation. Packaged in a compact 2-pin SOD-323F surface mount case, this component delivers a maximum power dissipation of 200 mW, making it suitable for low power applications. It supports discrete semiconductor functions such as voltage clamping and reference voltage stabilization.
With a Zener voltage tolerance of ±2 %, the MM3Z3V6B ensures accurate performance across varied environmental conditions. The diode has a test current of 5 mA and a maximum impedance of 84 ohms, helping maintain consistent operation within regulated voltage circuits. Its low maximum reverse leakage current of 4.5 microamperes minimizes stray currents and improves overall efficiency.
Rated for operation across a broad temperature range from -65 to 150 degrees Celsius, this Zener diode is fit for industrial, commercial, and consumer electronics applications where durability and stability are paramount. Its small size (2.7 mm length and 1 mm height) allows for compact PCB layouts and high-density assemblies.
Nominal Zener voltage of 3.6 V with a tight 2 % tolerance for precision. 200 mW maximum power dissipation suitable for regulated voltage applications. Surface mount SOD-323F package facilitates modern automated assembly processes.
Operating temperature range from -65 °C to 150 °C ensures performance in extreme conditions. Low reverse leakage current improves power efficiency and circuit reliability. Compact dimensions optimize PCB space usage in compact devices.
This Zener diode is ideal for use in industrial electronics, power supplies, voltage regulators, and electronic instrumentation. The MM3 series by onsemi is recognized for quality and reliability in semiconductor applications.
