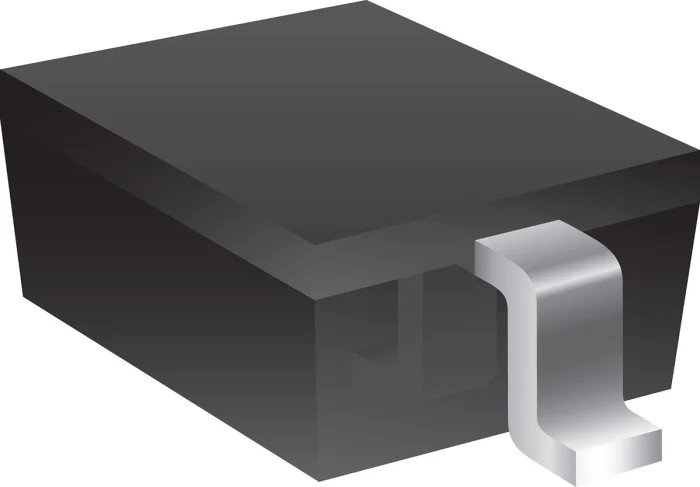

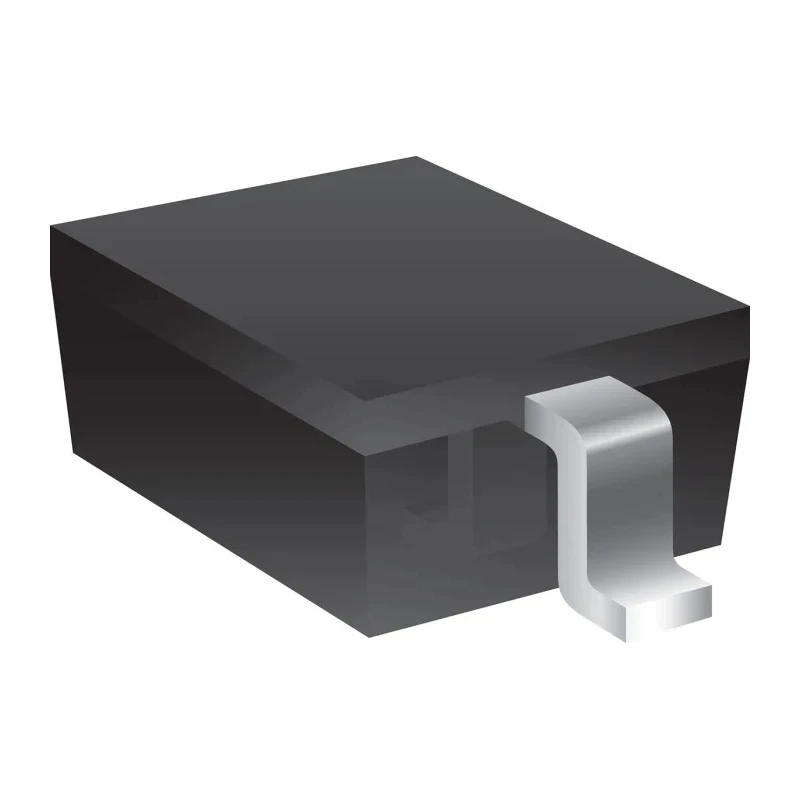

Bourns 1-Element Uni-Directional TVS Diode 500 W 2-Pin SOD-323 CDSOD323-T05S-Q
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Bourns |
| Height | 0.79mm |
| Length | 1.6mm |
| Model | CDSOD323-T05S-Q |
| Width | 1.15mm |
| Mount Type | Surface |
| Series | CDSOD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.8V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 42A |
| Maximum Reverse Leakage Current | 10μA |
Key Features
- Uni-directional diode configuration suitable for transient voltage suppression.
- Peak pulse power dissipation of 500 W ensures robust surge protection.
- Breakdown voltage of 6 V with maximum reverse stand-off voltage of 5 V.
- Clamping voltage is 9.8 V to clamp voltage spikes effectively.
- Surface mount SOD-323 package measures 1.6 mm length and 1.15 mm width.
- Operating temperature range from -55°C up to 150°C supports harsh environments.
- Designed for protection of power buses, I/O interfaces, and transient voltage spikes.
- Complies with automotive standard AEC-Q101 ensuring reliability.
Product Description
Bourns CDSOD323-T05S-Q is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode that delivers 500 W of peak pulse power dissipation. Housed in a compact 2-pin SOD-323 surface mount package, it is designed to protect electronic equipment from transient voltage spikes and electrostatic discharge events.
This diode features a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5 V, with an effective clamping voltage of 9.8 V. It supports a maximum peak pulse current of 42 A and offers ESD protection up to 30 kV, making it suitable for safeguarding sensitive power buses and I/O interfaces in portable communications, computing, video equipment, and industrial electronics.
Operating across a temperature range from -55°C to 150°C, this device meets the AEC-Q101 automotive standard, ensuring durability and reliability under demanding conditions. The SOD-323 package minimizes board space and is compatible with standard pick and place assembly equipment.
Key features include a single-element diode configuration optimized for uni-directional transient suppression, low reverse leakage current of 10 μA, and a flat configuration to prevent roll-away during automated placement.
Uni-directional diode configuration for transient voltage protection. 500 W peak pulse power dissipation capacity. Compact 2-pin SOD-323 surface mount package. Breakdown voltage of 6 V and stand-off voltage of 5 V. Clamping voltage of 9.8 V effectively limits voltage spikes.
Supports ESD protection up to 30 kV maximum. Meets automotive standard AEC-Q101 for high reliability. Small dimensions: length 1.6 mm, width 1.15 mm, height 0.79 mm. Operating temperature range from -55°C to 150°C. Applications include protection of power buses, I/O interfaces, and overvoltage transient protection.
This device is ideally suited for industrial, automotive, telecommunications, computing, and consumer electronic applications requiring compact, high-performance surge suppression. For comprehensive product details and design considerations, Bourns provides technical documents and design tools.
Explore our extensive selection of semiconductor components at EnvMart to find the right TVS Diodes and other electronic protection solutions.
