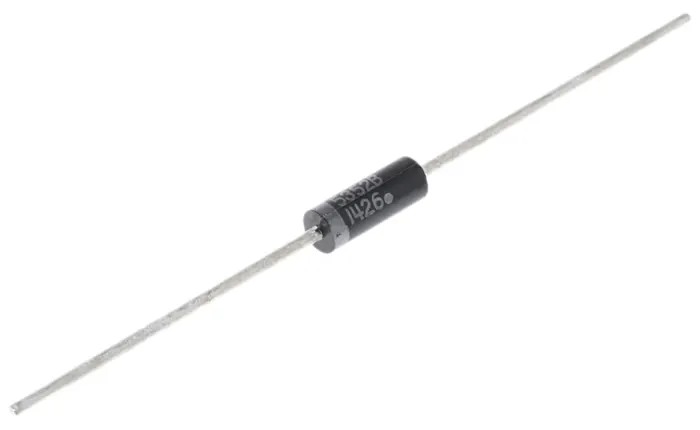

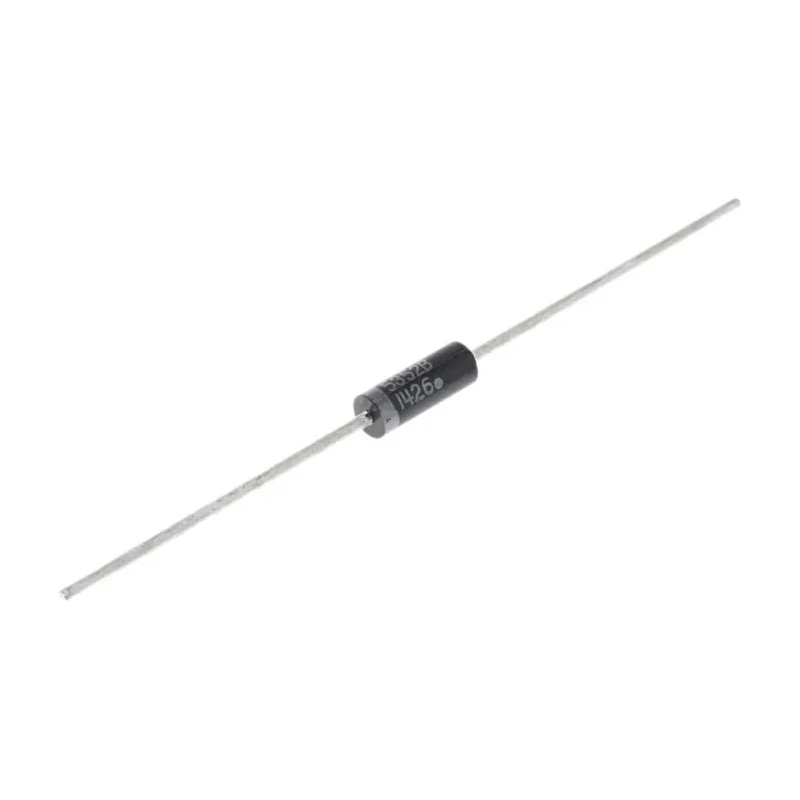

onsemi 1N5352BRLG 15 V Zener Diode 5 W Through Hole 2-Pin DO-15
Specifications
| Country of Origin | China |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5352BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 75mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2.5Ω |
Key Features
- Nominal Zener voltage is 15 volts with a tolerance of ±5%.
- The device supports a maximum power dissipation of 5 watts ensuring reliable voltage regulation.
- It features a molded thermosetting plastic package, providing excellent corrosion resistance and environmental protection.
- The two-pin axial leaded design allows easy installation in through hole circuits.
- Operating temperature ranges from -65°C to 200°C suitable for harsh industrial applications.
- Maximum reverse leakage current is 1 microampere ensuring low leakage and stable performance.
- Test current is 75 milliamps with maximum zener impedance of 2.5 ohms.
- Designed as a voltage regulator providing stable voltage in power electronics circuits.
Product Description
onsemi 1N5352BRLG is a 15 V Zener diode designed for industrial voltage regulation applications, dissipating up to 5 watts of power. This single element discrete semiconductor device comes in a DO-15 axial leaded package for through hole mounting, featuring a robust molded thermosetting plastic construction that offers excellent durability and corrosion resistance.
The diode's nominal zener voltage of 15 volts with ±5% tolerance ensures precise voltage regulation under varying load conditions. It has a maximum operating temperature limit of 200°C and a minimum of -65°C, making it suitable for extreme environmental conditions commonly encountered in manufacturing, industrial, and power supply circuits.
The device exhibits low leakage current (maximum 1 µA) and a zener impedance of 2.5 Ω at the specified test current of 75 mA, ensuring stable and reliable performance. Physically, it measures 8.89 mm in length and 3.68 mm in height, which fits compact PCB designs.
Applications of the 1N5352BRLG diode include industrial power supplies, voltage regulation circuits, and semiconductor protection. Its corrosion resistant package and easy-to-solder leads facilitate long-lasting installation in electronic and power equipment.
Nominal Zener voltage of 15 V with ±5% tolerance. Power dissipation capability of 5 W for high reliability. Through hole mount DO-15 package with 2 pins for easy installation. Operating temperature range from -65°C to 200°C.
Low maximum reverse leakage current of 1 µA ensuring energy efficiency. Compact dimensions: length 8.89 mm and height 3.68 mm. Robust molded thermosetting plastic package for environmental protection. Test current of 75 mA with maximum zener impedance of 2.5 ohms.
Ideal for industrial and commercial voltage regulation applications. Explore the wide range of onsemi Zener Diodes at EnvMart for robust and efficient semiconductor components designed for varied industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 15 volts with a tolerance of ±5%.
It supports a maximum power dissipation of 5 watts, ensuring reliable voltage regulation.
The operating temperature range is from -65°C to 200°C, making it suitable for harsh industrial applications.
The maximum reverse leakage current is 1 microampere, ensuring low leakage and stable performance.
It comes in a DO-15 axial leaded package, designed for through hole mounting.
The diode measures 8.89 mm in length and 3.68 mm in height.
The test current is 75 milliamps, with a maximum zener impedance of 2.5 ohms.
It is suitable for applications such as industrial power supplies, voltage regulation circuits, and semiconductor protection.
This model has 2 pins, facilitating easy installation in circuits.
The zener type of this diode is a voltage regulator, designed for stable voltage output.
The package is made of molded thermosetting plastic, providing excellent corrosion resistance and environmental protection.
Yes, it is a single element discrete semiconductor device.
