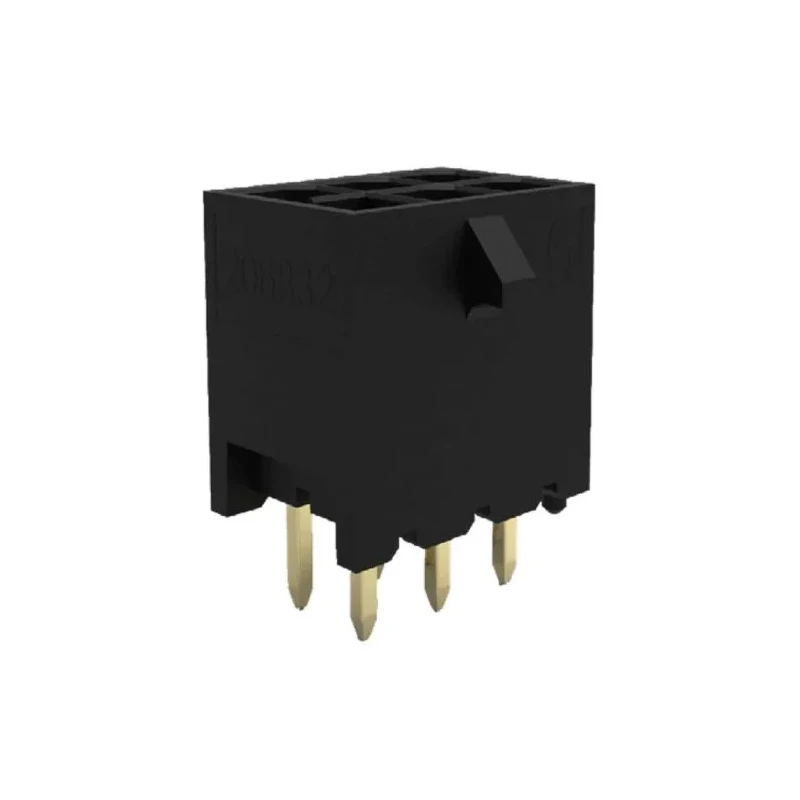

Molex Micro-Fit Series Vertical Through Hole PCB Header 14 Contacts 3 mm Pitch 2 Row Shrouded 206832-1402
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 12.5A |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | Micro-Fit |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
Key Features
- This header features a vertical orientation ideal for wire-to-board connections.
- The housing is made of black liquid crystal polymer providing durability and heat resistance.
- Copper alloy contacts with gold plating ensure reliable electrical connectivity.
- Supports a maximum current of 12.5A and voltage rating of 600V.
- The tail pin length is 3.18 mm for secure solder termination.
- Operating temperature ranges from -40°C to 105°C for stable performance in varied environments.
- Mounting type is through hole, compatible with standard PCB manufacturing processes.
- Shrouded design enhances contact protection and prevents pin damage.
Product Description
Molex 206832-1402 Micro-Fit Series vertical through hole PCB header is a high-quality connector designed for reliable wire-to-board applications. The connector features 14 male contacts arranged in 2 rows with a 3 mm pitch, providing dense and effective PCB connectivity.
The housing material is a robust black liquid crystal polymer (LCP) ensuring excellent electrical insulation and mechanical strength. The contacts are made of copper alloy and plated with gold for superior conductivity and corrosion resistance, complemented by a matte tin termination plating for easy soldering.
This PCB Header supports a maximum operating voltage of 600 V and a current rating of 12.5 A, suitable for demanding industrial and commercial electronics applications. Its operating temperature range spans from -40°C to +105°C, allowing stable operation under harsh conditions.
The vertical orientation and through-hole mounting type facilitate secure installation and strong mechanical bonding to the PCB. The shrouded design protects the contacts from external damage and ensures reliable mating with compatible connectors. The tail pins extend 3.18 mm for optimal solder joint quality.
This Molex Micro-Fit header series is RoHS compliant and halogen-free, supporting environmentally responsible manufacturing. It is ideal for use in industrial electronics, control systems, instrumentation, telecommunications, and other electronic assembly contexts that require robust and compact PCB connectors.
This header features a vertical orientation ideal for wire-to-board connections. The housing is made of black liquid crystal polymer providing durability and heat resistance. Copper alloy contacts with gold plating ensure reliable electrical connectivity.
Supports a maximum current of 12.5A and voltage rating of 600V. The tail pin length is 3.18 mm for secure solder termination. Operating temperature ranges from -40°C to 105°C for stable performance in varied environments.
Mounting type is through hole, compatible with standard PCB manufacturing processes. Shrouded design enhances contact protection and prevents pin damage. Explore more high-performance PCB connectors and components at EnvMart for your industrial, manufacturing, and electronics project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 12.5A and a voltage rating of 600V.
The model features a 3 mm pitch and has 14 male contacts arranged in 2 rows.
The housing is made of black liquid crystal polymer, which provides durability and heat resistance.
The tail pin length is 3.18 mm, ensuring secure solder termination.
It operates within a temperature range of -40°C to +105°C, allowing stable performance in varied environments.
This model uses a through hole mounting type, compatible with standard PCB manufacturing processes.
This connector system is designed for wire-to-board connections.
The contacts are made of copper alloy and are plated with gold for superior conductivity and corrosion resistance.
Yes, this header is RoHS compliant and halogen-free, supporting environmentally responsible manufacturing.
The shrouded design enhances contact protection and prevents pin damage during use.
The combination of copper alloy contacts with gold plating ensures reliable electrical connectivity.
This model is suitable for industrial electronics, control systems, instrumentation, and telecommunications.
