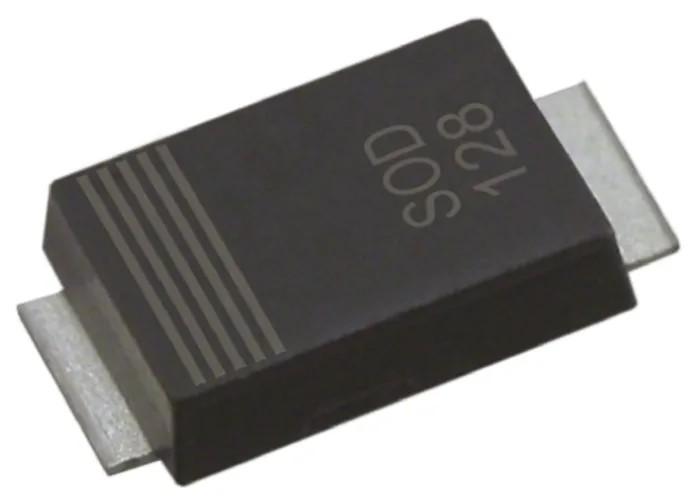

Nexperia 30 V 5 A Surface Mount Schottky Diode 2-Pin SOD-128 PMEG3050EP,115
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG3050EP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 8mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A |
| Maximum Forward Voltage Vf | 360mV |
Key Features
- Maximum continuous forward current of 5 A ensures high current capacity.
- Peak reverse repetitive voltage rating of 30 V provides reliable blocking voltage.
- Low forward voltage of 360 mV reduces power loss during conduction.
- Wide operating temperature range from -55°C to 150°C supports harsh environments.
- Low peak reverse current of 8 mA minimizes leakage and power dissipation.
- AEC-Q101 automotive standard qualification ensures suitability for automotive applications.
- High peak non-repetitive forward surge current rating of 70 A withstands transient surges.
- Schottky barrier construction offers ultrafast switching and low capacitance.
Product Description
Nexperia PMEG3050EP,115 is a 30 V, 5 A Schottky diode designed for surface mount applications in a compact 2-pin SOD-128 package. It offers a low forward voltage drop of 360 mV and supports a broad temperature range from -55°C to 150°C. This diode is ideal for use in electronic, industrial, automotive, and power circuit applications requiring fast switching and high efficiency.
Its AEC-Q101 automotive standard compliance makes it suitable for automotive electronic systems demanding reliability and durability under harsh conditions. The Schottky barrier architecture provides low capacitance and negligible power switching losses, improving overall circuit performance.
The diode has a peak reverse repetitive voltage of 30 V and can conduct a maximum continuous forward current of 5 A. It also withstands high transient surge currents up to 70 A. Its compact SOD-128 package has dimensions of 4 mm length, 2.7 mm width, and 1.1 mm height, enabling dense PCB layouts and space-saving designs.
Manufactured in Malaysia, the product is supplied new and is designed for applications such as power rectification, freewheeling diodes, and voltage clamping in electronic circuits. It is optimized for low forward voltage drop and high junction temperature handling, making it efficient for power and switching applications.
Maximum continuous forward current of 5 A ensures high current capacity. Peak reverse repetitive voltage rating of 30 V provides reliable blocking voltage. Low forward voltage of 360 mV reduces power loss during conduction.
Wide operating temperature range from -55°C to 150°C supports harsh environments. Low peak reverse current of 8 mA minimizes leakage and power dissipation. Compact SOD-128 package dimensions: 4 mm length, 2.7 mm width, and 1.1 mm height.
AEC-Q101 automotive standard qualification ensures suitability for automotive applications. High peak non-repetitive forward surge current rating of 70 A withstands transient surges. Schottky barrier construction offers ultrafast switching and low capacitance.
Manufactured in Malaysia with new product condition guarantee. Explore more Schottky diodes and rectifier products in the semiconductor category at EnvMart for efficient and reliable electronic circuit solutions.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 5 A.
The peak reverse repetitive voltage rating is 30 V, providing reliable blocking voltage.
The forward voltage drop is 360 mV, which helps reduce power loss during conduction.
It operates within a temperature range of -55°C to 150°C, suitable for harsh environments.
The peak reverse current is 8 mA, which minimizes leakage and power dissipation.
The peak non-repetitive forward surge current rating is 70 A, allowing it to withstand transient surges.
The dimensions of the SOD-128 package are 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
Yes, it is AEC-Q101 automotive standard qualified, ensuring suitability for automotive applications.
This model supports surface mounting, making it suitable for compact PCB layouts.
The diode configuration is single, designed for various electronic applications.
This Schottky diode is manufactured in Malaysia.
This diode is suitable for applications such as power rectification, freewheeling diodes, and voltage clamping in electronic circuits.
