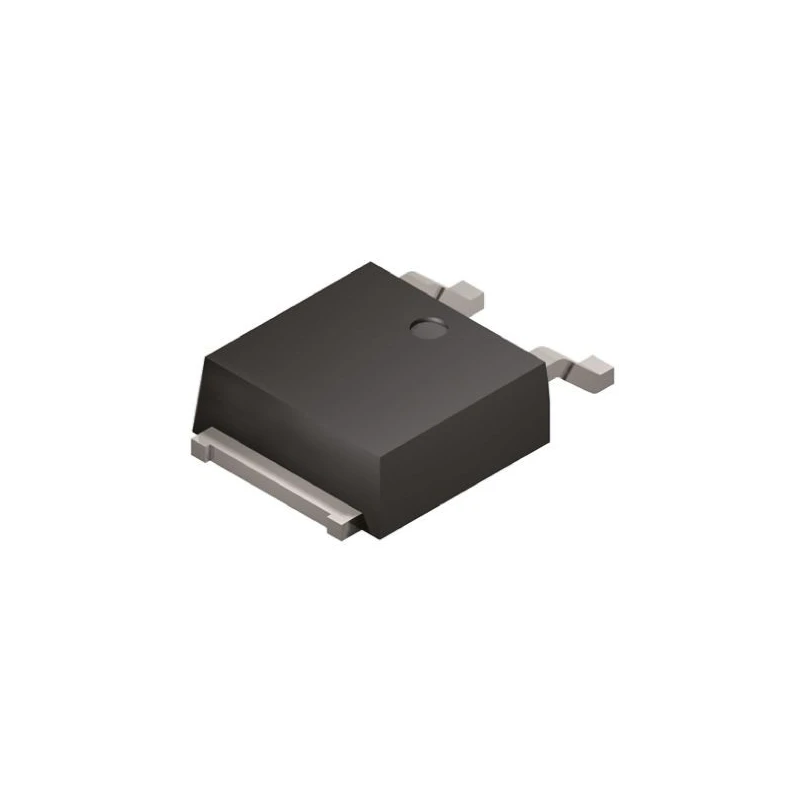

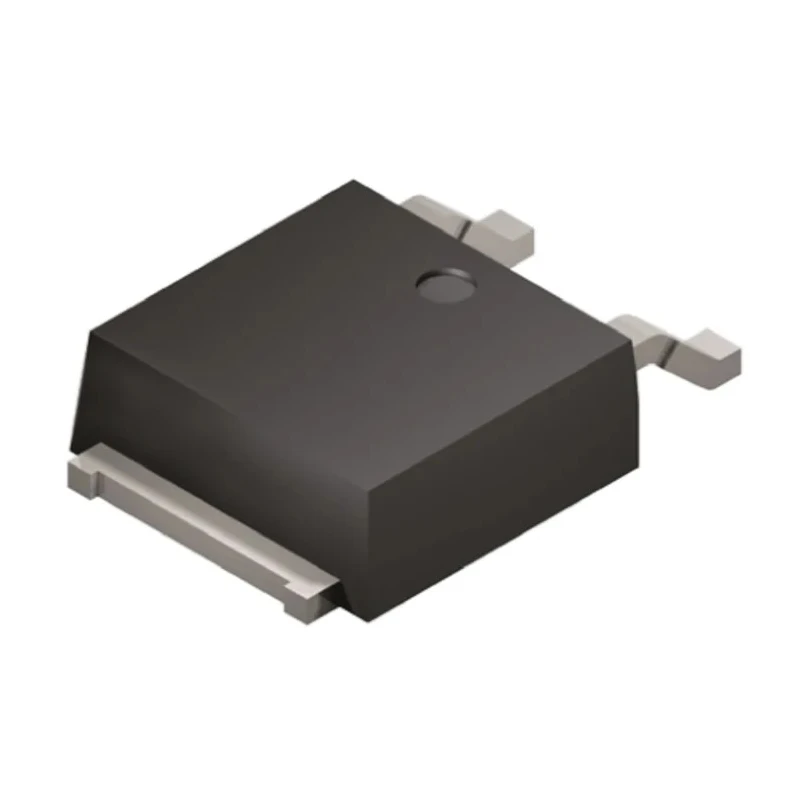

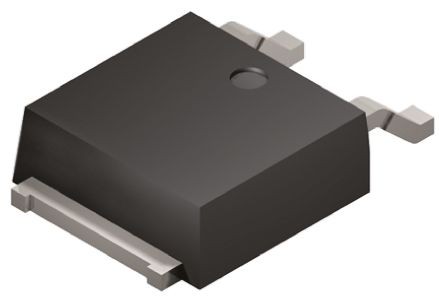

onsemi Transistor 3 A NPN 100 V 4-Pin TP-FA Surface Mount Single Configuration 2SD1815S-TL-E

onsemi 2SD1815S-TL-E transistor is a general purpose NPN discrete semiconductor designed by onsemi, offering a maximum DC collector current of 3A and a collector-emitter voltage rating of 100V. Its 4-pin TP-FA surface mount package ensures easy PCB integration for a variety of electronic applications.

This transistor features a minimum DC current gain of 140 and a power dissipation capacity of up to 20W, making it suitable for circuits requiring reliable switching and amplification performance. It operates at frequencies up to 1 MHz, ideal for moderate frequency analog and digital applications.

Industrial use cases include power regulation, signal amplification, and switching in consumer electronics, communication devices, and power supply modules. The device's maximum operating temperature of 150°C provides enhanced durability under industrial conditions.

Physical dimensions are 10.1 mm in height, 6.7 mm in length, and 2.5 mm in width, supporting compact design requirements. The package type TP-FA and surface mount technology facilitate streamlined manufacturing processes.

Maximum collector current of 3 amperes enables handling of significant load currents. High collector-emitter voltage rating supports robust voltage handling. Minimum DC current gain ensures efficient signal amplification.

Power dissipation rating supports reliable thermal management. Compact 4-pin TP-FA package for surface mount applications. Operates reliably up to 150°C ambient temperatures. Frequency capability up to 1 MHz suits switching and amplification.

Single NPN transistor configuration for versatile circuit use. Applications in industrial electronics, HVAC control, manufacturing automation, and testing equipment. Explore additional onsemi Bipolar Transistors and electronic components at EnvMart to find suitable devices for your industrial and commercial applications.
