onsemi Bi-Directional Voltage Level Shifter Voltage Level Translator 2 Elements 8-Pin MicroPak FXMA2102L8X

onsemi FXMA2102L8X is a highly reliable bi-directional voltage level shifter IC designed for translating voltage levels between different logic families. It features 2 elements per chip, facilitating efficient voltage translation in applications where signals must be shifted between distinct voltage domains.

This device operates from a low minimum supply voltage of 1.65V up to a maximum of 5.5V, making it suitable for modern low-voltage digital circuits. The maximum propagation delay time of 7ns enables fast signal switching and ensures minimal timing delays, crucial for high-speed digital processing.

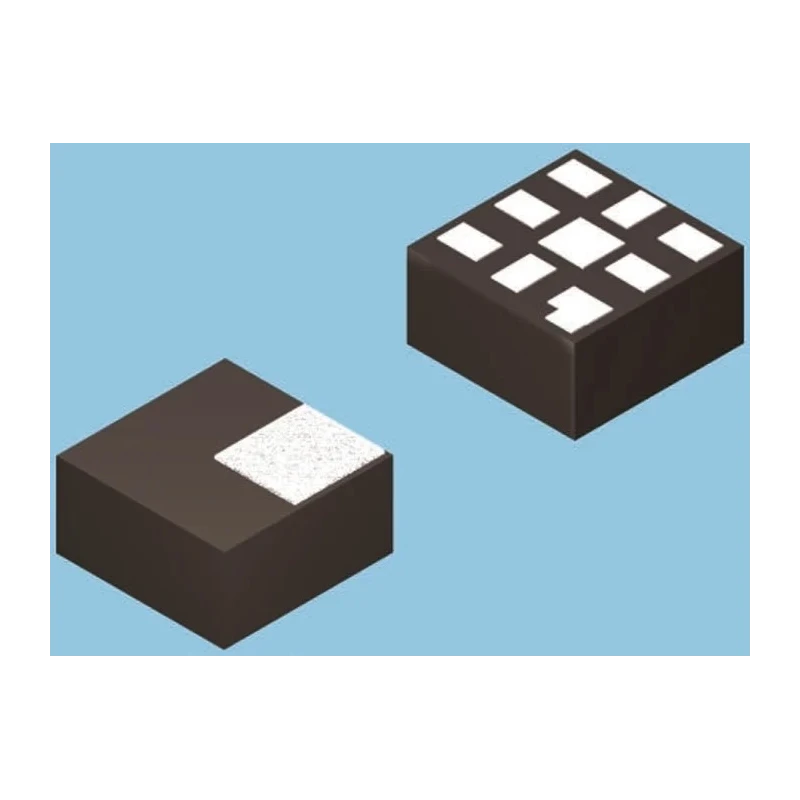

Encased in a compact 8-pin MicroPak surface mount package, the IC has a height of 0.5mm and length of 1.6mm, supporting space-saving PCB layouts. The open drain output type allows for flexible output configurations in complex logic circuits.

The FXMA2102L8X operates within a wide temperature range from -40°C to 85°C, meeting industrial and commercial application requirements. Its maximum output currents of ±50mA enable interfacing with a broad spectrum of logic inputs and outputs.

This voltage level translator is ideal for electronics manufacturing, embedded systems, and semiconductor applications requiring reliable high-speed voltage shifting between different logic levels.

Operates at supply voltages from 1.65V to 5.5V. Bi-directional translation with two elements per chip. Maximum propagation delay of 7ns ensures fast response. Compact 8-pin MicroPak surface mount package. Wide operating temperature range of -40°C to 85°C.

Open drain outputs with ±50mA maximum current ratings. Ideal for logic level shifting in semiconductor and electronic components. Discover more semiconductor solutions and Logic ICs at EnvMart for your industrial and electronic component needs.
