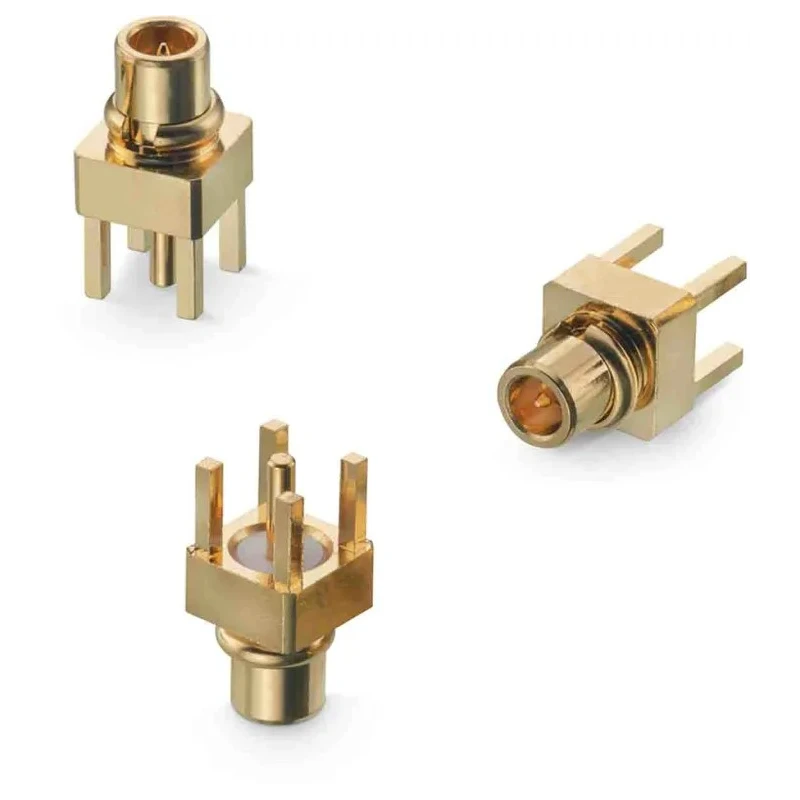

Wurth Elektronik WR-MMCX Series Coaxial Connector Through Hole Male MCX 50 Ω Straight Body Solder 66014002121503
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Mount Type | Through Hole |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | WR-MMCX |
| Termination Type | Solder |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Interfaces | LAN |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | MCX |
| Body Plating | Gold over Nickel |
Key Features
- Designed for wire-to-board applications requiring quick snap-on mating.
- Operates at frequencies up to 6 GHz for high-speed data transmission.
- Gold over nickel body plating ensures corrosion resistance.
- Brass contact material with gold over nickel plating for reliable connectivity.
- Suitable for telecom, industrial communication, wireless LAN, and measurement systems.
- Operating temperature range from -55°C to 155°C for diverse environments.
- Standard size connector with normal polarity and no bulkhead.
Product Description
Wurth Elektronik 66014002121503 WR-MMCX Series coaxial connector is a high-performance MCX type connector designed for through hole mounting in wire-to-board applications. The straight body design with male connector gender offers reliable and quick snap-on mating suitable for applications demanding dependable RF connectivity.
With an impedance of 50 Ω and an operating frequency of up to 6 GHz, this coaxial connector supports high-speed data transfer typically used in telecommunication systems, base stations, industrial automation, machine-to-machine communication, data communication networks, wireless LAN, and precision measurement instruments including network analyzers.
The connector body and contact plating features gold over nickel, enhancing corrosion resistance and durability under varied operating conditions. The contacts are made from brass with gold plating ensuring excellent conductivity and minimized signal loss.
This product operates reliably within a wide temperature range from -55°C to 155°C, making it adaptable for harsh industrial and laboratory environments. Its size conforms to industry-standard specifications with normal polarity and does not feature a bulkhead, allowing versatile installation.
The WR-MMCX series provides a trusted solution in industrial, commercial, telecommunication, and measurement sectors requiring durable RF connectors with consistent performance. Package details and quantities should be confirmed with suppliers to match specific project requirements.
Designed for wire-to-board applications requiring quick snap-on mating. Operates at frequencies up to 6 GHz for high-speed data transmission. Gold over nickel body plating ensures corrosion resistance. Brass contact material with gold over nickel plating for reliable connectivity.
Suitable for telecom, industrial communication, wireless LAN, and measurement systems. Operating temperature range from -55°C to 155°C for diverse environments. Standard size connector with normal polarity and no bulkhead.
Explore more Coaxial Connectors and accessories in the Electronics Components category on EnvMart for optimized connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 6 GHz, making it suitable for high-speed data transmission applications.
This connector has an impedance of 50 Ω, which is standard for many RF applications.
The contact material is brass, and it features gold over nickel plating to ensure reliable connectivity and minimize signal loss.
The operating temperature range for this model is from -55°C to 155°C, allowing it to function in diverse environments.
This connector is designed for through hole mounting, which is suitable for wire-to-board applications.
Yes, this coaxial connector is suitable for wireless LAN applications, as well as for telecommunication and industrial communication systems.
The connector has a straight orientation, which facilitates easier installation in various configurations.
This model utilizes a solder termination type, which is common for secure connections in electronic applications.
No, this connector does not feature a bulkhead, allowing for versatile installation options.
The country of origin for this product is Taiwan.
The body of the connector is plated with gold over nickel, which enhances its corrosion resistance.
This coaxial connector is suitable for applications in telecom, industrial communication, wireless LAN, and measurement systems.
