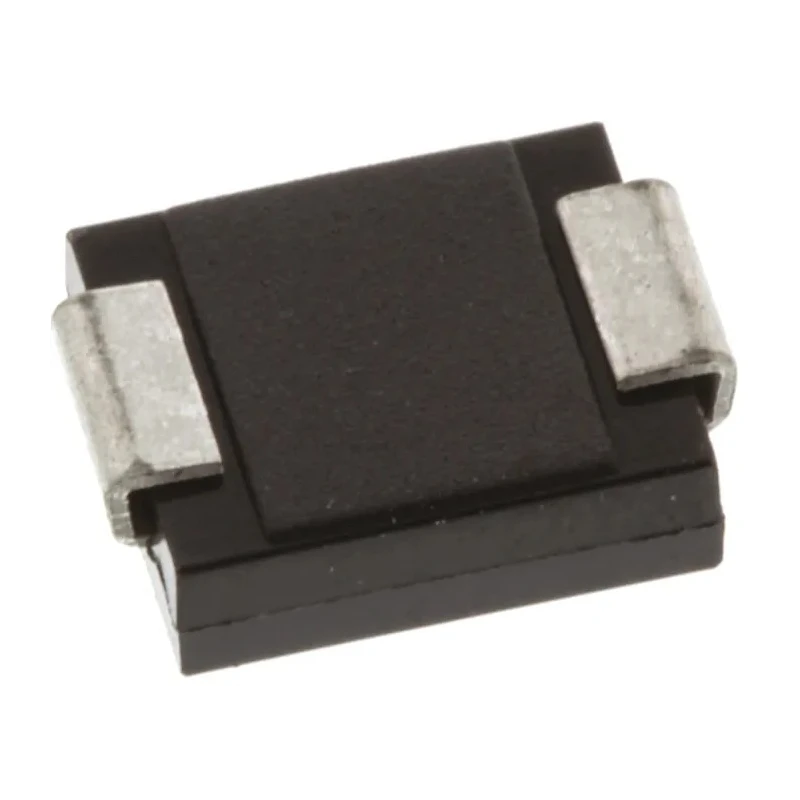

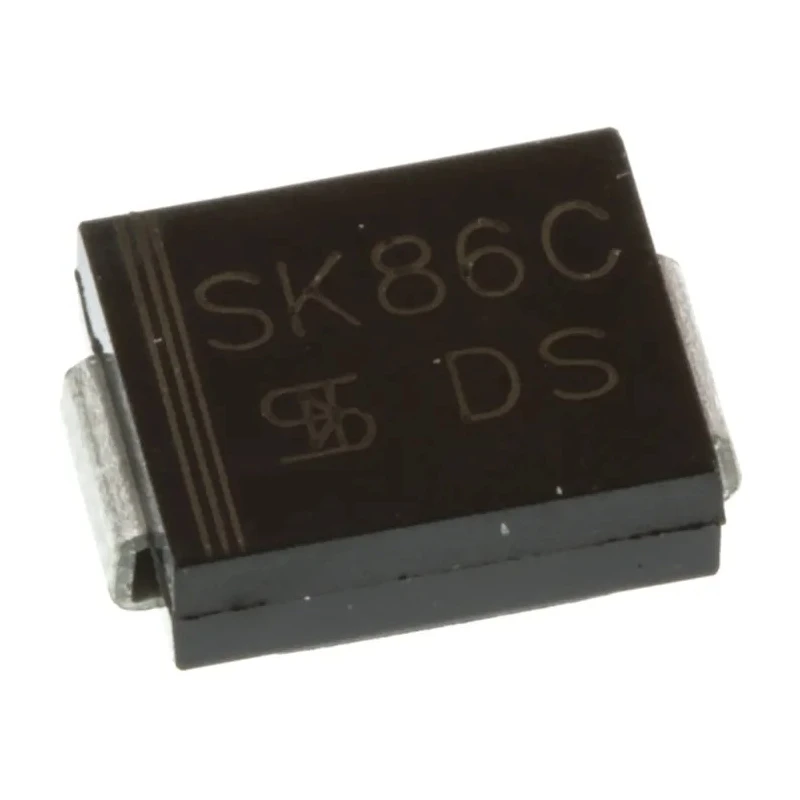

Taiwan Semiconductor 60 V 8 A Schottky Diode Single Configuration 2-Pin Surface Mount DO-214AA SK86C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SK86C |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SK86C |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 750mV |
Key Features
- Operates reliably within -55°C to 150°C temperature range.
- Features a low forward voltage drop of 750 mV for efficient switching.
- Capable of continuous forward current up to 8 A with high surge current capability.
- Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height.
- Designed for low power loss in electronic and power applications.
- Peak reverse repetitive voltage of 60 V ensures dependable reverse voltage blocking.
- Minimal peak reverse current of 10 mA contributing to energy efficiency.
- Suitable for industrial and electronic equipment requiring efficient rectification.
Product Description
Taiwan Semiconductor SK86C Schottky Diode is a high-performance discrete semiconductor device designed for efficient power conversion and rectification. It features a single diode configuration in a compact 2-pin surface mount DO-214AA package, making it ideal for modern electronic circuits and industrial power applications.
The diode supports a maximum continuous forward current of 8 A and can withstand peak surge currents up to 150 A, offering robustness under transient load conditions. Its forward voltage drop of 750 mV minimizes power losses, optimizing circuit efficiency.
Operating temperature range from -55°C to 150°C allows reliable use in harsh industrial environments. The reverse repetitive voltage rating of 60 V ensures the device reliably blocks reverse voltage spikes, enhancing circuit durability.
Physical dimensions are compact with a length of 7.11 mm, width of 6.22 mm, and height of 2.42 mm. The device is RoHS compliant and manufactured in China.
This diode is extensively used in power supply circuits, voltage clamping, solar power applications, and other electronic systems requiring low forward voltage and high switching speed.
Operates reliably in extreme temperature conditions. High current and surge capacity for demanding applications. Low forward voltage drop reduces power dissipation. Compact surface mount package for space-saving designs.
Widely applicable in industrial, electronic, and power conversion setups. Explore the comprehensive range of semiconductor diodes and rectifiers at EnvMart for all your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 8 A.
It has a peak reverse repetitive voltage rating of 60 V.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The operating temperature range is from -55°C to 150°C.
The forward voltage drop is 750 mV.
This model can withstand a peak non-repetitive forward surge current of 150 A.
The peak reverse current is 10 mA.
It utilizes a surface mount type in a DO-214AA package.
The diode configuration is single.
It is suitable for power supply circuits, voltage clamping, solar power applications, and other electronic systems requiring efficient rectification.
Yes, this diode is RoHS compliant.
The country of origin for this diode is China.
