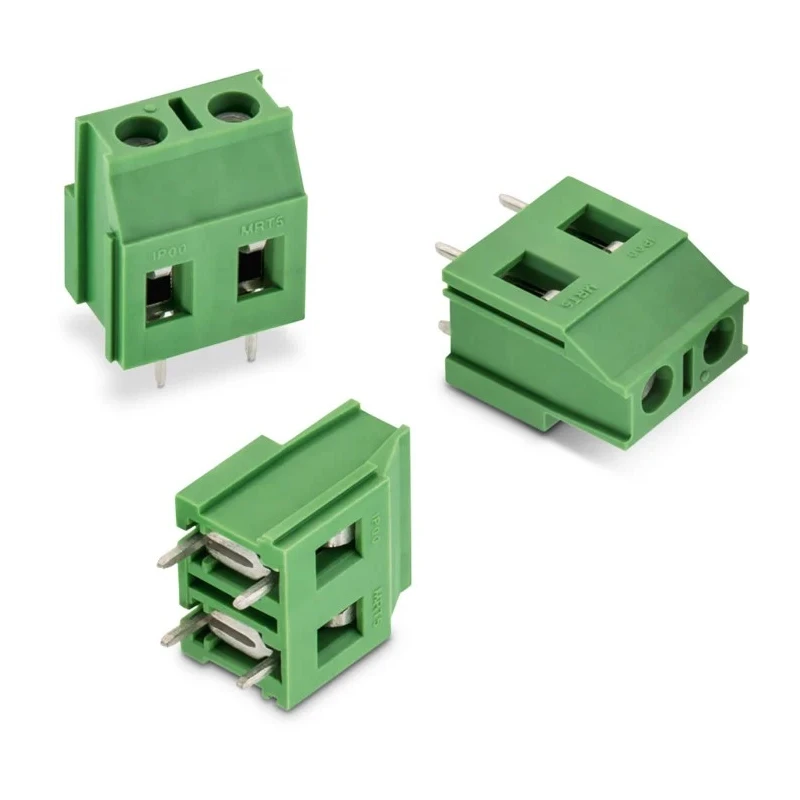

Wurth Elektronik 2549 Series 3-Contact 7.5 mm Pitch Single Row Through Hole PCB Terminal Block 691254910003
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V ac |
| Brand | Wurth Elektronik |
| Colour | Green |
| Orientation | Horizontal |
| Current | 24A |
| Length | 23.1mm |
| Depth | 18mm |
| Width | 11.2mm |
| Mount Type | Through Hole |
| Series | 2549 |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 3.31mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 12AWG |
Key Features
- Constructed for use with wire sizes from 0.05 mm² to 3.31 mm², supporting 30 AWG to 12 AWG wires.
- Rated for a maximum current of 24A and voltage rating of 750V AC for robust performance.
- Features a green color and horizontal orientation to aid visual identification and assembly.
- Compact physical dimensions of 23.1 mm length, 11.2 mm width, and 18 mm depth ensure space-efficient PCB layout.
- Mount type is through hole with a 7.5 mm pitch spacing between contacts, suitable for secure mechanical and electrical connections.
- Designed without additional certifications but built to industrial standards for durability and safety.
Product Description
Wurth Elektronik 691254910003 PCB Terminal Block is a high-quality connector designed to provide reliable and secure connections on printed circuit boards. This model features a 3-contact configuration arranged in a single row with a 7.5 mm pitch spacing, facilitating effective wiring with pitch-specific terminals. The terminal block is engineered for through-hole mounting, ensuring firm mechanical fixation and excellent electrical contact stability.
Capable of accommodating a wide range of wire sizes, from a minimum of 0.05 mm² (30 AWG) up to a maximum of 3.31 mm² (12 AWG), this terminal block supports various wiring requirements in industrial electronics. It carries a high current rating of 24A with a voltage rating of 750V AC, making it suitable for demanding power applications. The horizontal orientation and green coloration assist in easy identification and installation on PCB assemblies.
Measuring 23.1 mm in length, 11.2 mm in width, and 18 mm in depth, this compact terminal block maximizes PCB space utilization while maintaining robust electrical connectivity. Designed without specific certifications, it adheres to industrial norms ensuring functional reliability in various electronics manufacturing and assembly contexts including industrial machines, power distribution systems, and electronic control units.
Supports wire sizes ranging from 0.05 mm² to 3.31 mm² for versatile connection options. Rated for 24A current and 750V AC voltage to handle demanding electrical loads. Features a 7.5 mm pitch and through-hole mount for secure PCB installation.
Compact dimensions of 23.1 x 11.2 x 18 mm optimize PCB real estate. Horizontal orientation and green color coding for ease of use in assembly.
This product belongs to the Wurth Elektronik 2549 series, known for modular terminal blocks suited to meet extensive industrial and commercial electrical connectivity requirements. The PCB Terminal Block is a reliable choice for engineers and technicians needing efficient, durable terminal solutions for circuit board applications. Explore more in the Electronics Components category at EnvMart for related products and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 24A and a voltage rating of 750V AC.
This terminal block supports wire sizes ranging from 0.05 mm² (30 AWG) to 3.31 mm² (12 AWG).
The dimensions are 23.1 mm in length, 11.2 mm in width, and 18 mm in depth.
It features a through-hole mount type, ensuring secure mechanical and electrical connections.
The pitch spacing between the contacts is 7.5 mm.
It is green in color, which helps in visual identification and assembly during installation.
This model features 3 contacts arranged in a single row.
This terminal block is designed without specific certifications but adheres to industrial standards for functionality.
It belongs to the Wurth Elektronik 2549 series, known for modular terminal blocks.
It is suitable for various applications in industrial electronics, including power distribution systems and electronic control units.
The terminal block is designed for horizontal orientation.
The country of origin for this terminal block is India.
