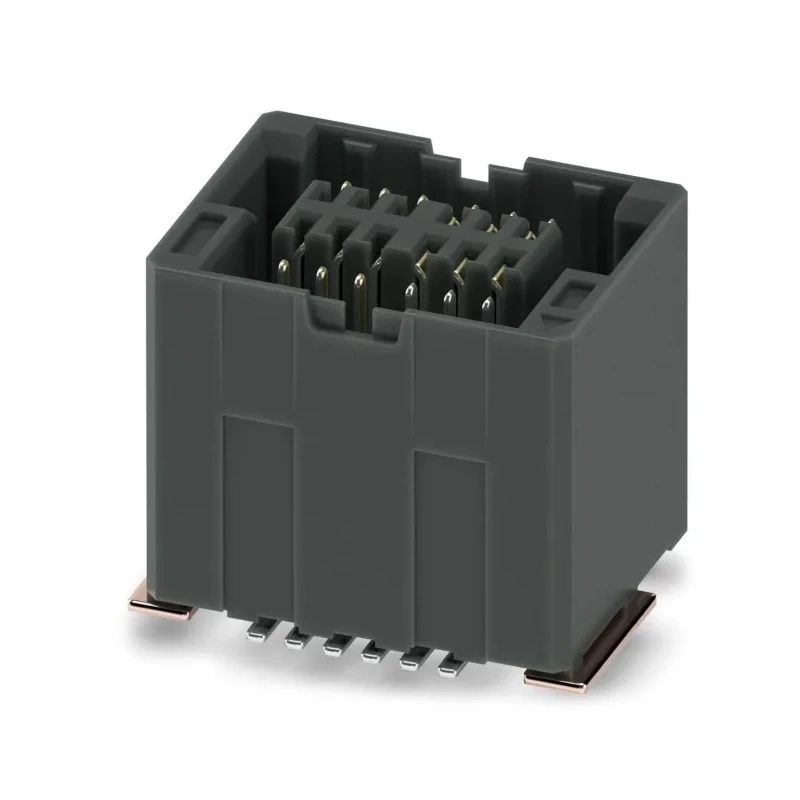

Phoenix Contact FP Series PCB Connector Kit Black SMD Female Connector 12 Positions 1.7A 500V AC 1061580
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | 1061580 |
| Mounting Type | SMD soldering |
| Series | FP |
| Nominal Current | 1.7 A |
| Test voltage | 500 V AC |
| Standards/Approvals | Ex approvals, cULus Recognised |
| Housing Colour | Black |
Key Features
- Constructed with copper alloy contact material for reliable conductivity.
- Equipped with ScaleX contact system for mechanical and electrical stability.
- Designed with high tolerance compensation ensuring long-term stable contact quality.
- Suitable for SMT solder mounting providing robust PCB integration.
- Certified with Ex and cULus approvals for safety and compliance.
- Originates from Germany, ensuring high manufacturing standards.
Product Description
Phoenix Contact 1061580 PCB Connector Kit comprises a black Surface Mount Device (SMD) female connector with 12 contact positions. It supports a nominal current of 1.7 A and withstands a test voltage of 500 V AC, ensuring reliable operation in electronic circuits. The connector's copper alloy contacts are gold-plated to maintain superior transfer quality and resistance to environmental influences over extended periods.
The kit incorporates a double-sided ScaleX contact system, known for providing dependable mechanical and electrical connections alongside robust protection for the contact surfaces. This design enhances durability and ensures high tolerance compensation for tight manufacturing tolerances and long-term reliability.
Mounting is via SMD soldering, making it suitable for automated PCB assembly lines and ensuring secure attachment and electrical connectivity. The connector is housed in a black plastic casing optimized for compact PCB applications.
This connector series holds certifications including Ex approvals and is recognized by cULus, indicating compliance with international safety and performance standards, suitable for industrial and commercial electronic manufacturing environments.
Manufactured in Germany, this product reflects high-quality engineering and stringent quality controls, making it suitable for advanced PCB designs requiring dependable, high-quality connector solutions.
Constructed with copper alloy contacts for optimal conductivity and durability. Gold-plated contact surfaces ensure long-term transfer quality. Double-sided ScaleX contact system for reliable electrical and mechanical connections.
Robust design compensates for high tolerance variations and protects contacts. SMD mounting type allows efficient soldering onto PCBs. Ex and cULus certified for safety and compliance. Made in Germany ensuring premium manufacturing standards.
Explore Phoenix Contact solutions and other high-quality electronic components in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal current rating of this PCB connector is 1.7 A.
This connector can withstand a test voltage of 500 V AC.
The connector is designed for SMD soldering, making it suitable for automated PCB assembly.
This connector is certified with Ex approvals and recognized by cULus for safety and compliance.
This connector originates from Germany, ensuring high manufacturing standards.
The housing color of this PCB connector is black.
The connector is constructed with copper alloy contact material for reliable conductivity.
The ScaleX contact system provides mechanical and electrical stability, enhancing durability and contact quality.
The connector features high tolerance compensation, ensuring long-term stable contact quality.
Gold-plated contact surfaces ensure superior transfer quality and resistance to environmental influences over time.
This connector belongs to the FP series by Phoenix Contact.
This connector is suitable for industrial and commercial electronic manufacturing environments due to its certifications and robust design.
