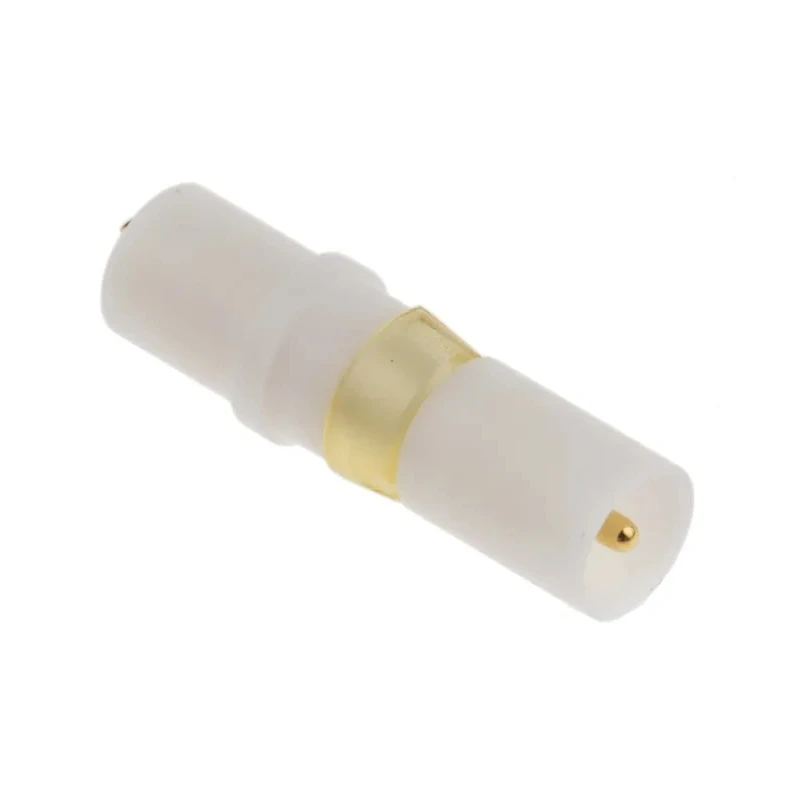

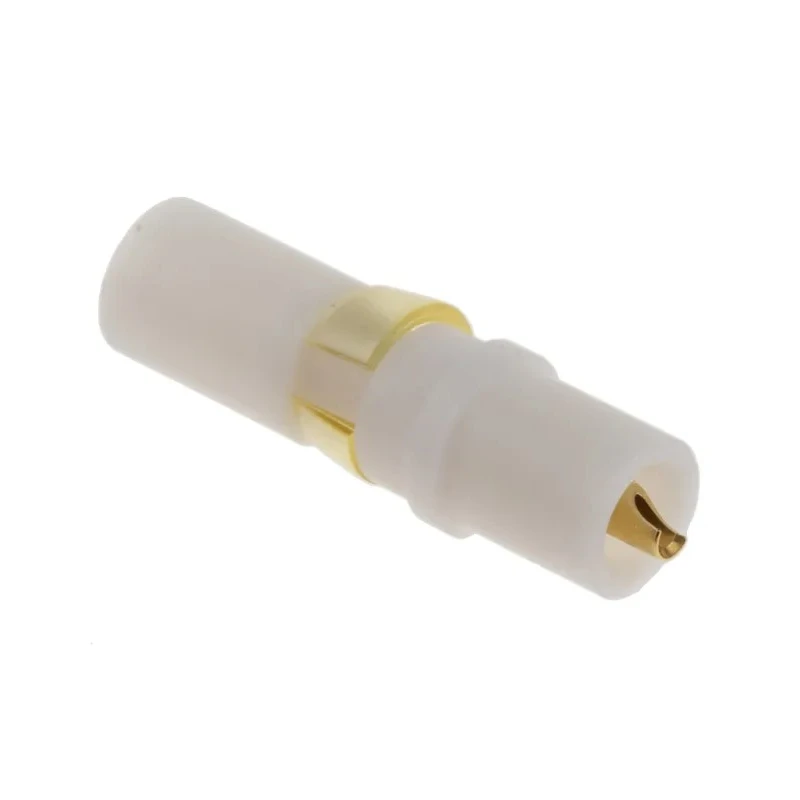

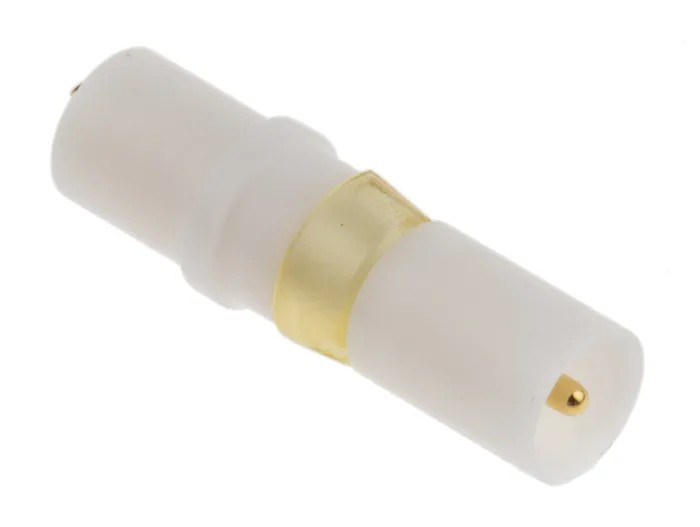

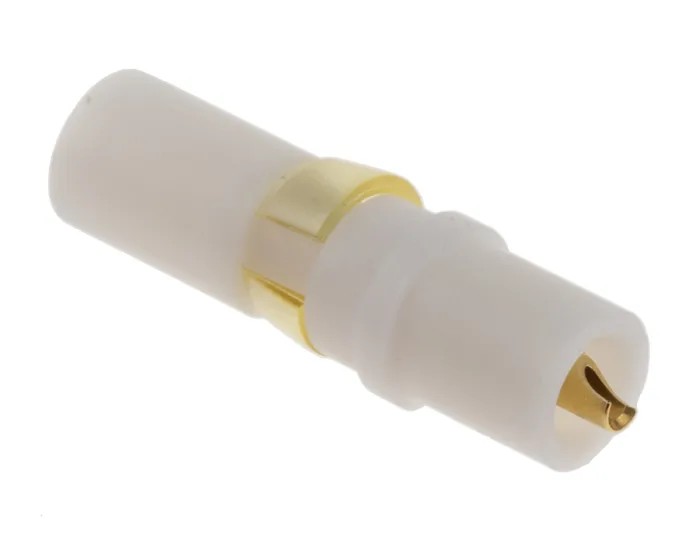

RS PRO Straight Coaxial Female Gold Copper Alloy Backplane Connector Contact 309-4222
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Orientation | Straight |
| Current | 2A |
| Model | 309-4222 |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Cable Type | Coaxial |
| Wire size | 0.79mm² |
| For Use With | DIN41612 Type M Female Connector |
| Contact Plating | Gold |
| Maximum Contact Resistance | 1mΩ |
| PCB holes for coax plug and socket | 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia |
| Molex FCT , Straight , Female , Backplane Connector ContactBrand | Molex |
Key Features
- Designed for use with DIN41612 Type M female connectors with a 2A current rating.
- Features a straight orientation and is suitable for coaxial cable types.
- Gold plating on copper alloy contacts ensures low contact resistance of 1mΩ.
- Termination is by soldering, suitable for reliable electrical connections.
- Operates at a maximum temperature of 125°C for stable performance.
- PCB holes for coax plug and socket include four holes of 1.3mm diameter on 5.08mm centers plus a central 1.3mm hole.
- Compatible with mixed layout connector shells for power, coaxial and high voltage contacts.
- Ideal for industrial, military, commercial, and computer interfacing applications.
Product Description
RS PRO 309-4222 Backplane Connector Contact is a high-quality straight coaxial female connector designed for use with DIN41612 Type M female connectors. Featuring gold-plated contacts made from copper alloy, it provides excellent electrical conductivity and minimal contact resistance of 1mΩ, ensuring reliable signal integrity in demanding environments.
This connector supports a current rating of 2A and is optimized for coaxial cable types, with wire size rated at 0.79mm². The solder termination method ensures durable and robust connections, suitable for a wide range of electronic applications.
The connector's maximum operating temperature is 125°C, making it suitable for industrial conditions. It is compatible with mixed layout connector shells, supporting power, coaxial, and high voltage contacts in a combined arrangement.
PCB mounting holes are precisely designed for coax plug and socket integration, including four holes of 1.3mm diameter arranged on 5.08mm centers, plus a central hole also 1.3mm in diameter. This facilitates secure mechanical and electrical mounting on PCB assemblies.
This product is ideal for use in military, industrial, commercial, and computer interfacing sectors where high reliability and performance are required. It fits mixed layout D shells and is supplied with suitable snap-fit contact removal tools (stock no. 485-221).
Designed for mixed layout connector shells incorporating power and coaxial contacts. Gold-plated copper alloy contacts ensure excellent conductivity and durability. Supports a nominal current capacity of 2A for signal integrity.
Solder termination offers stable and secure contact points. Maximum operating temperature rating of 125°C for harsh environments. PCB holes designed for coax plug and socket facilitate ease of assembly. Suitable for industrial, military, commercial, and computer interface applications.
Explore more electronic connectors and power connector options in the Electronics Components category at EnvMart for diverse industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2A, making it suitable for various electronic applications.
It uses a solder termination method, ensuring stable and secure connections.
The maximum operating temperature is 125°C, allowing it to perform in harsh environments.
The contacts are made from copper alloy and are gold-plated to ensure low contact resistance of 1mΩ.
It features four mounting holes of 1.3mm diameter on 5.08mm centers, plus a central 1.3mm hole for secure installation.
Yes, it is designed specifically for use with DIN41612 Type M female connectors.
The wire size is rated at 0.79mm², suitable for coaxial cable types.
It is ideal for military, industrial, commercial, and computer interfacing applications.
This model features a straight orientation, which is typical for backplane connectors.
The maximum contact resistance is 1mΩ, ensuring reliable signal integrity.
Yes, it is supplied with suitable snap-fit contact removal tools for ease of use.
The country of origin for this product is India.
