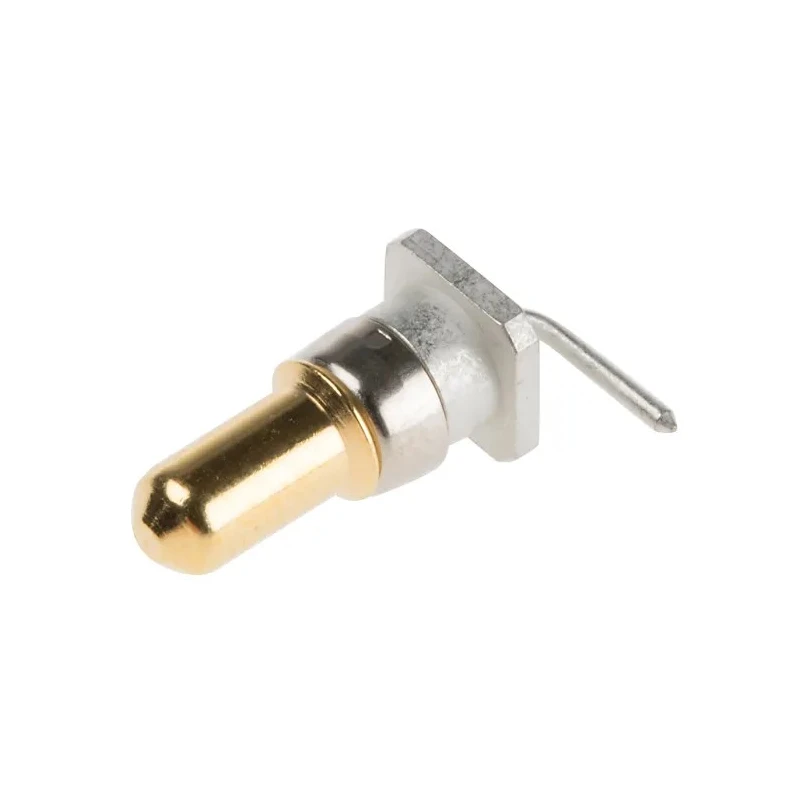

RS PRO Right Angle Backplane Connector Contact RG178B/U RG174A/U Male Gold Copper Alloy 10A 125°C 309-4036
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Orientation | Right Angle |
| Current | 10A |
| Model | 309-4036 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Cable Type | RG178B/U, RG174A/U |
| For Use With | DIN41612 Type M Female Connector |
| Contact Plating | Gold |
| Maximum Contact Resistance | 1mΩ |
| Molex FCT , Backplane Connector ContactBrand | Molex |
Key Features
- Constructed with a copper alloy contact material for durability.
- Features gold plating for reliable conductivity and corrosion resistance.
- Rated for a maximum current of 10A ensuring robust electrical performance.
- Operates reliably up to a maximum temperature of 125°C.
- Termination type is solder, suitable for secure connections.
- Right angle orientation optimizes installation in compact spaces.
- Exhibits low maximum contact resistance of 1 milliohm for efficient signal transmission.
- Manufactured in Germany ensuring high quality standards.
Product Description
RS PRO 309-4036 Right Angle Backplane Connector Contact is engineered for use with DIN41612 Type M Female Connectors, suitable for advanced electronics and industrial applications requiring secure and reliable connector interfaces. This backplane contact supports RG178B/U and RG174A/U cable types, commonly used in communication and power transmission equipment.
Constructed from a copper alloy, the contact material provides excellent conductivity and mechanical strength. The gold plating on the male contact ensures superior corrosion resistance and consistent electrical performance, making it ideal for high-reliability environments.
Rated to carry currents up to 10A, the connector supports demanding power requirements while maintaining low contact resistance, with a maximum of 1 milliohm, to minimize signal loss and heating. The solder termination type guarantees a firm and high-quality connection to cables, facilitating effective installation and maintenance.
Designed with a right angle orientation, this Backplane Connector Contact optimizes space usage within electronic assemblies and rack systems. It also tolerates operating temperatures up to 125°C, enabling use in thermal demanding scenarios without performance degradation.
Manufactured in Germany, the RS PRO 309-4036 upholds stringent quality and manufacturing standards, suitable for industrial, telecommunications, and electronic manufacturing applications.
Constructed with copper alloy contact material for durability. Gold plating ensures corrosion resistance and excellent conductivity. Supports up to 10A current rating for robust electrical performance. Right angle design optimizes space in assemblies and backplane applications.
Low contact resistance of 1mΩ reduces signal loss. Solder termination type for reliable connections. Maximum operating temperature rating of 125°C. Manufactured in Germany to high-quality standards. Explore more backplane connectors and contacts on EnvMart to find compatible components and solutions for your electronics projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS PRO Right Angle Backplane Connector Contact is rated for a maximum current of 10A, ensuring robust electrical performance.
This connector operates reliably up to a maximum temperature of 125°C, suitable for thermal demanding scenarios.
It supports RG178B/U and RG174A/U cable types, commonly used in communication and power transmission equipment.
The contact material is constructed from copper alloy, providing excellent conductivity and mechanical strength.
The termination type is solder, which ensures a secure and reliable connection to cables.
This model features a right angle orientation, optimizing space usage within electronic assemblies and rack systems.
It exhibits a low maximum contact resistance of 1 milliohm, which helps minimize signal loss and heating.
It is designed for use with DIN41612 Type M Female Connectors, ensuring compatibility for secure interfaces.
The RS PRO Right Angle Backplane Connector Contact is manufactured in Germany, adhering to high quality standards.
This connector is suitable for industrial, telecommunications, and electronic manufacturing applications requiring reliable connector interfaces.
This model belongs to the RS PRO series, known for its reliable electronic components.
Dimensions and weight specifics are not provided in the product details; please refer to the manufacturer's specifications for this information.
