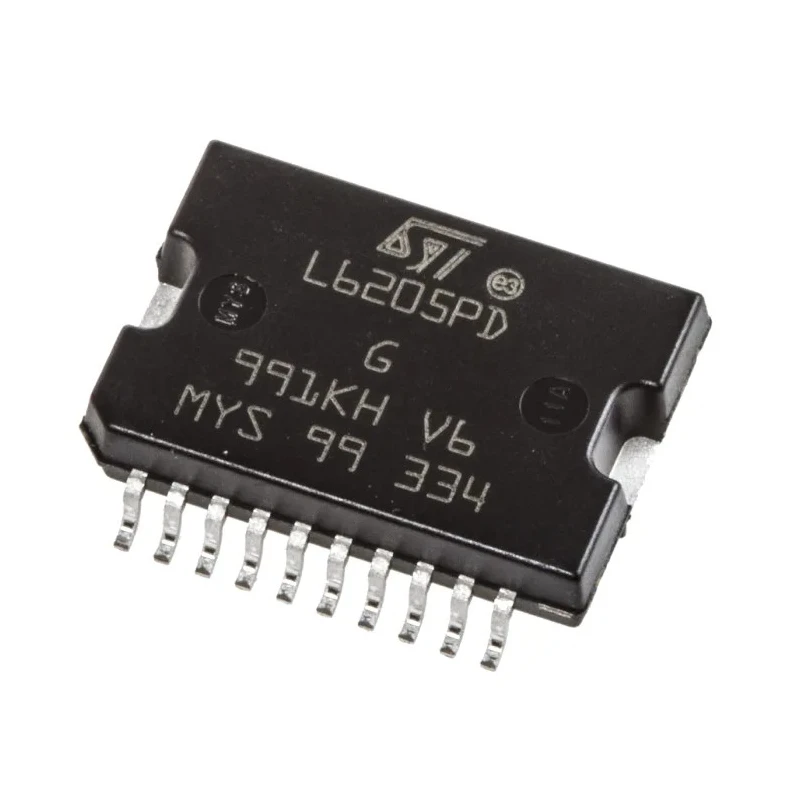

STMicroelectronics Brushed DC Motor Driver IC 52 V 2.8 A 20-Pin PowerSO L6205PD
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 3.3mm |
| Length | 16mm |
| Model | L6205PD |
| Width | 11.1mm |
| Motor Type | Brushed DC Motor |
| Mount Type | Surface |
| Series | L6205 |
| Configuration | Full Bridge |
| Output Current | 5.6A |
| Maximum Operating Temperature | 150°C |
| Package Type | PowerSO |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Maximum Collector Emitter Voltage Vceo | 52V |
| Maximum Supply Voltage | 52V |
| Minimum Supply Voltage | 8V |
| Supply Current | 2.8A |
| Maximum IGBT Collector Current | 2.8A |
| Typical Switching Frequency | 100kHz |
Key Features
- Designed for Brushed DC Motor control with Full Bridge configuration.
- Supports output current up to 5.6 A and supply voltage ranging from 8 V to 52 V.
- Operates with typical switching frequency of 100 kHz for efficient motor driving.
- Wide operating temperature range from -40°C to 150°C for harsh environments.
- Compact PowerSO surface mount package with 20 pins, dimensions 16mm x 11.1mm x 3.3mm.
- Reliable supply current of 2.8 A ensures stable motor control circuits.
- Automotive standard not certified; suitable for industrial and embedded applications.
Product Description
STMicroelectronics L6205PD is a motor driver IC designed specifically for Brushed DC Motor applications, providing robust control and reliable power handling. This IC operates with a maximum collector emitter voltage of 52 V and allows a maximum IGBT collector current of 2.8 A, supporting output currents up to 5.6 A. Its Full Bridge configuration offers flexible and efficient motor control ideal for industrial automation, robotics, and embedded system designs.
The L6205PD features a typical switching frequency of 100 kHz, enabling efficient operation while minimizing power loss. Its operational temperature range from -40°C to 150°C and a compact PowerSO surface mount package measuring 16 mm in length, 11.1 mm in width, and 3.3 mm in height ensures suitability for precision and space-constrained layouts.
Supplied in a 20-pin package, this motor driver IC is designed to interface seamlessly with microcontrollers, DSPs, or FPGAs to execute motor control commands, enhancing system productivity and control accuracy in sectors such as automation, motor control, HVAC, and industrial manufacturing.
Designed for Brushed DC Motor control with Full Bridge configuration. Maximum collector emitter voltage of 52 V and output current of 5.6 A. Typical switching frequency is 100 kHz, supporting efficient operation. Wide temperature range from -40°C to 150°C suitable for industrial conditions.
Compact 20-pin PowerSO package for surface mounting and space-saving design. Supply current of 2.8 A ensures reliable motor control performance. Compatible with microcontroller, DSP, and FPGA interfaces for control systems.
This Motor Driver IC is essential for designing efficient and reliable brushed DC motor control systems in industrial applications. For a wide selection of motor driver solutions and detailed technical documentation, explore EnvMart’s comprehensive electronics components catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this motor driver IC is 5.6 A.
It supports a supply voltage range from 8 V to 52 V.
The typical switching frequency is 100 kHz, which enables efficient operation.
This model has dimensions of 16 mm in length, 11.1 mm in width, and 3.3 mm in height.
It operates within a temperature range from -40°C to 150°C, suitable for harsh environments.
This motor driver IC uses a Full Bridge configuration for efficient motor control.
It is specifically designed for Brushed DC Motor applications.
This model is supplied in a 20-pin package.
The maximum collector emitter voltage is 52 V.
The supply current rating is 2.8 A, ensuring stable motor control performance.
It features a surface mount package type, specifically PowerSO.
It is not certified for automotive standards but is suitable for industrial and embedded applications.
