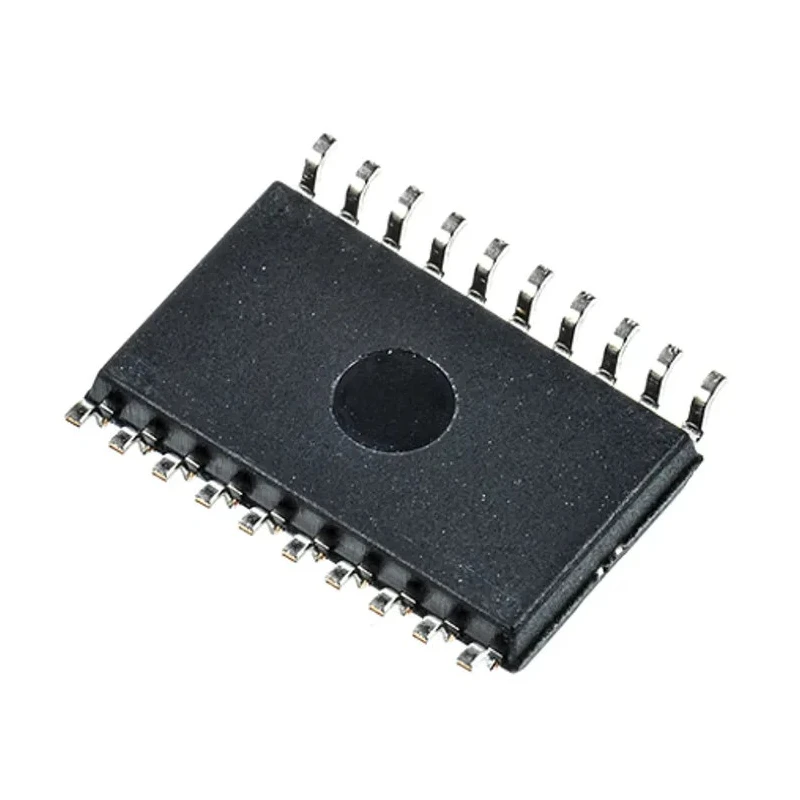

STMicroelectronics Brushed DC Motor Driver IC 52 V 1.4 A 20-Pin SOIC L6225DTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Brushed DC Motor Driver IC 52 V 1.4 A 20-Pin SOIC L6225DTR

Name: STMicroelectronics Brushed DC Motor Driver IC 52 V 1.4 A 20-Pin SOIC L6225DTR
Brand: STMicroelectronics
SKU: 135308
Price: 9.38 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	Malaysia
Brand	STMicroelectronics
Height	2.35mm
Length	13mm
Model	L6225DTR
Width	7.6mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	L6225
Configuration	Full Bridge
Output Current	2.8A
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-25°C
Pin Count	20
Maximum Collector Emitter Voltage Vceo	52V
Maximum Supply Voltage	52V
Minimum Supply Voltage	8V
Supply Current	1.4A
Maximum IGBT Collector Current	1.4A
Typical Switching Frequency	100kHz

Key Features

Supports brushed DC motors with full bridge configuration for efficient control.
Operates at a maximum supply voltage of 52 V and output current up to 2.8 A.
Includes 20 pins in a SOIC surface mount package suitable for compact PCB designs.
Typical switching frequency of 100 kHz ensures responsive motor control.
Operating temperature ranges from -25°C to 125°C for reliable industrial performance.
Designed for surface mount technology to facilitate automated assembly.
Supply current rated at 1.4 A supports stable power management.
Manufactured in Malaysia ensuring quality standards compliance.

Product Description

STMicroelectronics L6225DTR is a robust brushed DC motor driver integrated circuit designed for controlling motors and complex loads via logic input signals. Featuring a full bridge configuration, this 20-pin SOIC packaged device operates at a maximum voltage of 52 V and a collector current rating of 1.4 A, which makes it suitable for various motion control applications.

The driver IC supports typical switching frequencies of 100 kHz, offering precise control and responsiveness required in industrial environments. Its surface mount SOIC package with compact dimensions (13 mm length, 7.6 mm width, and 2.35 mm height) ensures easy integration into modern PCB designs.

Operating reliably between temperatures of -25°C and 125°C, the L6225DTR is engineered to withstand demanding industrial and manufacturing conditions. While it does not meet automotive standards, it is excellent for laboratory, robotics, HVAC, manufacturing automation, and other commercial motor control solutions.

The device offers an output current of 2.8 A peak and a supply current of 1.4 A, allowing efficient power delivery and motor operation with dual full bridge architecture. Mounted via surface technology, it ensures compatibility with automated PCB assembly processes used in electronics manufacturing.

Supports brushed DC motors with full bridge configuration for efficient control. Max supply voltage: 52 V, Output current: 2.8 A peak switching capability. Compact 20-pin SOIC package dimension 13 x 7.6 x 2.35 mm. Operating temperature range between -25°C and 125°C for industrial reliability.

Typical switching frequency at 100 kHz for precise motor control. Surface mount technology enhances integration in modern electronic assemblies. Manufactured in Malaysia ensuring consistent quality. Ideal for industrial control, manufacturing, and robotics applications.

Does not conform to automotive standards. Explore our extensive range of electronic components and Motor Driver ICs at EnvMart for your industrial and manufacturing automation projects.
