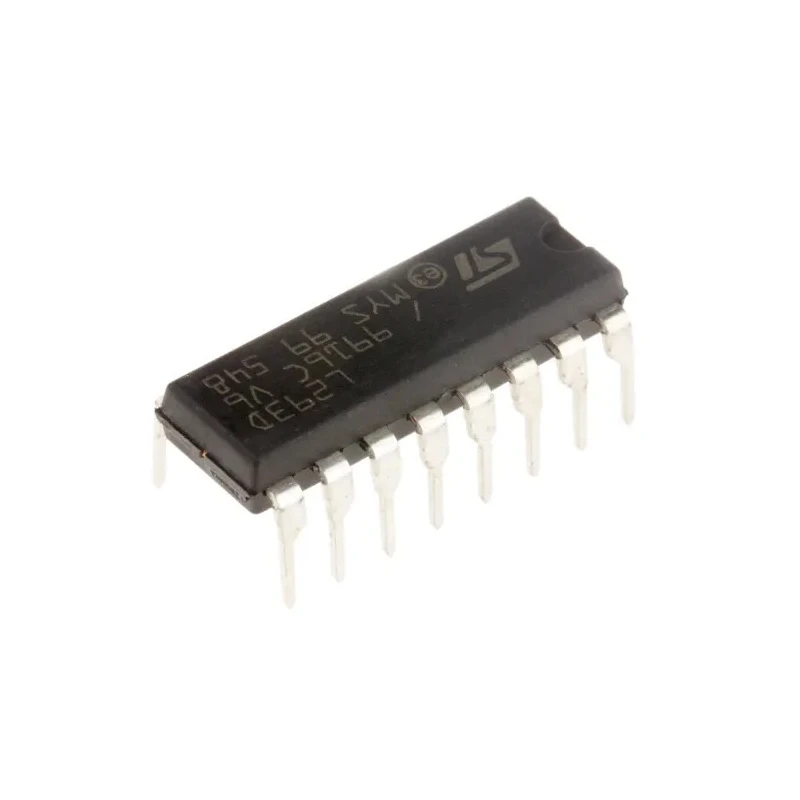

STMicroelectronics Brushed DC Motor Driver IC, Quad Configuration, 36 V 0.6 A Output, 16-Pin PDIP L293D
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | STMicroelectronics |
| Height | 5.1mm |
| Length | 20mm |
| Model | L293D |
| Width | 7.1mm |
| Motor Type | Brushed DC Motor |
| Mount Type | Through Hole |
| Series | L293D |
| Configuration | Quad |
| Output Current | 1.2A |
| Maximum Operating Temperature | 150°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Collector Emitter Voltage Vceo | 36V |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 100μA |
| Maximum IGBT Collector Current | 0.6A |
| Typical Switching Frequency | 5kHz |
| Inverter Power Rating | 4W |
Key Features
- The IC supports driving small to medium brushed DC motors efficiently.
- It integrates internal clamp diodes for overprotection and relay driving.
- The device features a typical switching frequency of 5 kHz for motor control.
- Its operating temperature ranges from -40°C to 150°C ensuring durability under harsh conditions.
- Designed with four center pins connected for enhanced heatsinking.
- The package employs a through-hole mount type suitable for PCB assembly.
- Rated for output current capability of up to 600 mA per channel and 1.2 A total output current.
- Compact dimensions of 20 mm length, 7.1 mm width, and 5.1 mm height.
Product Description
STMicroelectronics L293D Brushed DC Motor Driver IC offers robust four channel push-pull driving capability integrated within a monolithic high voltage IC designed specifically for brushed DC motors. Operating at a maximum collector emitter voltage of 36 V and output currents up to 0.6 A per channel, this motor driver IC allows precise bidirectional control of two motors simultaneously.
Featuring a 16 pin plastic dual in-line package (PDIP) with through-hole mounting, the device is optimized with four center pins connected internally that act as heatsinks enhancing thermal dissipation during operation.
This motor driver supports a wide supply voltage range from 4.5 V to 36 V with a typical switching frequency of 5 kHz, suitable for various industrial and embedded motor control applications. The internal clamp diodes provide protection against inductive load spikes making it ideal for relay and inductive load drives in automation and control systems.
The device reliably performs over an extended operating temperature range of -40°C to 150°C ensuring long-term stability in harsh environments. With its compact dimensions and standardized pin count of 16, the L293D meets the requirements for efficient PCB design and integration.
Designed in Malaysia, this new motor driver IC meets industry standards without automotive certification but excels in applications like robotics, industrial automation, and consumer electronics motor control.
The IC delivers 600 mA output current capability per channel with protection and integrated diodes. The device supports simultaneous control of a pair of brushed DC motors effectively. Its advanced thermal design includes four center heatsink pins for improved power dissipation.
Compact PDIP packaging enables easy use within through-hole PCB assemblies. The wide voltage range and frequency support make it adaptable to miscellaneous industrial control tasks. This product is part of the STMicroelectronics L293D series of motor driver ICs, widely utilized across electronics for reliable motor control.
Browse EnvMart's extensive range of Motor Driver ICs for compatible industrial components and advanced solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L293D motor driver IC has a maximum output current capability of 600 mA per channel, with a total output current of 1.2 A.
This model features a typical switching frequency of 5 kHz for motor control applications.
The operating temperature range for this motor driver IC is from -40°C to 150°C, ensuring functionality in harsh environments.
It is designed to drive brushed DC motors, providing efficient control for small to medium applications.
The dimensions of the L293D are 20 mm in length, 7.1 mm in width, and 5.1 mm in height.
The maximum collector emitter voltage (Vceo) for this model is 36 V.
This motor driver IC employs a through-hole mount type suitable for PCB assembly.
Yes, it integrates internal clamp diodes for protection against inductive load spikes, making it suitable for relay and inductive load drives.
The minimum supply voltage required for this motor driver IC is 4.5 V.
This model has a pin count of 16, which is standard for its package type.
The L293D is suitable for applications such as robotics, industrial automation, and consumer electronics motor control.
The supply current for this motor driver IC is 100 μA.
