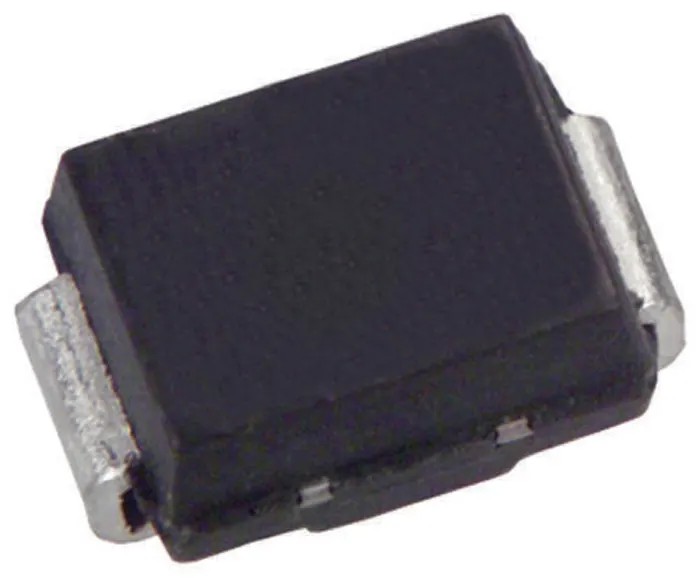

Vishay 1-Element Bi-Directional TVS Diode 600 W Surface Mounted DO-214 Package SMBJ24CA-E3/5B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ24CA-E3/5B |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 38.9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 15.4A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed to protect electronic circuits from transient voltage surges.
- Bi-directional diode configuration provides symmetrical voltage clamping.
- Offers low clamping voltage of 38.9 V to safeguard sensitive components.
- Operating temperature range from -55°C to 150°C suits harsh environments.
- Features low maximum reverse leakage current of 1 µA for efficient operation.
- Compliance with automotive standard AEC-Q101 ensures reliability in automotive applications.
- Fast response time and low incremental surge resistance enhance protection capability.
- Tested with 1 mA test current and maximum peak pulse current rating of 15.4 A.
Product Description
Vishay SMBJ24CA-E3/5B is a high-performance transient voltage suppressor (TVS) diode designed for protecting sensitive electronic devices from voltage spikes and surges. Featuring a single-element, bi-directional diode configuration, this device provides effective clamping of transient voltage with a peak pulse power rating of 600 W. Its compact DO-214 surface mount package allows it to be used in densely packed circuit assemblies.
The diode has a minimum breakdown voltage of 26.7 V and a maximum reverse stand-off voltage of 24 V, ensuring protection against high-voltage transients. It operates reliably across a wide temperature range from -55°C up to 150°C, making it suitable for industrial, automotive, and consumer electronics applications requiring robust protection.
With excellent clamping voltage of 38.9 V and low maximum reverse leakage current of just 1 µA, this TVS diode maintains circuit integrity while minimizing power loss. Its fast response time and low incremental surge resistance assure immediate transient suppression, safeguarding circuit components efficiently.
The SMBJ24CA-E3/5B meets the automotive standard AEC-Q101, which certifies its suitability for automotive electronic systems where reliability and durability are critical.
Physical dimensions include a length of 4.57 mm, width of 3.94 mm, and height of 2.24 mm, adhering to the DO-214 package specifications favored in SMT technology for automation and space-saving circuit board layouts.
Designed for transient voltage suppression and electrostatic discharge protection. Bi-directional operation protects circuits in both forward and reverse voltage directions. Compact and low profile suitable for surface mount PCB assembly.
Automotive-grade robustness certified to AEC-Q101 standard. Fast response time minimizes damage from transient events. Low leakage current preserves circuit efficiency and safety. Suitable for industrial, automotive, consumer electronics, and power management applications.
Complies with RoHS environmental standards, ensuring eco-friendly manufacturing. Package designed for efficient thermal dissipation under surge conditions.
This Vishay TVS Diode is ideal for industries including automotive electronics, power supplies, industrial controls, and communication equipment requiring reliable transient protection. It supports industrial and embedded system customers seeking low maintenance and high reliability components.
Explore more Vishay semiconductor protection devices and related electronic components on EnvMart to fulfill diverse protection needs in electrical and electronic engineering applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 600 W, allowing it to effectively handle high voltage transients.
It operates reliably across a temperature range from -55°C to 150°C, making it suitable for harsh environments.
The clamping voltage of this diode is 38.9 V, which helps protect sensitive components from voltage spikes.
The dimensions of this TVS diode are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height, conforming to the DO-214 package specifications.
The maximum reverse leakage current is 1 µA, which contributes to maintaining circuit efficiency.
Yes, it complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The minimum breakdown voltage is 26.7 V, which is essential for protecting against high-voltage transients.
This model is designed for surface mounting, making it suitable for compact circuit assemblies.
This diode features a single element configuration, which is effective for bi-directional voltage clamping.
The maximum peak pulse current rating for this diode is 15.4 A, providing robust protection against transients.
It has a bi-directional diode configuration, allowing it to protect circuits from voltage surges in both directions.
It is suitable for applications in automotive electronics, power supplies, industrial controls, and communication equipment requiring transient protection.
