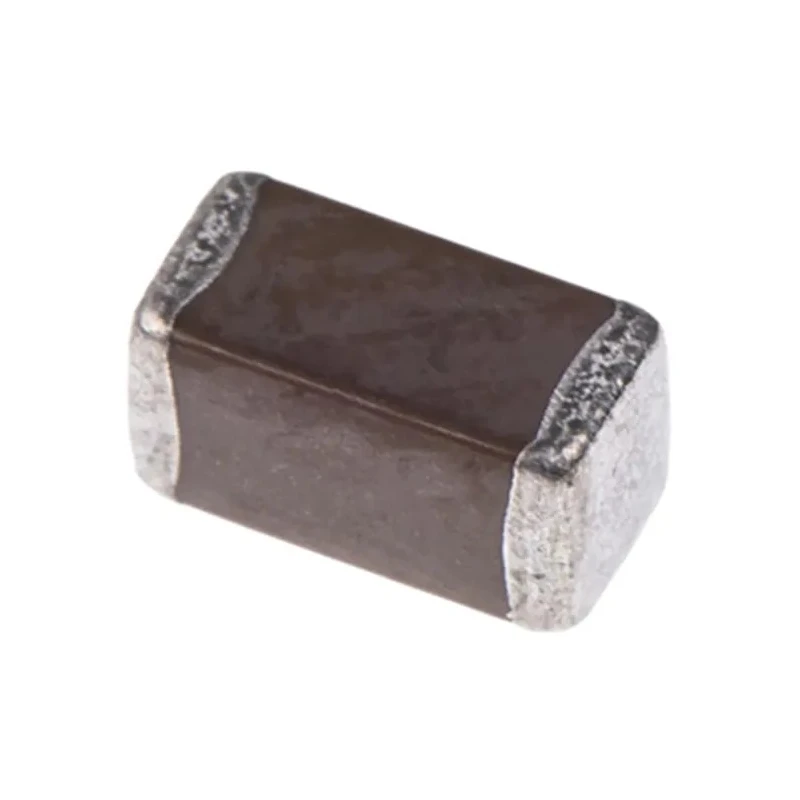

TDK 470 nF Multilayer Ceramic Capacitor 25V DC ±10% Tolerance Surface Mount CGA3E3X7R1E474K080AB

Free Delivery in India | Lowest Global Shipping Charges

TDK 470 nF Multilayer Ceramic Capacitor 25V DC ±10% Tolerance Surface Mount CGA3E3X7R1E474K080AB



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	25V dc
Brand	TDK
Height	0.9mm
Length	3.2mm
Model	CGA3E3X7R1E474K080AB
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA3
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	X7R
Automotive Standard	AEC-Q200

Key Features

Capacitance of 470 nF for effective filtering and signal conditioning.
±10% capacitance tolerance ensuring consistent performance.
Surface mount package type 0603, ideal for automated PCB assembly.
Dielectric type X7R providing temperature stability from -55°C to 125°C.
AEC-Q200 automotive standard qualified for high reliability in automotive electronics.
RoHS compliant, environmentally friendly manufacturing.
Packaging via Tape & Reel suitable for high volume manufacturing.
Manufactured in Japan ensuring high-quality standards.

Product Description

TDK CGA3E3X7R1E474K080AB is a Multilayer Ceramic Capacitor (MLCC) designed with a capacitance of 470 nF and rated for 25V DC voltage. This surface mount device features ±10% tolerance and uses an X7R dielectric, making it suitable for applications requiring stable capacitance across a wide temperature range, from -55°C to 125°C.

This 0603 size MLCC measures 3.2mm in length, 0.8mm in width, and 0.9mm in height, optimized for automated mounting on printed circuit boards. The capacitor is AEC-Q200 qualified, ensuring compliance with automotive electronics standards and making it a reliable choice for automotive battery line smoothing, sensor modules, engine control units, anti-lock brake systems, infotainment systems, smart meters, smart grids, solar inverters, and AC-DC battery chargers.

Low equivalent series inductance (ESL) and low equivalent series resistance (ESR) provide excellent frequency characteristics and reduced self-heating, ensuring improved performance and longevity in demanding conditions. The tape and reel packaging facilitates efficient high-volume production and assembly.

Capacitance: 470 nF with ±10% tolerance. Voltage rating: 25V DC. Dielectric: X7R for wide temperature operation (-55°C to 125°C). Package/Case size: 0603 surface mount. AEC-Q200 automotive grade compliance. Dimensions: 3.2mm (L) x 0.8mm (W) x 0.9mm (H).

RoHS compliant environmental standards. Packaging method: Tape & Reel for automated assembly. Country of Origin: Japan.

This capacitor is suitable for diverse electronics manufacturing sectors including industrial machinery, automotive electronics, and consumer electronics. Explore TDK products and MLCC capacitors on EnvMart for high-quality passive components essential in modern electronic design.
