| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 2A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 50394 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Milli-Grid Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 40mΩ |

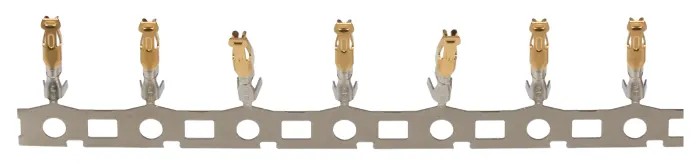

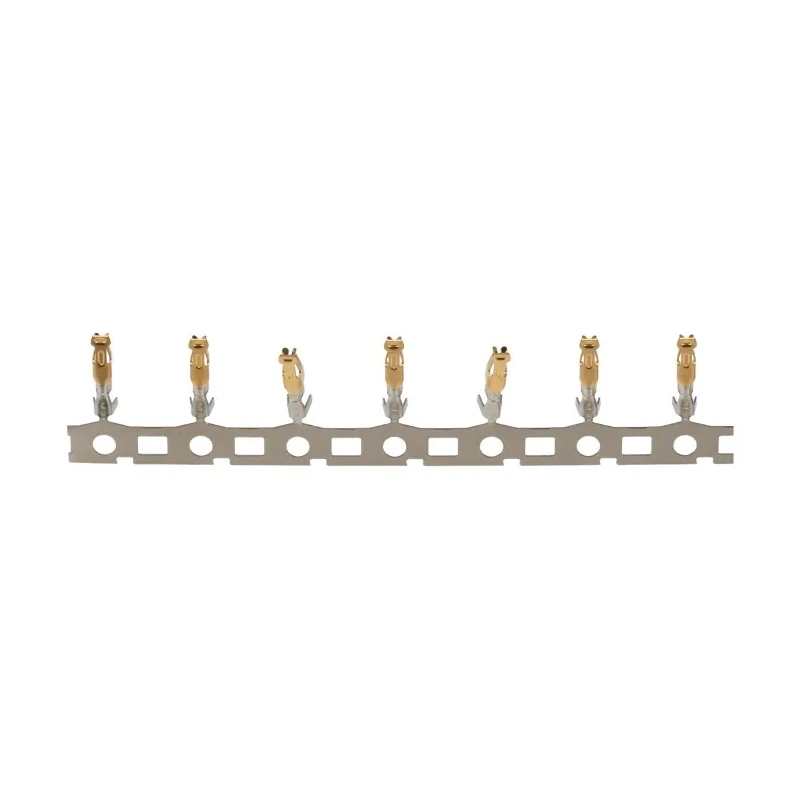

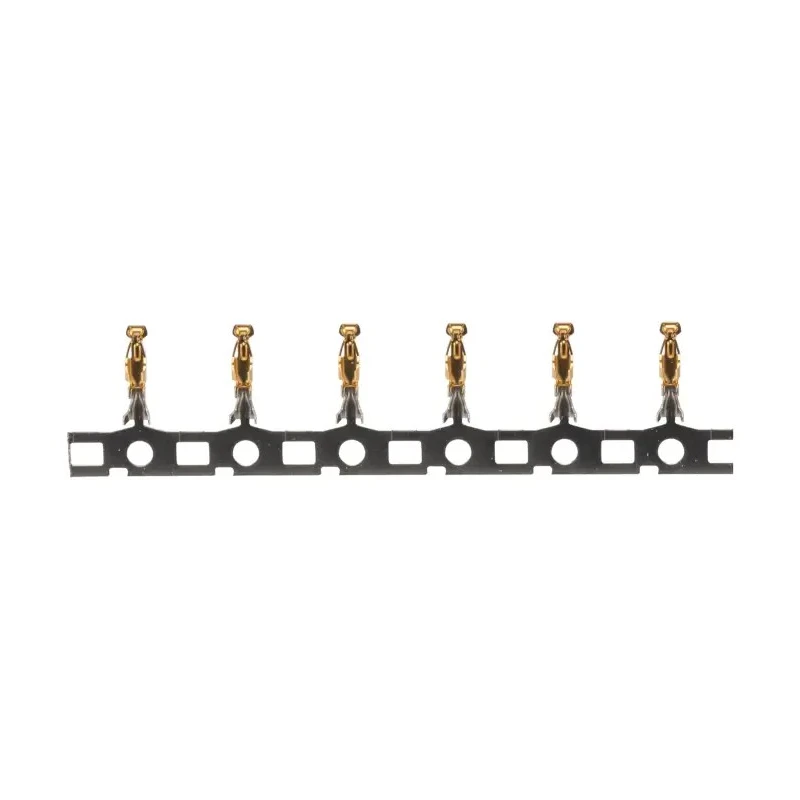

The Molex 50394-8054 female crimp terminal is an essential component designed for high-quality and reliable electrical connections in industrial, laboratory, and commercial electronic applications. Manufactured using phosphor bronze and featuring gold plating on the contact surfaces, this terminal ensures optimal conductivity and corrosion resistance.
Operating reliably in temperatures ranging from -40°C to 105°C, it supports a current rating of 2 amps and accommodates wire sizes from 30 AWG (0.05 mm²) to 24 AWG (0.2 mm²). Its crimp termination type facilitates secure and durable wire connections, making it suitable for automation systems, precision electronic assemblies, and mechanical components requiring efficient electrical performance.
This crimp terminal is part of the reputable Molex 50394 series and is designed for use with Milli-Grid connector housings. The female gender design allows versatile integration into multiple connector types. The compact and robust build ensure it maintains low contact resistance (maximum 40 milliohms) and reliable contact stability under operational stresses.
Phosphor bronze construction offers excellent mechanical strength and electrical conductivity. Gold plated contact surfaces prevent oxidation and signal degradation. Compatible with wire sizes from 30 AWG to 24 AWG providing application flexibility.
Operating temperature range supports diverse environmental conditions. Crimp termination ensures secure and permanent wire attachment for industrial use. Designed for Milli-Grid connector housings and reliable automation system connections.
Female gender contact suitable for various connector housing applications. Maximum contact resistance of 40 milliohms for consistent electrical performance.
This product is ideal for professionals involved in electronic manufacturing, industrial automation, and electrical system design requiring dependable and compact crimp terminals. It supports manufacturing efficiency and assembly integrity in demanding environments.
