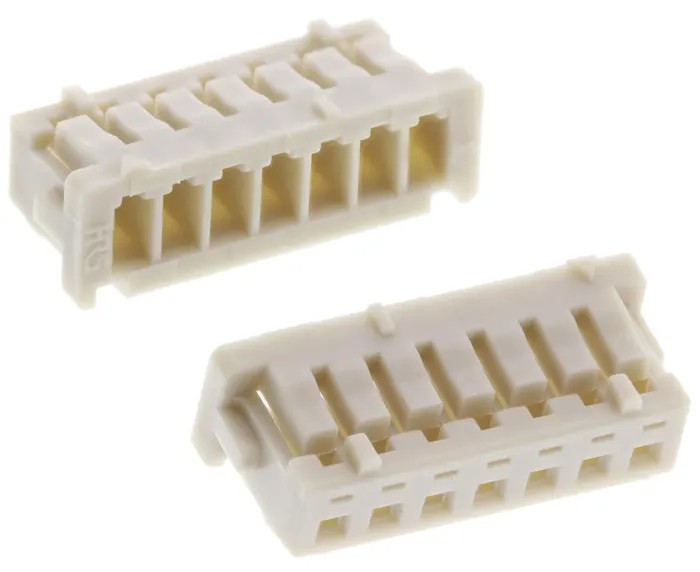

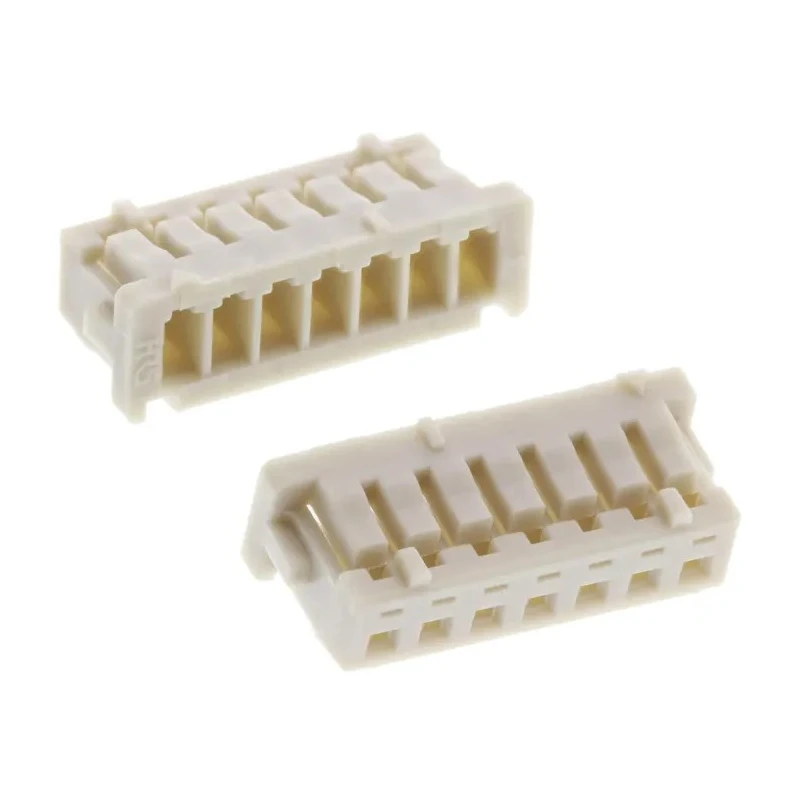

Hirose DF13 Male Connector Housing 1.25 mm Pitch 7 Way 1 Row Straight

Hirose DF13-7S-1.25C male connector housing offers a miniature 7-way connection with a 1.25 mm pitch designed for compact electronic devices and applications. Manufactured from polyamide, this straight orientation connector housing is suitable for robust cable mounting and ensures secure connections with its friction locking mechanism.

This housing supports one row of contacts, making it ideal for space-saving wiring in small electronic components such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices.

The miniature DF13 series connector housings provide multiple signal transmissions with high density in small footprints. The polarisation slots prevent incorrect insertion, enhancing reliability during assembly and use.

With dimensions of 10.4 mm length and 3.2 mm width, this connector fits tightly on PCBs and in compact assemblies. Its polyamide construction delivers durable insulation and mechanical strength required in precision electronic assemblies.

This connector housing is designed for 7 contacts in a single row configuration. It features a 1.25 mm pitch, which is ideal for miniature, space-saving applications. The housing is made from durable polyamide material ensuring long-term reliability.

Its straight orientation and friction locking mechanism secure the mating connection firmly. Suitable for use with DF13 series connectors to facilitate multiple signal transmissions. Typical applications include digital cameras, LCD displays, measurement devices, and access control units.

Its miniature design supports high-density electronics requiring compact wiring solutions. The connector housing does not include additional approvals but meets functional design standards. Length of the connector housing is 10.4 mm with a width of 3.2 mm for precise PCB integration.

This product is classified under PCB Connector & Wire Housing category within Electronics Components, making it a vital component for modern electronic assembly, industrial electronics, and manufacturing processes. It is designed to aid in efficient cabling and connection durability.
