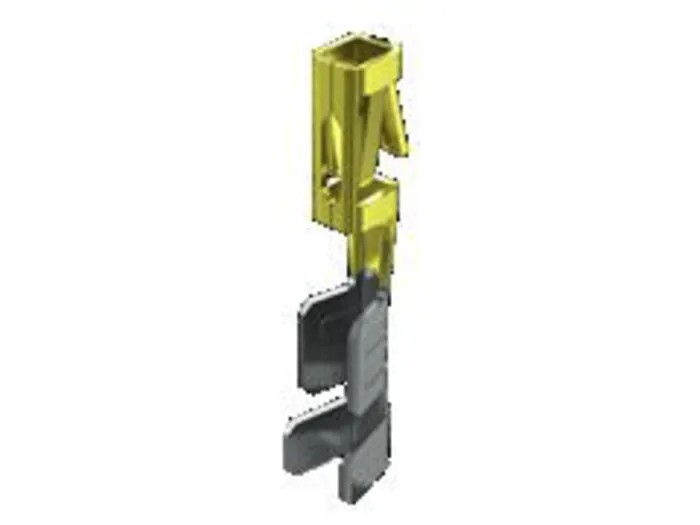

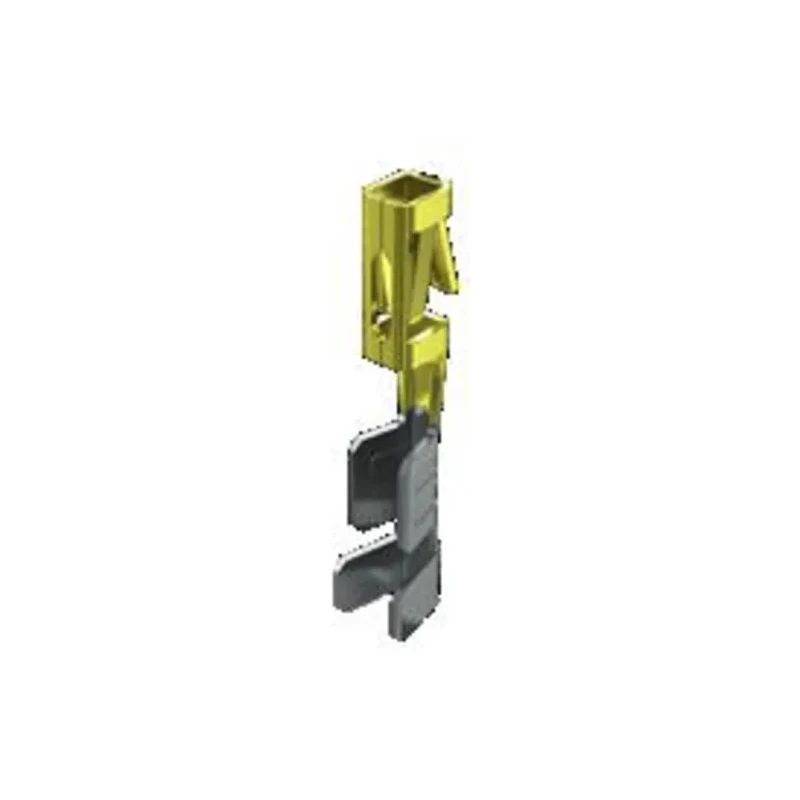

Samtec Female Crimp Terminal CC79L Series 20 AWG Min Crimp 30 AWG Max Gold Plated Phosphor Bronze
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Current | 2.9A |
| Model | CC79L |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | CC79L |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Housing IPM1 |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 30AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Engineered for use with Housing IPM1 connectors.
- Rated for a maximum current of 2.9 Amperes.
- Constructed from phosphor bronze with gold plating for corrosion resistance.
- Operates safely between -55°C and 125°C temperature range.
- Features a crimp termination type for secure wire connections.
- Compatible with 20 to 30 AWG PVC and Teflon® insulated wires.
- Offers low maximum contact resistance of 15 milliohms.
- Loose contacts and assembly tooling available for efficient installation.
Product Description
Samtec CC79L-2024-01-L is a high-quality female crimp terminal engineered for electronics applications requiring secure and reliable wire connections. It supports a minimum crimp of 20 AWG and a maximum wire size of 30 AWG, ensuring versatility with various wire gauges.
The terminal features gold-plated contacts to provide excellent conductivity and corrosion resistance, built on a phosphor bronze base material enhancing durability. Designed specifically for Housing IPM1 connectors, the terminal supports currents up to 2.9A making it suitable for various low-power electronic circuits.
Its operating temperature range from -55°C to 125°C allows reliable performance in harsh temperature environments commonly found in industrial, automotive, and consumer electronics sectors.
The crimp termination type facilitates efficient and secure wire attachment, compatible with both PVC and Teflon® insulated wires in the 20-30 AWG range. The terminal's maximum contact resistance of 15 milliohms ensures minimal signal loss and reliable electrical contact.
Loose contacts are supplied to accommodate flexible assembly processes, and specialized tooling is available to streamline installation. This product is ideal for applications in industrial automation, electronic manufacturing, and maintenance, delivering a dependable connection solution.
Engineered for use with Housing IPM1 connectors. Rated for a maximum current of 2.9 Amperes. Constructed from phosphor bronze with gold plating for corrosion resistance. Operates safely between -55°C and 125°C temperature range.
Features a crimp termination type for secure wire connections. Compatible with 20 to 30 AWG PVC and Teflon® insulated wires. Offers low maximum contact resistance of 15 milliohms. Loose contacts and assembly tooling available for efficient installation.
Explore more electronics components like these in EnvMart's comprehensive Electronics Components category for reliable sourcing and quality assurance.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this female crimp terminal is 2.9 Amperes.
It operates safely between -55°C and 125°C, making it suitable for harsh environments.
This terminal is compatible with wire sizes from 20 AWG to 30 AWG, specifically for PVC and Teflon® insulated wires.
The contacts are constructed from phosphor bronze and feature gold plating for corrosion resistance.
The maximum contact resistance is 15 milliohms, ensuring minimal signal loss.
Yes, it is engineered for use with Housing IPM1 connectors.
It features a crimp termination type for secure wire connections.
Yes, specialized assembly tooling is available to streamline installation of this terminal.
This terminal is suitable for applications in industrial automation, electronic manufacturing, and maintenance.
The model number of this female crimp terminal is CC79L.
This female crimp terminal is manufactured in India.
The gold plating on the contacts provides excellent conductivity and enhances corrosion resistance.
