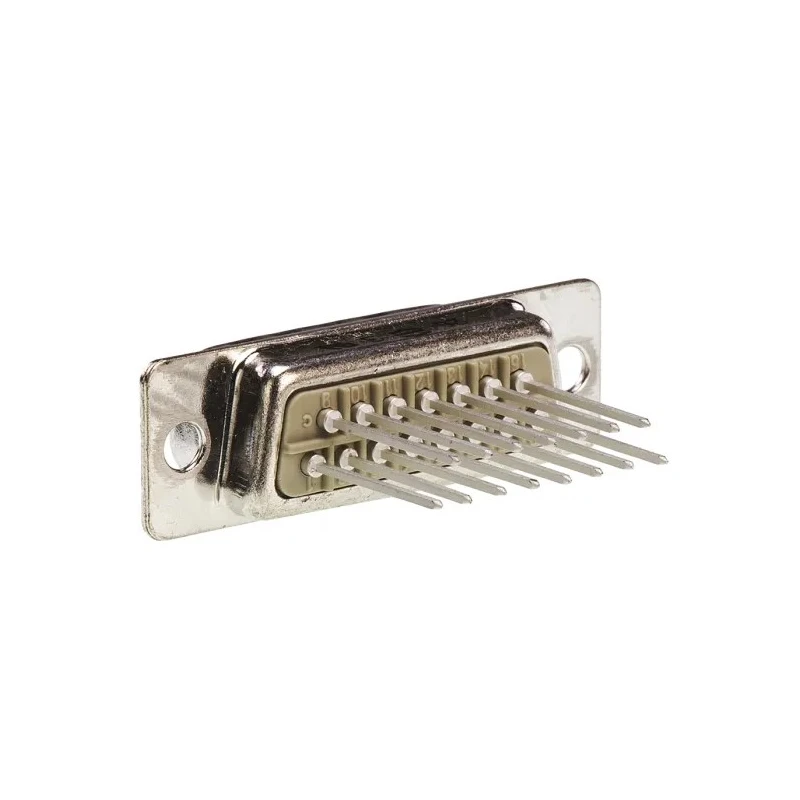

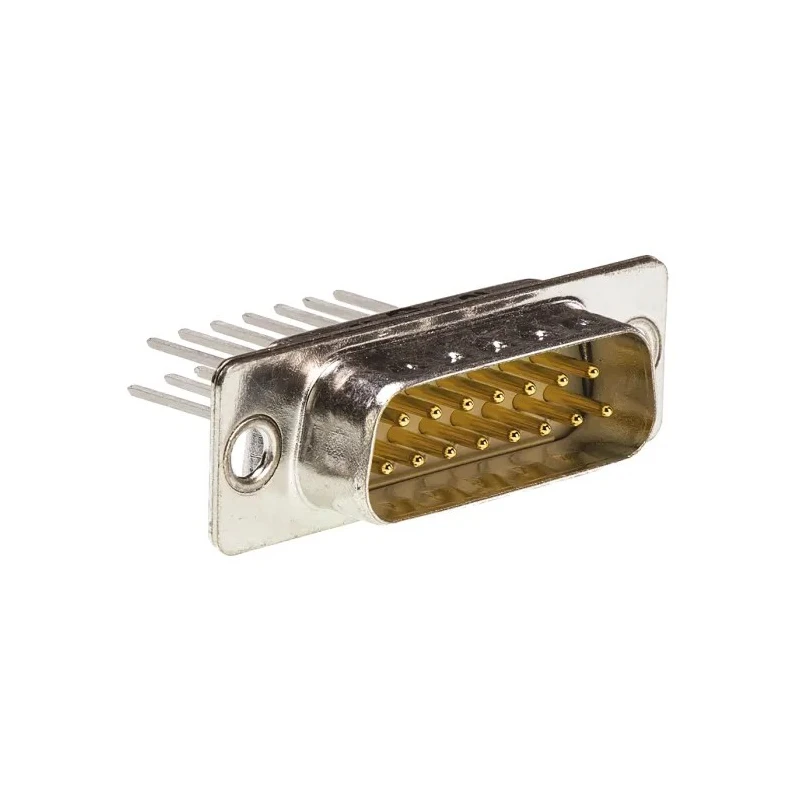

HARTING D-Sub Connector Panel Mount Metal Housing 15 Contacts 7.5A 1kV Pitch 2.74mm 09670155607
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Panel Mount |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | 0967 |
| Termination Type | Wire Wrap |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| D-Sub Shell Size | D |
Key Features
- Supports a current rating of 7.5A for robust power conduction.
- Features a gold over nickel plated copper alloy contact material for enhanced conductivity.
- Designed with a straight orientation and male connector gender for versatile applications.
- Operates reliably from -55°C to a maximum of 150°C operating temperature.
- Meets standards including MIL-C-24308, DIN 41652, and CECC 75301-802 for quality assurance.
- Termination type is wire wrap for efficient assembly and wiring.
- Compatible with panel mount installation for secure mounting.
- Shell size designation is D for form factor identification.
Product Description
HARTING 09670155607 is a high-quality D-Sub Connector designed for panel mount applications. It features a metal housing providing mechanical durability and shielding against electromagnetic interference. The connector has 15 contacts arranged with a 2.74 mm pitch, supporting current up to 7.5A and withstands voltage up to 1kV, suitable for various industrial electronic applications.
Its contacts are made of copper alloy with gold over nickel plating, ensuring reliable electrical performance and resistance to corrosion. The wire wrap termination type facilitates quick and secure wiring during assembly.
This connector is designed for a straight orientation and male contact gender, fitting seamlessly with complementary components. It complies with stringent standards such as MIL-C-24308, DIN 41652, and CECC 75301-802, assuring compatibility and performance consistency.
The operating temperature range from -55°C to 150°C makes it suitable for harsh environmental conditions encountered in industrial, manufacturing, electronic equipment, communication systems, and control gear installations.
Its panel mount feature provides a robust mounting solution to machinery, equipment panels, and electronic enclosures, enhancing connection reliability and ease of maintenance. Supports 15 contacts with 2.74 mm pitch for precise connection layout.
High current rating of 7.5A suitable for power and signal applications. Metal housing provides durability and EMI protection. Gold over nickel plating on copper alloy contacts for corrosion resistance. Wide operating temperature range (-55°C to 150°C) for versatile environments.
Wire wrap termination type for efficient installation. Conforms to MIL-C-24308, DIN 41652, CECC 75301-802 standards. Panel mount type ensures secure fixing to equipment panels.
This HARTING D-Sub Connector is ideal for demanding industrial and electronic applications requiring secure, reliable multi-contact connections. Explore more connectors and electronic components on EnvMart to complement your equipment needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 7.5A, making it suitable for power and signal applications.
It operates reliably within a temperature range of -55°C to 150°C, suitable for harsh environmental conditions.
The connector features 15 contacts arranged with a 2.74 mm pitch for precise connection layout.
It utilizes a wire wrap termination type, facilitating quick and secure wiring during assembly.
The contacts are made from copper alloy with gold over nickel plating, ensuring reliable electrical performance and corrosion resistance.
The shell size designation is D, which helps in identifying its form factor.
Yes, it is designed for panel mount installation, providing a secure mounting solution to equipment panels and electronic enclosures.
It complies with several standards including MIL-C-24308, DIN 41652, and CECC 75301-802 for quality assurance and compatibility.
This model has a straight orientation, which is versatile for various applications.
The voltage rating is up to 1kV, making it suitable for various industrial electronic applications.
The country of origin for this connector is India.
The housing is made of metal, providing mechanical durability and shielding against electromagnetic interference.
