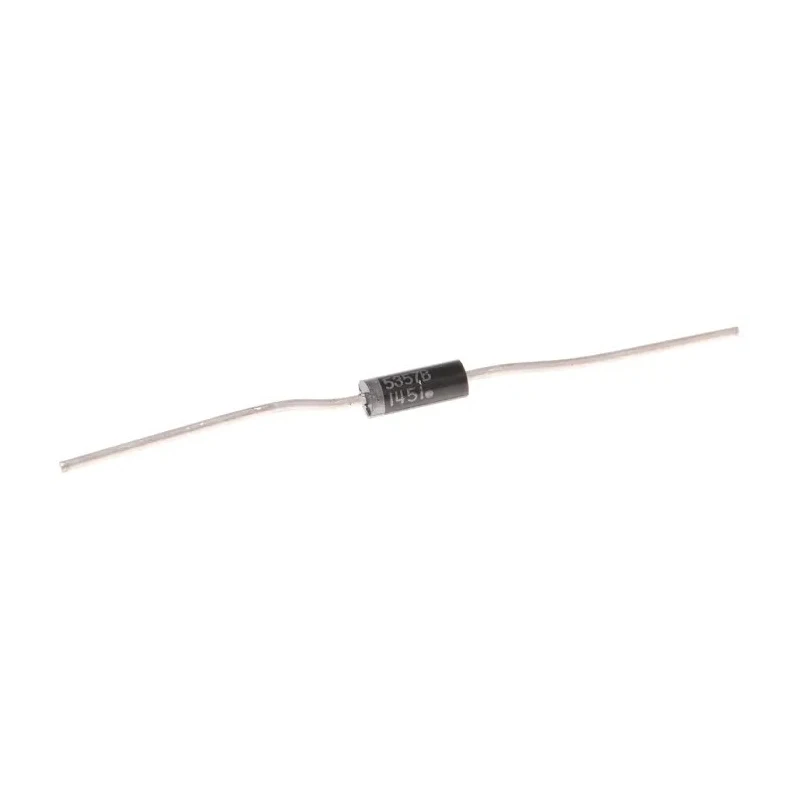

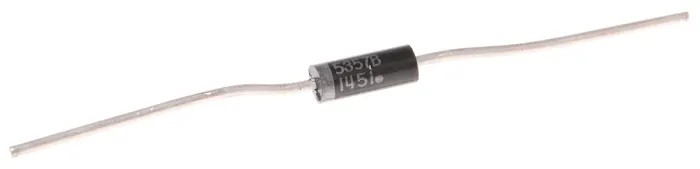

onsemi 20 V 5 W Through Hole Zener Diode Single 5% Tolerance 2-Pin DO-15 1N5357BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5357BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 65mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 20V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 3Ω |
| Diode, Zener, 1N5357BBrand | ON Semiconductor |
| 20V Zener diode,1N5357B 5WBrand | ON Semiconductor |
| onsemi, 20V Zener Diode 5% 5 W Through Hole 2-Pin 017AA-01Brand | ON Semiconductor |
Key Features
- Rated for maximum power dissipation of 5 watts.
- Nominal zener voltage of 20 volts with ±5% tolerance.
- Features a 2-pin axial-leaded DO-15 package for through hole mounting.
- Maximum operating temperature up to 200°C and minimum operating temperature -65°C.
- Test current rating of 65 mA with maximum reverse leakage current of 500 nA.
- Maximum zener impedance of 3 ohms ensuring stable voltage regulation.
- Constructed with molded thermosetting plastic package offering corrosion resistance and easy soldering.
- Ideal for industrial and electronic applications needing reliable voltage regulation.
Product Description
onsemi 1N5357BRLG is a high-quality Zener Diode designed for voltage regulation applications with a nominal voltage of 20 V and power dissipation rating of 5 W. This single element diode is configured in a 2-pin DO-15 through hole package, enabling easy mounting on circuit boards. It features a tight voltage tolerance of ±5%, providing accurate voltage stabilization in demanding industrial and electronic environments.
The diode operates within a temperature range from -65°C to 200°C, allowing reliable performance under varying thermal conditions. Its maximum reverse leakage current is 500 nA, and it possesses a maximum zener impedance of 3 ohms, which helps maintain consistent voltage regulation at the rated test current of 65 mA.
The molded thermosetting plastic housing is void-free transfer-molded for durability, with external surfaces resistant to corrosion and leads engineered for effortless soldering. Its axial lead configuration supports environmental protection in typical operating conditions, making it suitable for diverse industrial applications involving voltage regulation.
This Zener Diode is part of the 1N53 series from ON Semiconductor, known for superior silicon-oxide passivated junctions and voltage regulator capabilities. It is ideal for industrial electronic circuits requiring stable voltage references and reliable power dissipation capacity.
Rated for 5 watts maximum power dissipation. Nominal 20 V voltage with ±5% tolerance for regulated output. Through hole 2-pin DO-15 axial lead package for ease of PCB mounting. Wide operating temperature range from -65°C to +200°C.
Low reverse leakage current enhances performance. Durable molded plastic package ensures corrosion resistance. Suited to industrial and electronic voltage regulation duties.
Explore EnvMart’s wide range of semiconductor components for industrial and electronic applications, including Zener Diodes, voltage regulators, and other critical discrete components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 20 volts with a tolerance of ±5%.
This model has a maximum power dissipation rating of 5 watts.
The diode operates within a temperature range from -65°C to 200°C.
The maximum reverse leakage current for this diode is 500 nA.
The maximum zener impedance is 3 ohms, which helps maintain stable voltage regulation.
The test current rating for this zener diode is 65 mA.
It is packaged in a 2-pin DO-15 through hole configuration for easy mounting on circuit boards.
The diode features a molded thermosetting plastic package that is corrosion resistant and allows for easy soldering.
This diode is a single element diode, meaning it contains one zener element.
This model is part of the 1N53 series from ON Semiconductor.
It is suitable for industrial and electronic applications that require reliable voltage regulation.
