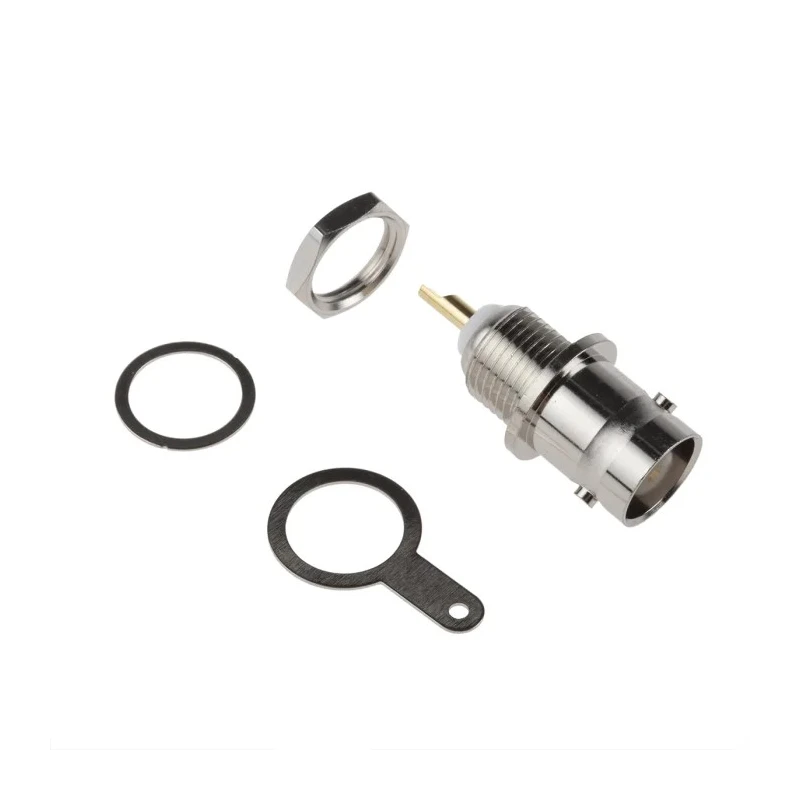

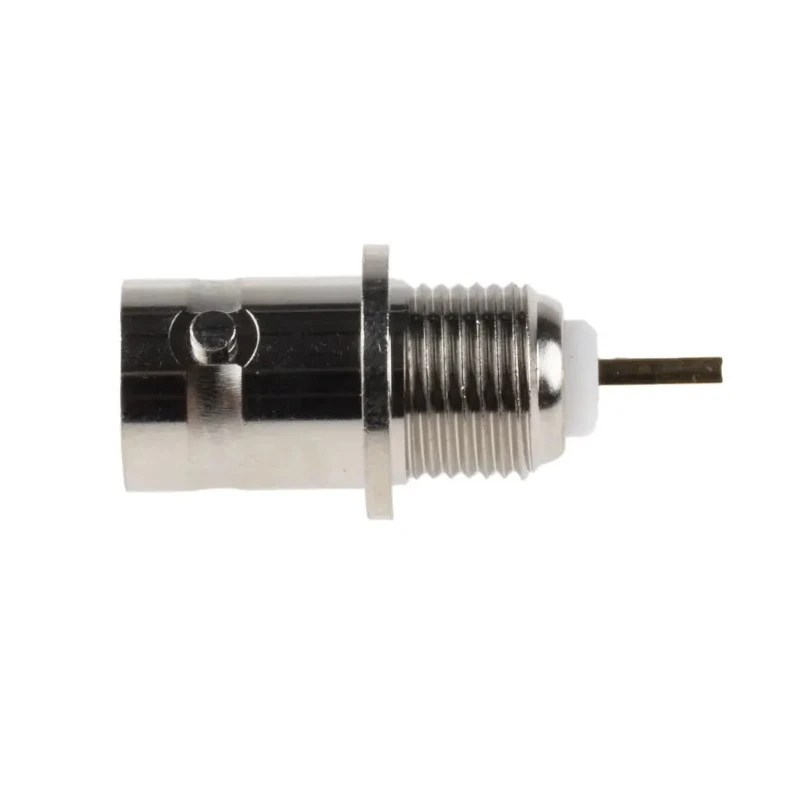

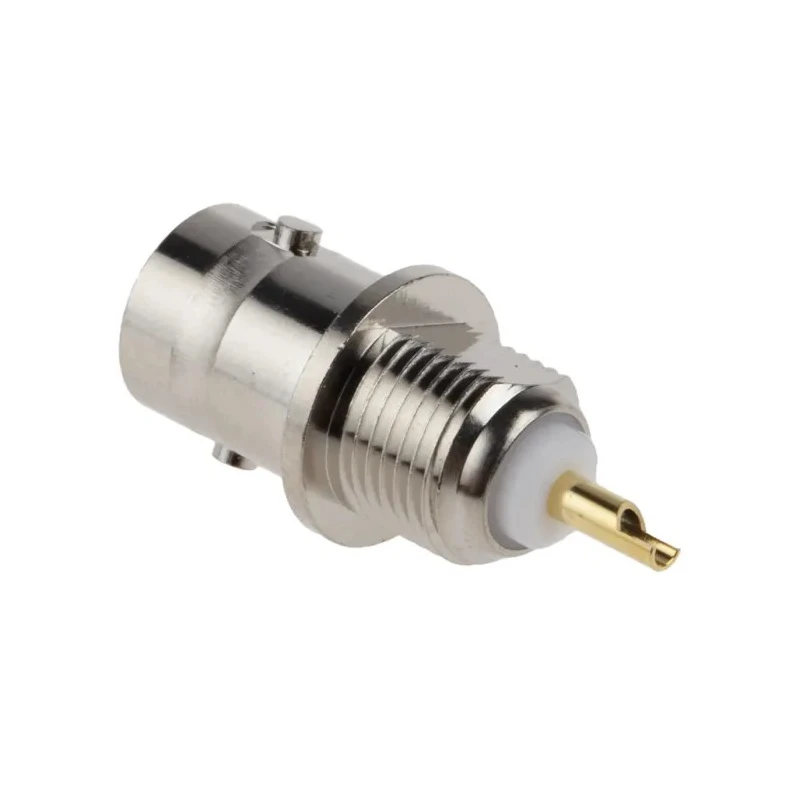

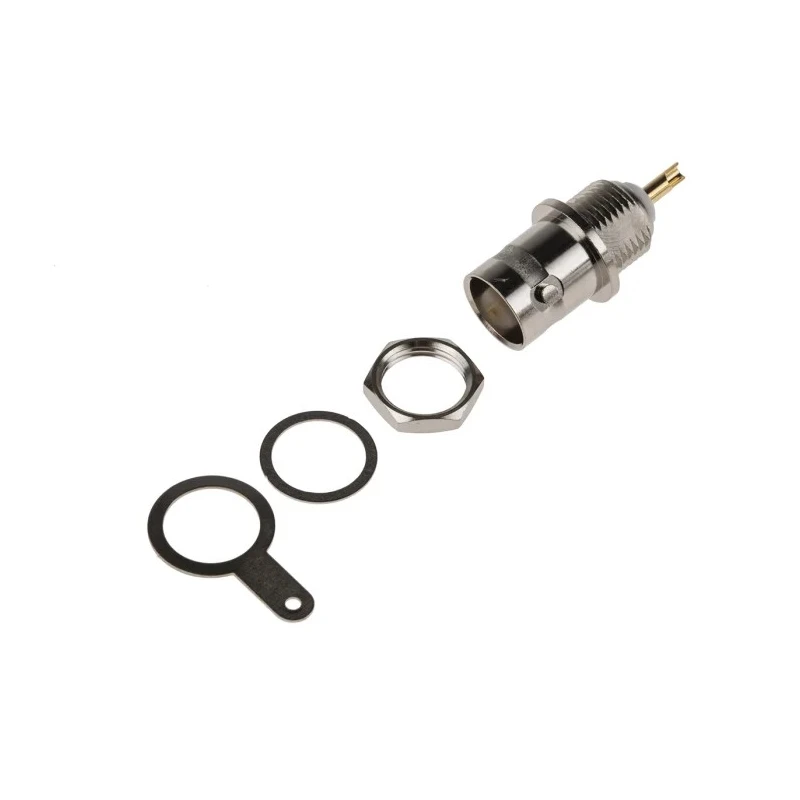

RS PRO BNC Series Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body, Solder Termination 546-4897
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-4897 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Solder |
| Cable Type | Coaxial |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| NiPt soldered std BNC bulkhead skt,50ohmBrand | RS PRO |
Key Features
- Panel mount with bulkhead design provides secure rear mounting to panels and chassis.
- Robust nickel-plated brass body offers heavy-duty build quality and corrosion resistance.
- Gold-plated female centre contact ensures excellent conductivity and long life.
- Solder termination type supports durable and reliable cable attachment.
- PTFE insulation material enhances reliability and electrical performance.
- Operates at frequencies up to 4 GHz suitable for RF signal applications.
- Features bayonet coupling system for fast and secure connection.
- Includes grounding tab for improved signal integrity and safety.
Product Description
RS PRO model 546-4897 is a high-quality BNC series coaxial connector designed for panel mount applications with female connection and a straight body configuration. The connector is intended for 50 Ω impedance coaxial cables and supports operating frequencies up to 4 GHz, making it suitable for various RF signal transmission uses.
The connector's body is nickel plated brass, providing a durable and corrosion-resistant finish, while the centre contact is gold plated for superior electrical conductivity and long-lasting performance. The termination type is solder, ensuring a robust attachment to coaxial cable conductors.
The design features a bulkhead with screw-on nut to facilitate secure mounting to panels and chassis, and it includes a grounding tab for enhanced signal integrity and grounding safety. Its bayonet coupling mechanism allows for quick and reliable mating with compatible connectors.
PTFE used as insulation material offers stable electrical insulation, which is critical in high-frequency applications such as telecommunications, CCTV, satellite communications, medical equipment, and test instruments.
Panel mount with bulkhead design provides secure rear mounting to panels and chassis. Nickel-plated brass body ensures durability and corrosion resistance. Gold-plated female centre contact offers excellent conductivity.
Solder termination for reliable cable connection. PTFE insulation assures reliable electrical performance. Operates up to 4 GHz frequency suited for RF applications. Bayonet coupling for fast and secure attachment. Grounding tab enhances signal integrity and safety.
Compatible with standard coaxial cables for various industrial uses.
This RS PRO Coaxial Connector is ideal for industrial, laboratory, telecommunications, CCTV, broadcasting, medical, and test equipment applications requiring reliable RF signal connections with panel mount integration.
Explore more high-quality RS PRO connectors and accessories in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at frequencies up to 4 GHz, making it suitable for RF signal applications.
It features a solder termination type, ensuring a robust and reliable attachment to coaxial cables.
The connector has a nickel-plated brass body for durability, a gold-plated female center contact for excellent conductivity, and PTFE insulation material for reliable electrical performance.
The impedance rating of this connector is 50 Ω, which is standard for many coaxial cable applications.
It features a panel mount design with a bulkhead and screw-on nut for secure mounting to panels and chassis.
This model has a female connector gender, which is designed for use with compatible male connectors.
Yes, it includes a grounding tab that enhances signal integrity and safety during operation.
It is ideal for industrial, laboratory, telecommunications, CCTV, broadcasting, medical, and test equipment applications requiring reliable RF signal connections.
This model is classified as a standard size connector, suitable for a variety of applications.
It is compatible with standard 50 Ω coaxial cables, making it versatile for various industrial uses.
The orientation of this connector is straight, allowing for direct connections without bends.
The country of origin for this connector is Taiwan.
