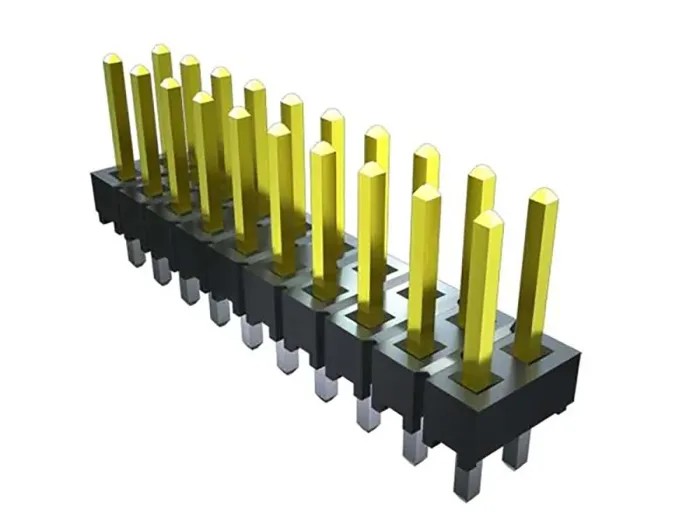

Samtec Pin Header TSW Series Straight Through Hole, 32 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-116-07-F-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V |
| Brand | Samtec |
| Orientation | Straight |
| Model | TSW-116-07-F-D |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | TSW |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Contact System | .025" (0.635 mm) square post |
Key Features
- Constructed with glass filled polyester housing for durability.
- Contacts are phosphor bronze plated with gold for excellent conductivity.
- Designed for board-to-board connector system with solder termination.
- Operates reliably within -55°C to 125°C temperature range.
- Supports a voltage rating up to 550 volts.
- Includes .025" (0.635 mm) square post contact system for secure connections.
- Offers high mating cycles with extended life under mixed flowing gas conditions.
- Ideal for electronic, industrial, and communication device assembly applications.
Product Description
Samtec TSW-116-07-F-D is a high-quality pin header from the TSW series designed for reliable electronic connections. It features 32 male contacts arranged in two rows with a 2.54 mm pitch suitable for through-hole mounting on printed circuit boards (PCBs). The housing is made of glass filled polyester, providing structural integrity and insulation.
The contact material comprises phosphor bronze plated with gold to ensure excellent conductivity and corrosion resistance. This connector supports a voltage rating of 550 volts and functions efficiently within a minimum operating temperature of -55°C and maximum of 125°C.
The TSW series offers a robust .025" square post contact system that provides secure mechanical and electrical connections with high mating cycle durability, thanks to its Extended Life Product™ status that passes 10-year Mixed Flowing Gas testing.
Its unshrouded design allows easy access for soldering and assembly. Typical applications include industrial electronics, communication devices, and other electronic equipment requiring board-to-board connections with enhanced reliability.
The pin header supports straight orientation and is suitable for multiple electronic and manufacturing applications requiring through-hole mounting type connectors. Constructed with glass filled polyester housing for durability.
Contacts are phosphor bronze plated with gold for excellent conductivity. Designed for board-to-board connector system with solder termination. Operates reliably within -55°C to 125°C temperature range. Supports a voltage rating up to 550 volts.
Includes .025" (0.635 mm) square post contact system for secure connections. Offers high mating cycles with extended life under mixed flowing gas conditions. Ideal for electronic, industrial, and communication device assembly applications.
Mounts via through-hole for robust mechanical strength on PCBs. Explore EnvMart's expansive catalog of PCB Headers and connectors to find compatible components and accessories for your electronics projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header supports a voltage rating of up to 550 volts.
It operates reliably within a temperature range of -55°C to 125°C.
This model features 32 male contacts arranged in two rows.
The contacts are arranged with a pitch of 2.54 mm.
The housing is made of glass filled polyester, while the contacts are phosphor bronze plated with gold for excellent conductivity.
It features a solder termination type, designed for through-hole mounting.
This model is designed as a board-to-board connector system.
The TSW-116-07-F-D is an unshrouded pin header, allowing easy access for soldering and assembly.
It includes a .025" (0.635 mm) square post contact system for secure connections.
The country of origin for this product is India.
It is ideal for electronic, industrial, and communication device assembly applications.
It mounts via through-hole for robust mechanical strength on printed circuit boards.
