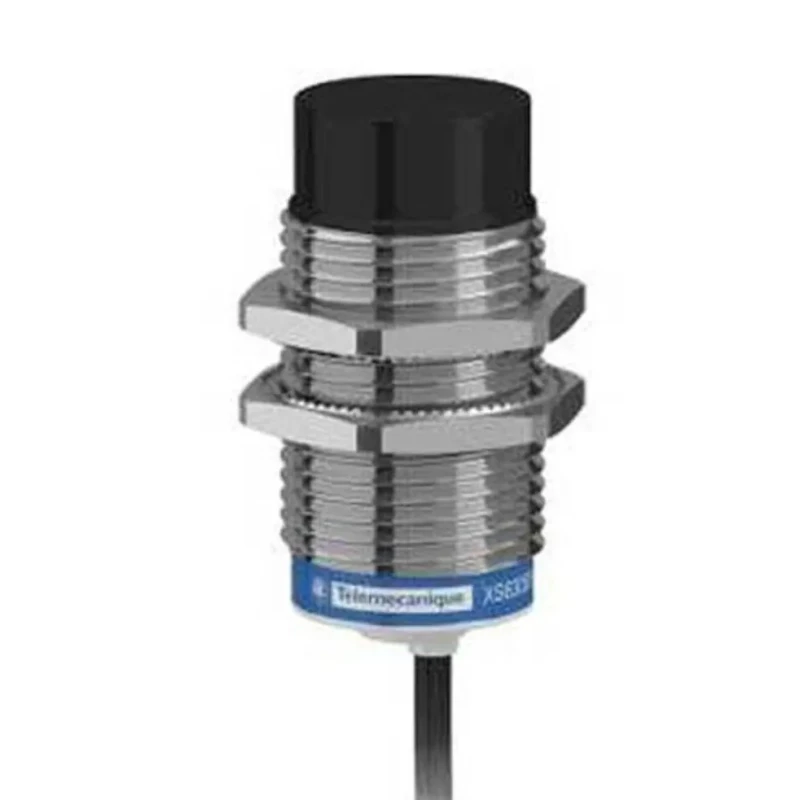

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 PNP 48V dc 30 mm XS630B5PAL2

Telemecanique Sensors XS630B5PAL2 is a high-performance Threaded Barrel Inductive Proximity Sensor designed for reliable metal detection in industrial automation applications. Featuring a threaded cylindrical M30 x 1.5 body with non-flush mounting, this sensor offers a nominal sensing range of 30 mm and compact length of 64 mm. It operates on a supply voltage of 12 to 48 V dc with maximum voltage tolerance up to 58 V dc, ensuring safe and flexible power options.

The sensor housing is nickel plated brass with a front PPS face that provides mechanical strength and corrosion resistance. Designed for harsh industrial environments, it has an IP rating of IP65, IP67, and IP69K, making it impervious to dust, high-pressure water, and jets, suitable for food, pharma, manufacturing, and material handling sectors.

Equipped with a PNP normally open output and a 2 m cable terminal, it provides discrete signal detection with a switching current of 200 mA and a maximum switching frequency of 500 Hz. The robust design includes reverse polarity protection and a yellow LED indicator to display output status clearly.

This sensor meets multiple international approvals and standards including CSA, E2, EN/ISO 13849-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 62061, TUV, and UL, ensuring safety and compliance for industrial installations.

Application areas include railway systems, mobile equipment, lifts and escalators, hoisting, material handling, packaging, food and beverage, and pharmaceutical industries where metal detection accuracy and durability are critical.

Operates with a nominal 48 V dc supply voltage and 58 V dc max voltage tolerance. 30 mm nominal detection distance for effective metal sensing. Nickel plated brass housing with PPS front for enhanced durability. Non-flush M30 x 1.5 threaded barrel mounting for versatile installation.

IP65, IP67, and IP69K certified for extreme environmental resistance. Yellow LED output state indicator for operational feedback. Certified under multiple safety and industry standards including UL and TUV. Ideal for applications in industrial automation, logistics, manufacturing, and mobile machinery.

This Telemecanique Sensors inductive proximity sensor belongs to the OsiSense XS range known for reliable non-contact metal object detection with high immunity to oil, dirt, and mechanical vibrations. It is engineered for industrial and laboratory automation control, supporting discrete signal outputs compatible with PLC systems.
