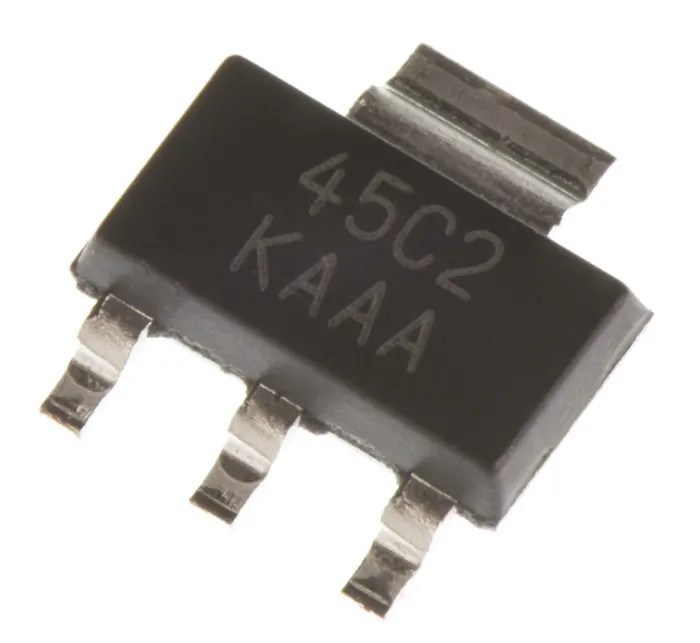

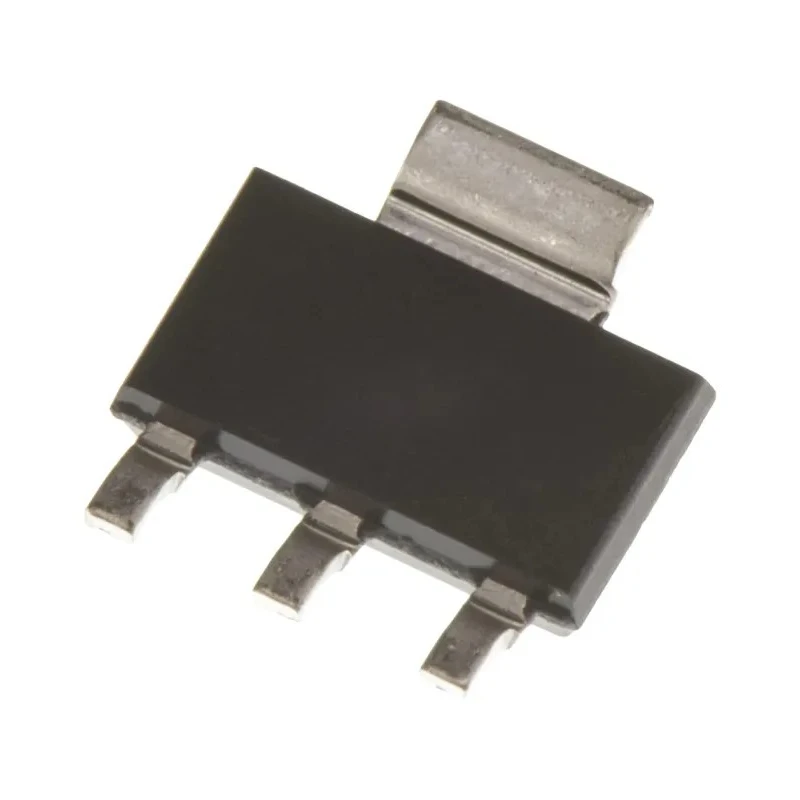

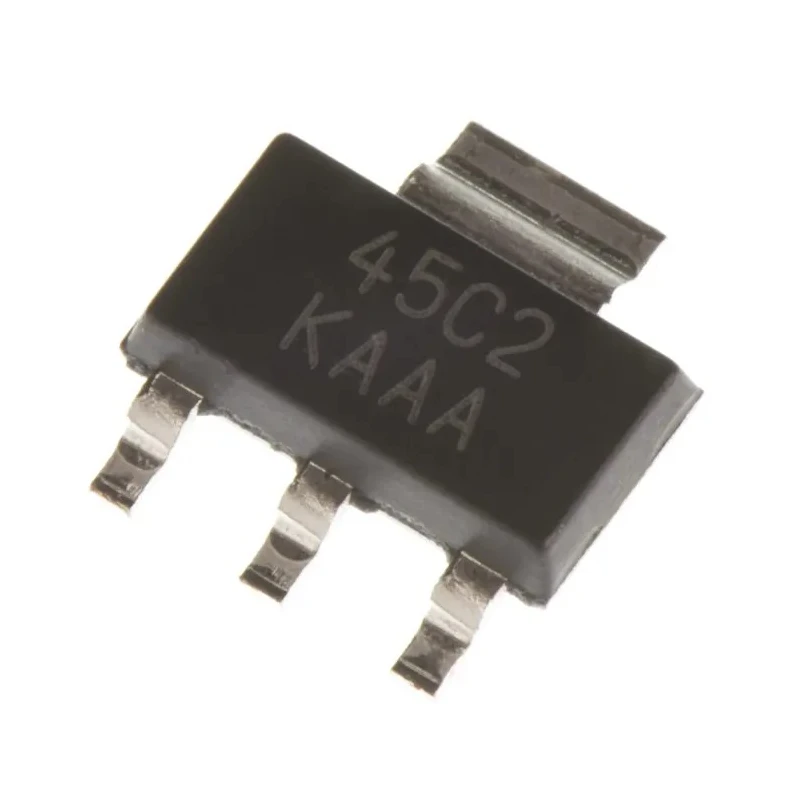

Texas Instruments Voltage Regulator 40V 4-Pin SOT-223 Package Surface Mount Positive Polarity LM2936MP-5.0/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 40V SOT-223 4-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 1.6mm |
| Length | 6.5mm |
| Model | LM2936MP-5.0/NOPB |
| Width | 3.56mm |
| Mount Type | Surface |
| Series | LM2936 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-223 |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 15μA |
| Minimum Input Voltage | 4V |
| Pin Count | 4 |
Key Features
- Operates with a maximum input voltage of 40V and minimum input voltage of 4V.
- Features a low quiescent current of 15μA for energy-efficient operation.
- Compact 4-pin SOT-223 surface-mount package measuring 6.5mm length, 3.56mm width, and 1.6mm height.
- Positive polarity voltage regulator designed for stable and reliable performance.
- Supports a maximum operating temperature of 125°C suitable for industrial applications.
- Provides excellent line voltage regulation and high power supply ripple rejection ratio.
- The LM2936 series is suitable for applications requiring low dropout voltage regulation up to 100mA output current.
- Compatible with PCB surface mount assembly for improved production efficiency.
Product Description
Texas Instruments LM2936MP-5.0/NOPB is a 40V low dropout (LDO) linear voltage regulator designed in a compact 4-pin SOT-223 surface-mount package. It is engineered for applications requiring consistent and efficient voltage regulation with low quiescent current of 15μA and positive polarity. The device supports a maximum input voltage of 40V and operates reliably with a minimum input voltage of 4V, making it suitable for a broad range of power management scenarios.
This voltage regulator offers robust performance with excellent line voltage regulation, high power supply ripple rejection ratio (PSRR), and can operate at maximum temperatures up to 125°C. The LM2936 family is optimized for circuits where low dropout voltage and low noise are critical, enabling smoother voltage output and enhanced stability in sensitive electronic components.
The compact SOT-223 package, measuring 6.5mm in length, 3.56mm in width, and 1.6mm in height, is surface-mount compatible and facilitates seamless PCB assembly, enabling improved manufacturing workflows. This makes it an ideal choice for industrial, commercial, and electronic designs that require efficient power management solutions in constrained board spaces.
Typical applications for the LM2936MP-5.0/NOPB voltage regulator include power management IC usage in electronic devices, embedded systems, telecommunications equipment, and instrumentation where low noise and efficient voltage regulation are mandatory.
Operates with a maximum input voltage of 40V and minimum input voltage of 4V. Features a low quiescent current of 15μA for energy-efficient operation. Compact 4-pin SOT-223 surface-mount package measuring 6.5mm length, 3.56mm width, and 1.6mm height.
Positive polarity voltage regulator designed for stable and reliable performance. Supports a maximum operating temperature level of 125°C for harsh environments. Suitable for industrial, consumer electronics, and embedded system applications requiring low dropout regulation.
Ideal for power supply circuits requiring low noise and high stability voltage references. Explore the Texas Instruments product range on EnvMart for more semiconductor and power management ICs designed to meet modern industrial and electronic design needs.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 40V.
It features a low quiescent current of 15μA, which contributes to energy-efficient operation.
The SOT-223 package measures 6.5mm in length, 3.56mm in width, and 1.6mm in height.
The minimum input voltage for this model is 4V.
It supports a maximum operating temperature of 125°C, making it suitable for industrial applications.
This model has a positive polarity, designed for stable and reliable performance.
Typical applications include power management in electronic devices, embedded systems, telecommunications equipment, and instrumentation.
The SOT-223 package has 4 pins.
It offers excellent line voltage regulation, ensuring stable output under varying input conditions.
Yes, it is compatible with PCB surface mount assembly, facilitating improved production efficiency.
This model belongs to the LM2936 series of voltage regulators.
The LM2936MP-5.0/NOPB provides a high power supply ripple rejection ratio, enhancing stability in sensitive circuits.
