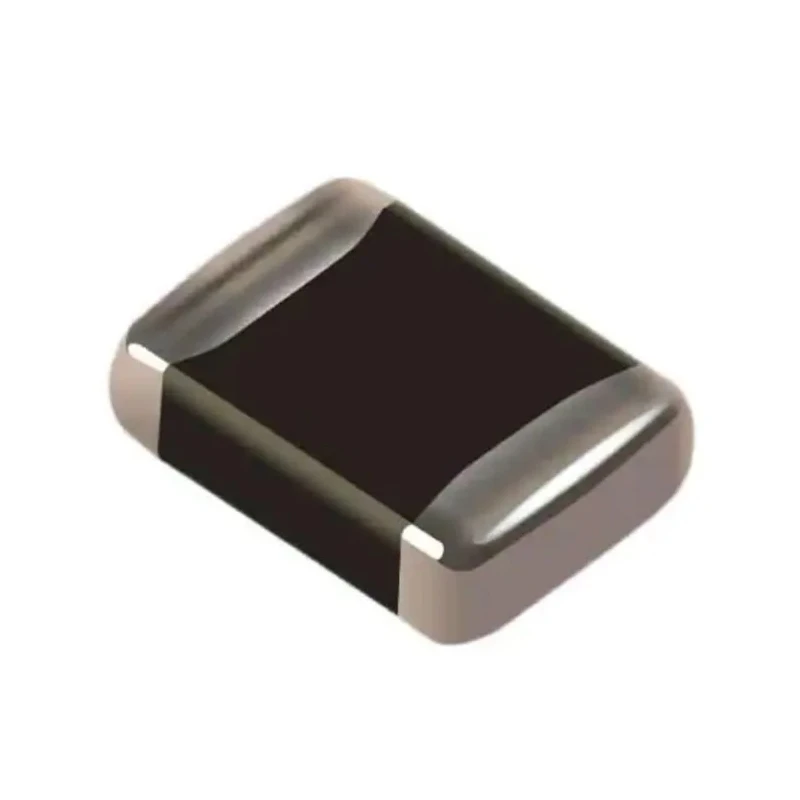

Bourns Surface Mount ZVHT Varistor 165 pF Capacitance, 1 A Clamping Current, 65 V Clamping Voltage, 39 V ZV25K0603300NIR1HT

Free Delivery in India | Lowest Global Shipping Charges

Bourns Surface Mount ZVHT Varistor 165 pF Capacitance, 1 A Clamping Current, 65 V Clamping Voltage, 39 V ZV25K0603300NIR1HT

Name: Bourns Surface Mount ZVHT Varistor 165 pF Capacitance, 1 A Clamping Current, 65 V Clamping Voltage, 39 V ZV25K0603300NIR1HT
Brand: BOURNS
SKU: 107421
Price: 0.09 USD
Availability: InStock



Category Varistor Brand BOURNS Condition New

Specifications

Country of Origin	Slovenia
Brand	Bourns
THICKNESS	0.95mm
Length	1.6mm
Model	ZV25K0603300NIR1HT
Depth	0.8mm
Packaging	Tape & Reel
Mount Type	Surface
Series	ZVHT
Energy Rating	0.1J
Maximum Operating Temperature	150°C
Capacitance	165pF
Minimum Operating Temperature	-55°C
Maximum dc Voltage	31V dc
Standards/Approvals	UL, RoHS
Package/Case	0603
Termination Style	Surface Mount
Maximum AC Voltage	25V ac
Clamping Voltage VC	65V
Clamping Current	1A
Maximum Surge Current	30A
Varistor Voltage	39 V

Key Features

Designed to protect sensitive electronic devices from high voltage surges in low voltage areas.
Features a compact 0603 package suitable for surface mount applications.
Provides a maximum AC voltage rating of 25 V and maximum DC voltage of 31 V.
Supports a maximum surge current of 30 A ensuring reliable transient suppression.
Operates within a temperature range from -55°C to 150°C for durability.
Energy rating of 0.1 J suitable for low energy transient absorption.
Compliant with UL and RoHS standards ensuring safety and environmental compatibility.
Manufactured in Slovenia maintaining high quality and consistency.

Product Description

The Bourns ZV25K0603300NIR1HT model is a surface mount varistor from the ZVHT series, engineered to deliver superior protection against transient voltage surges in electronic circuits. Featuring a capacitance of 165 pF and a clamping voltage of 65 V, this varistor is designed for applications requiring precise low voltage transient suppression.

Its compact 0603 package form factor with dimensions of length 1.6 mm, thickness 0.95 mm, and depth 0.8 mm makes it suitable for modern surface mount technology (SMT) assembly processes. The device supports a clamping current of 1 A and a maximum surge current rating of 30 A, enabling it to absorb significant energy spikes effectively.

Operating temperature ranges from -55°C up to 150°C ensure reliable performance under diverse environmental conditions. This varistor meets both UL and RoHS standards, confirming its compliance with industry safety and environmental regulations. It is manufactured in Slovenia with consistent quality control standards.

Applications span across industrial electronics, consumer electronics, instrumentation, and other sensitive equipment requiring transient voltage surge protection in low voltage electrical circuits. The ZVHT series is optimized for fast response and low sensitivity to provide efficient protection without compromising circuit performance.

Compact surface mount 0603 package suitable for high-density PCB layouts. Reliable transient voltage suppression up to 65 V clamping voltage. High surge current capacity of 30 A for robust protection. Wide operating temperature range (-55°C to 150°C) ensures durability.

Energy rating of 0.1 J for low-energy spike absorption. UL and RoHS compliant for safety and environmental standards. Manufactured in Slovenia ensuring high manufacturing quality. Explore a range of Varistors and transient voltage suppression components from Bourns and other industry-leading manufacturers at EnvMart.
